Coaxadapter BNC DeLOCK 65857

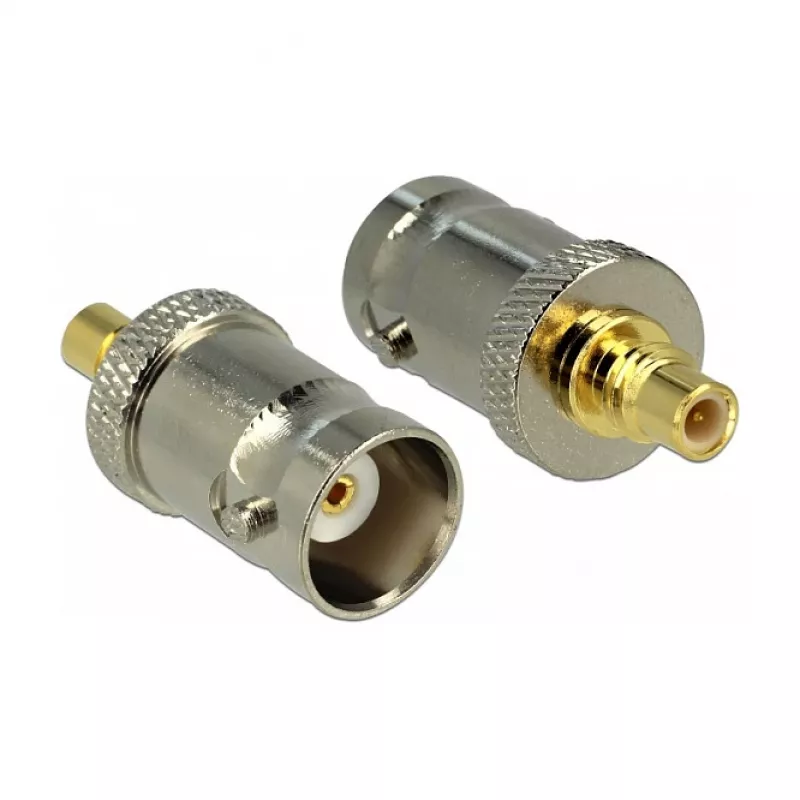

The DeLOCK 65857 is a compact coaxial adapter that connects radio frequency components. One end has an SMC connector and the other a BNC connector, offering a metallic-finish adapter suitable for use with devices that accept these coaxial interfaces. The adapter is supplied as a single unit and has a depth of 22.5 mm.

Advantages

The adapter provides a reliable mechanical and electrical connection between SMC and BNC interfaces, in a small metallic housing. Its compact depth makes it convenient for installations with limited space and for portable equipment, while the single-unit packaging simplifies handling and inventory.

Suitable for

• Connecting SMC-equipped RF devices to BNC-equipped equipment
• Laboratory test setups and measurement equipment
• Telecommunications and broadcast systems requiring SMC–BNC adaptation

Key specifications

• Brand: DELOCK
• Model / MPN: 65857
• EAN: 4043619658572
• Connector 1: SMC
• Connector 2: BNC
• Product colour: Metallic
• Depth: 22.5 mm
• Package quantity: 1 piece

How to use

Align the SMC and BNC connectors with the mating interfaces and push or screw them together according to the connector types until seated. Ensure connectors are clean and free of debris before mating. Use appropriate torque for any threaded portions to avoid damage. Disconnect by reversing the mating procedure, handling the connector bodies rather than pulling on the cable.

Recommendations

Use the adapter within its intended radio frequency application and avoid excessive mechanical stress. Inspect connectors for wear or contamination before use and store in a dry environment to maintain performance.
