Coaxiale connector F-type ShiverPeaks BS85010-R

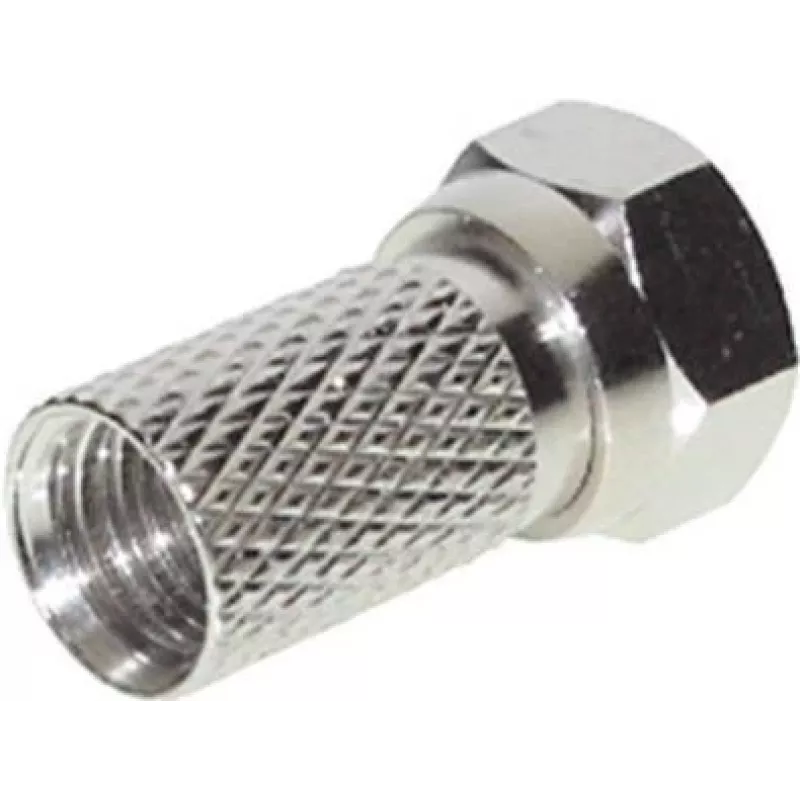

The ShiverPeaks BS85010-R is a high-quality F-type coaxial connector engineered to provide reliable RF connections for television, satellite and cable systems. This male F-type connector has a 7.2 mm diameter and is supplied as a single piece, offering a compact mechanical design that ensures consistent contact with standard coaxial cables. The construction focuses on stable signal transmission and mechanical durability suitable for installation and maintenance tasks.

Advantages

The connector combines a precisely sized 7.2 mm male interface with robust mechanical construction to deliver low-loss signal transfer and a secure fit. Its design supports repeated connections and disconnections without compromising contact integrity. The single-piece supply simplifies procurement for small installations or replacement needs.

Suitable for

• Connecting coaxial cables to televisions, set-top boxes and tuners
• Satellite and cable distribution networks where standard F-type male connectors are required
• Repairing or upgrading home and commercial RF installations
• Field service and maintenance tasks requiring a reliable male F connector

Key specifications

• Connector type: F-type, male
• Outer diameter (male): 7.2 mm
• Quantity: 1 piece per pack
• Application: RF/coaxial signal transmission for TV, satellite and cable
• Form factor: compact, single-piece connector

How to use

Prepare the coaxial cable by stripping the outer jacket, braid and dielectric to the dimensions appropriate for F-type terminations. Insert the cable conductor through the connector body and secure according to the connector type—crimp, screw or push-on method as applicable. Ensure the center conductor is centered and the outer contact makes firm contact with the cable braid. After assembly, check for a secure mechanical fit and verify signal reception or continuity with appropriate test equipment.

Recommendations

Use the connector with compatible coaxial cable types designed for F-type terminations and avoid over-tightening during installation to prevent deformation. For optimal RF performance, verify cable preparation and retain proper shielding continuity. Replace connectors showing corrosion or physical damage.
