Coaxkabel DeLOCK 0,1 m MHF U.FL/RG178

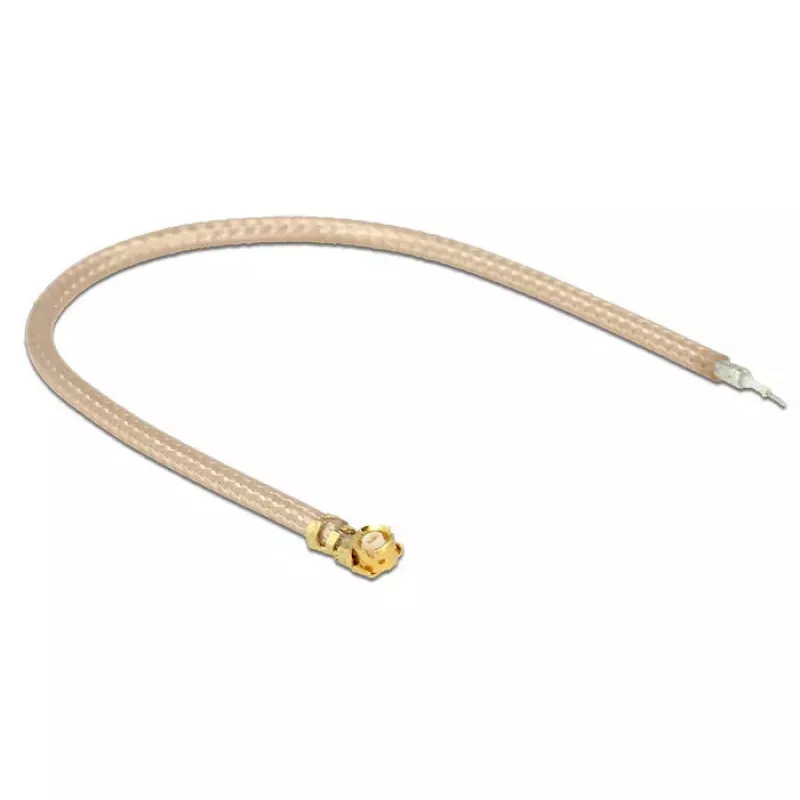

The DeLOCK 0.1m MHF U.FL/RG178 coaxial cable is designed to provide a compact, reliable RF connection between small PCB-mounted MHF (U.FL) sockets and devices using RG178 cabling. With a length of 0.1 m and transparent jacket for easy inspection of the internal conductor, this cable is suitable for high-frequency signal transmission in limited spaces and comes packaged in a polybag.

Advantages

The cable offers a short, flexible connection that preserves signal integrity for high-frequency applications. Its MHF (U.FL) connector ensures compatibility with common miniaturized antenna sockets on transceiver modules and PCB antennas, while the RG178 side provides a standard coaxial interface. The transparent jacket helps visual verification during installation and maintenance.

Suitable for

Key specifications

How to use

Align the MHF (U.FL) connector carefully with the PCB socket and press down until it clicks into place, avoiding excessive force. Route the RG178 end to the device or adapter and secure it according to the receiving connector type. Ensure connectors are clean and free of debris before making the connection to maintain signal quality.

Recommendations

Use the cable for short-distance RF interconnections only; avoid repeated mating cycles which can wear the delicate MHF (U.FL) connector. Maintain gentle cable bends and secure routing to prevent strain on soldered PCB sockets.
