Combischroevendraaier Gedore 6001560

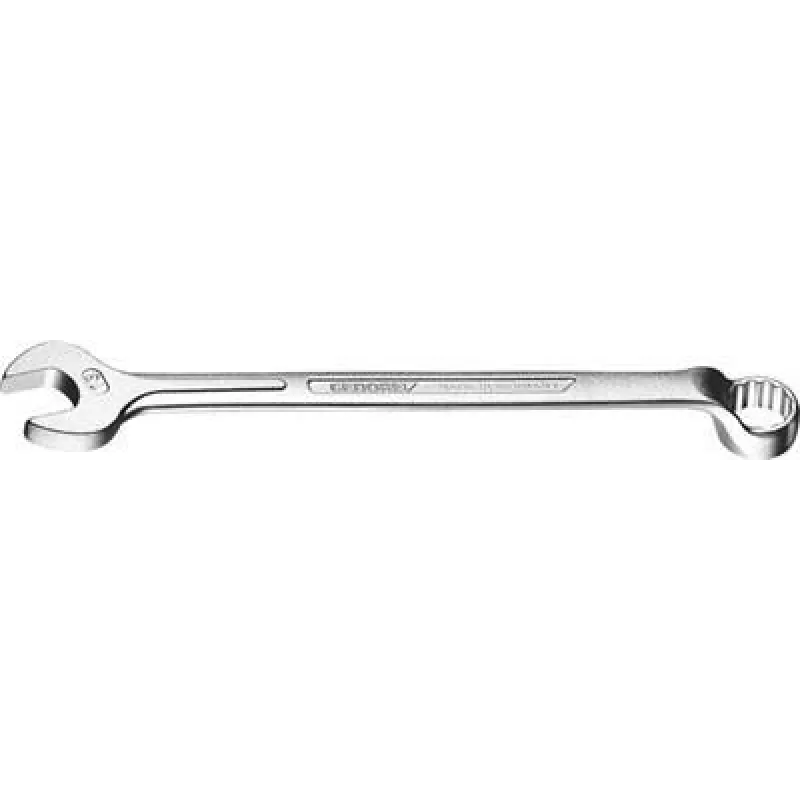

The Gedore 6001560 combination wrench is a chrome-plated hand tool made from Gedore vanadium steel (31CrV3), designed for tightening and loosening nuts and bolts. The wrench conforms to DIN 3113 Form B and ISO standards ISO 3318 and ISO 7738, and features a 10° offset ring end with an extra-strong but thin-walled ring. The tool has a length profile providing a 75 mm depth and 40 mm height and weighs 128 g. Sizes 5 and 5.5 mm are supplied with a hexagon ring profile, while sizes from 6 mm and up use a UD profile. A noted variant marked with an asterisk is not standardized.

Advantages

The combination of 31CrV3 vanadium steel and chrome plating gives the wrench good strength and corrosion resistance while maintaining a relatively thin ring wall for access in confined spaces. The 10° offset ring improves access to fasteners at shallow angles. Conformance to DIN and ISO standards ensures consistent dimensions and compatibility with standard fasteners. The available hexagon and UD ring profiles accommodate different size ranges for a secure fit.

Suitable for

Key specifications

How to use

Select the wrench size matching the nut or bolt head. Position the open end or ring end on the fastener, ensuring full seating to avoid rounding. Use steady, controlled force and, when possible, apply torque from the wrench handle aligned with the fastener axis. The 10° offset ring end can be used to access fasteners with limited clearance; flip the wrench to reposition the offset as needed. Inspect the tool for damage before use and avoid using the wrench as a hammer.
