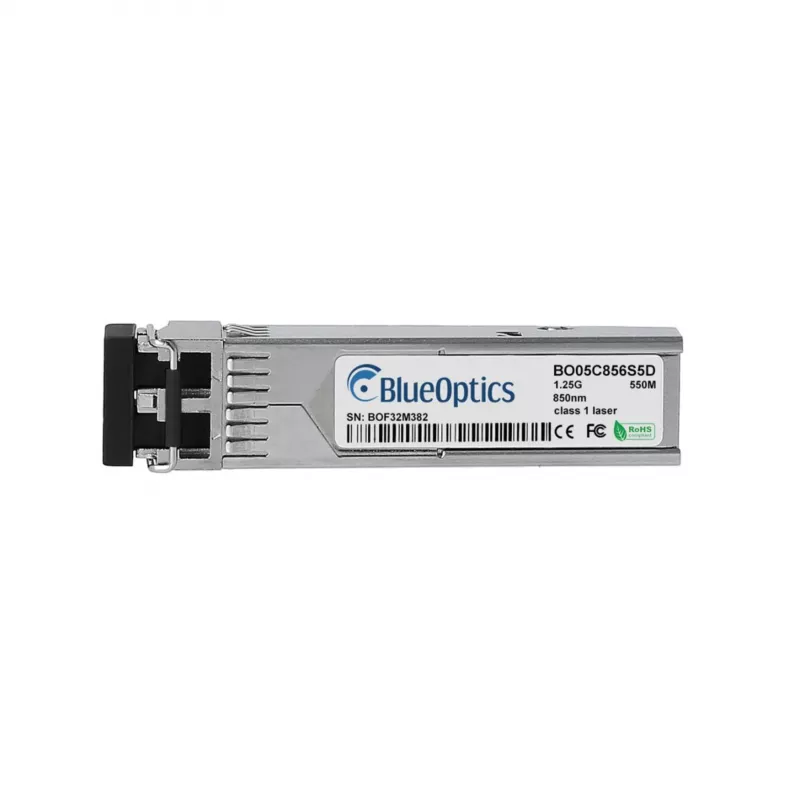

Compatibele Citrix EW3A0000234 BlueOptics BO05C856S5D SFP-transceiver, LC Duplex, 1000BASE-SX, multimode

The BlueOptics BO05C856S5D is a high-performance SFP transceiver designed for compatibility with Citrix EW3A0000234 networking equipment. It delivers reliable Gigabit Ethernet connectivity over multimode fiber, making it an ideal solution for data center and enterprise network deployments.

Advantages

This transceiver offers hot-pluggable functionality, low power consumption under 1.0 W, and full DDM/DOM support for real-time monitoring of optical parameters. Its rugged metal housing ensures durability, while compliance with RoHS, CE, and FCC standards guarantees environmental and safety compliance.

Suitable for

• Data networking and optical network applications
• Gigabit Ethernet connections over multimode fiber
• Replacing or expanding Citrix EW3A0000234 compatible systems

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 850 nm
• Max Distance: 550 m on OM2 multimode fiber
• Connector: LC Duplex
• Fiber Type: Multimode (MMF)
• Standard: IEEE 802.3z 1000BASE-SX
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C
• Hot-Swappable: Yes
• Power Consumption: <1.0 W
• Transmitter: VCSEL
• Receiver: PIN

Recommendations

For optimal performance, use with OM2 or OM3 multimode fiber cables and ensure proper insertion into an SFP cage. This transceiver is a cost-effective alternative to OEM modules, offering identical functionality and reliability.
