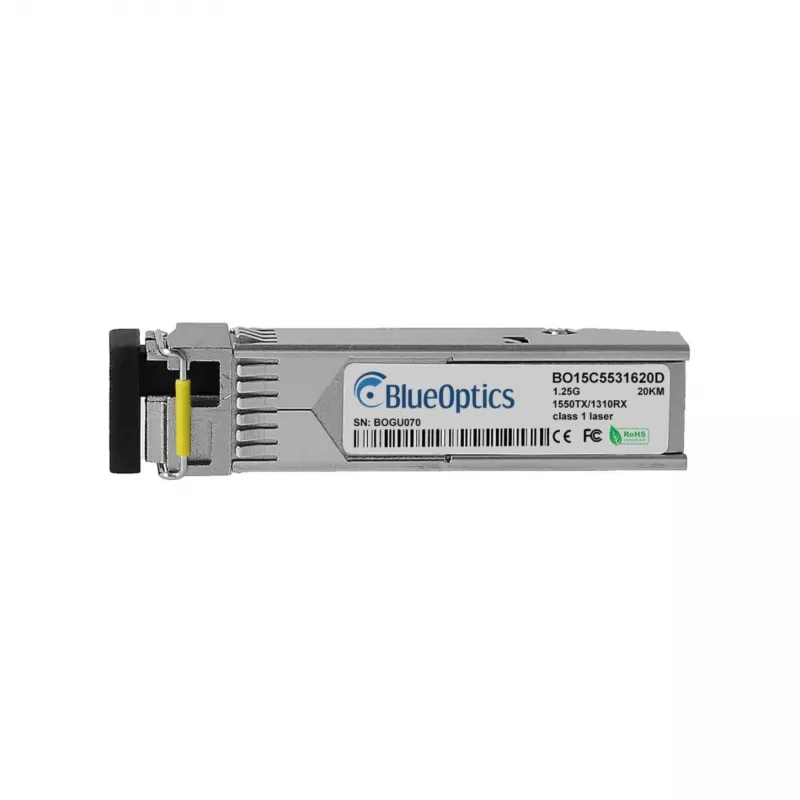

Compatibele TP-Link SFP-BXD53-20KM BlueOptics BO15C5531620D SFP-transceiver, LC Simplex, 1000BASE-BX-D, 20 km

The BlueOptics BO15C5531620D is a high-performance SFP transceiver designed to be fully compatible with TP-Link SFP-BXD53-20KM equipment. It enables reliable Gigabit Ethernet connectivity over single-mode fiber at distances up to 20 km. This BiDi (Bi-Directional) transceiver uses a single LC simplex connector, transmitting at 1550 nm and receiving at 1310 nm, effectively doubling fiber utilization. Ideal for service providers, enterprises, and data centers requiring cost-effective, long-reach links.

Advantages

Cost-effective alternative to OEM modules with guaranteed compatibility. Hot-pluggable design simplifies installation and maintenance. Digital Diagnostic Monitoring (DDM) provides real-time performance data. Low power consumption (<1 W) reduces energy costs. MSA compliant for seamless integration.

Suitable for

• Gigabit Ethernet networks (1000BASE-BX-D)
• Point-to-point fiber links up to 20 km
• FTTx, WAN, and enterprise access networks
• TP-Link switches, routers, and media converters

Key specifications

• Form Factor: SFP
• Data Rate: 1.25 Gbps
• Standard: 1000BASE-BX-D
• Wavelength (Tx): 1550 nm
• Wavelength (Rx): 1310 nm
• Max Distance: 20 km
• Fiber Type: Single-Mode (OS2)
• Connector: LC Simplex
• DDM/DOM: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1 W
• Laser Type: DFB
• Receiver Type: PIN
• Hot-Pluggable: Yes
• Compliance: MSA, RoHS, CE, FCC

Recommendations

For optimal performance, use with single-mode fiber (OS1/OS2) and ensure proper cleaning of LC connectors. Compatible with TP-Link devices supporting SFP-BXD53-20KM. Verify device compatibility before purchase.
