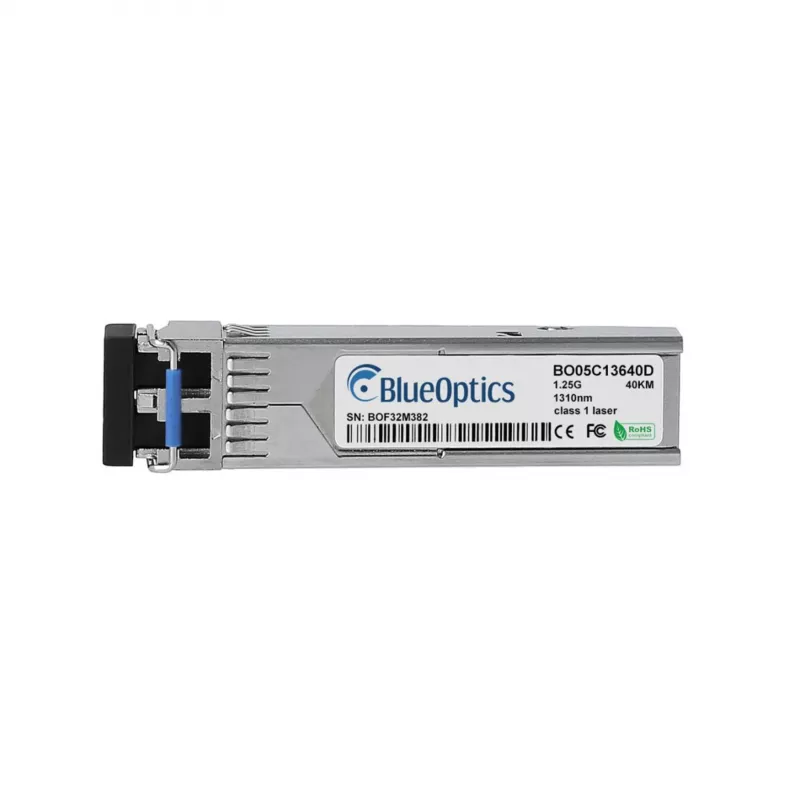

Compatible Synology SFP-1G-LH BlueOptics BO05C13640D SFP-transceiver, LC Duplex, 1000BASE-LH, single-mode, 40 km

The BlueOptics BO05C13640D is a high-performance SFP transceiver designed for compatibility with Synology SFP-1G-LH equipment. It delivers reliable Gigabit Ethernet connectivity over single-mode fiber, supporting distances up to 40 km. This hot-swappable module features LC duplex connectors and is ideal for long-haul fiber optic networks.

Advantages

Cost-effective alternative to OEM modules with full compatibility and performance. Supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of optical parameters. Low power consumption (<1.0 W) and robust metal housing with EMI shielding ensure stable operation in demanding environments.

Suitable for

• Gigabit Ethernet networks requiring long-distance single-mode fiber connections
• Synology NAS and network devices with SFP slots
• Enterprise and data center fiber optic infrastructure

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 1310 nm
• Max Cable Distance: 40 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Standard: IEEE 802.3z 1000BASE-LH
• Compatibility: Synology SFP-1G-LH
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1.0 W
• Hot-Swappable: Yes
• Transmitter Type: DFB Laser
• Receiver Type: PIN Photo Detector
• Voltage: 3.3 V
• Compliance: RoHS, CE, FCC
• MTBF: >500,000 hours
• Housing Material: Metal (EMI Shielding)

Recommendations

For optimal performance, use with single-mode fiber optic cables and ensure proper insertion into SFP slot. Compatible with Synology SFP-1G-LH and other standard SFP interfaces.
