Computerbehuizing Darkflash DB330M Mesh ATX wit

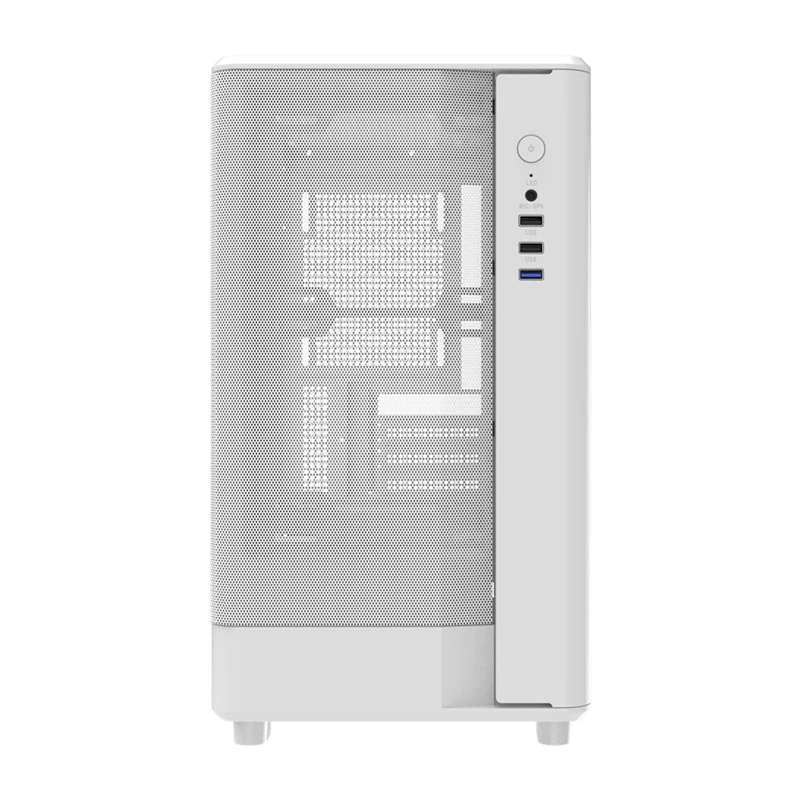

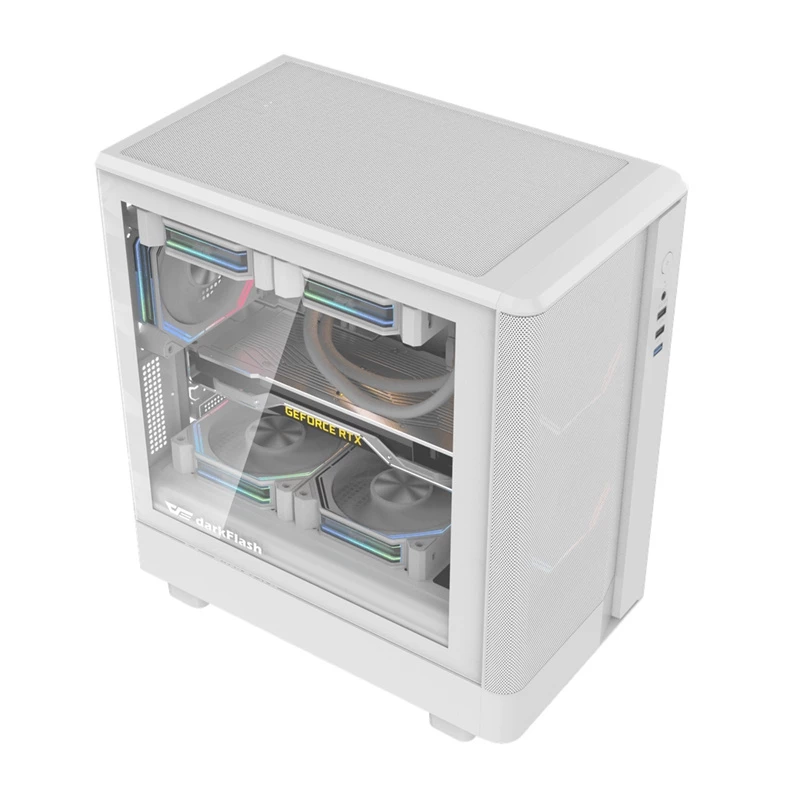

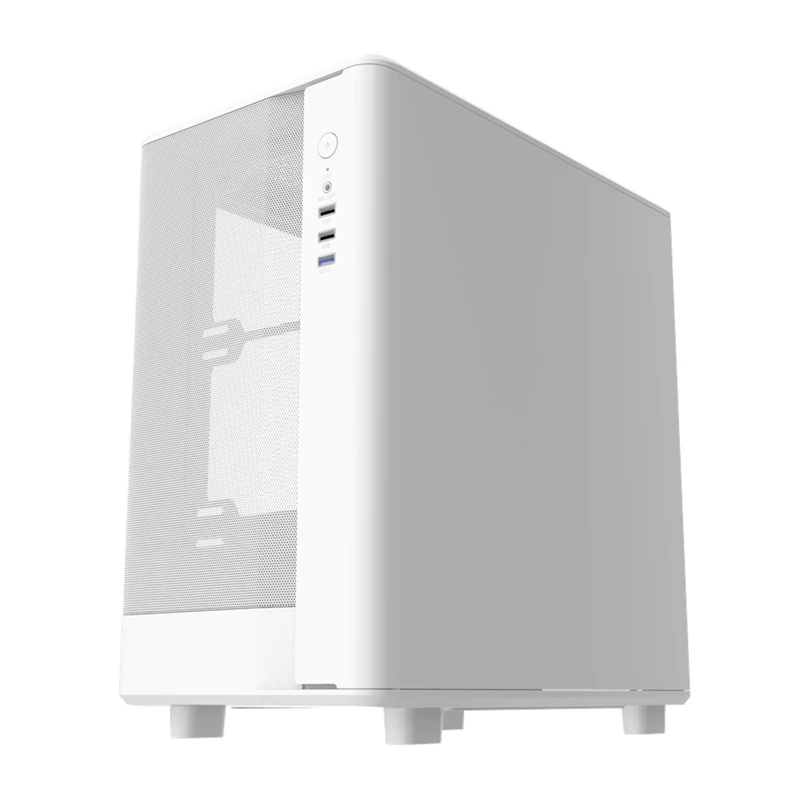

Darkflash DB330M Mesh is a compact mid-tower computer case in white designed for M-ATX and ITX motherboards. Its dimensions (368 × 218 × 400 mm) accommodate a graphics card up to 305 mm long and a CPU cooler up to 180 mm high. The enclosure is built on a 0.5 mm SPCC steel frame and features a tempered glass side panel and a mesh front panel to support efficient air or liquid cooling.

Advantages

The mesh front panel and additional vents on the top and bottom improve airflow while acting as dust barriers. The tempered glass side panel is removable without tools to allow easy access and to display internal components. The case supports a top-mounted 240 mm radiator and multiple fan positions to create a vertical airflow channel that helps dissipate heat effectively. A bottom-mounted ATX power supply bay and dedicated cable routing space provide flexible component installation and tidy cable management.

Suitable for

• Compact M-ATX or ITX gaming PC builds
• Home or office desktop systems requiring efficient airflow
• Small form-factor workstations with moderate cooling needs

Key specifications

• Form factor: Midi tower compatible with M-ATX and ITX motherboards
• Material: 0.5 mm SPCC steel with tempered glass side panel
• Exterior color: White
• External dimensions: 368 × 218 × 400 mm (depth × width × height)
• Maximum GPU length: 305 mm
• Maximum CPU cooler height: 180 mm
• Power supply location: Bottom-mounted ATX (max length 210 mm)
• Drive bays: 3.5" HDD ×2, 2.5" SSD ×1
• Expansion slots: 4
• Fan support: Up to 7 fans — Front: 120 mm ×2; Bottom: 120 mm ×2; Top: 120/140 mm ×2; Rear: 120 mm ×1
• Liquid cooling support: Top radiator up to 240 mm
• Front I/O: USB 3.0 ×1, USB 2.0 ×2, HD Audio, Power button
• Weight: 3.8 kg

How to use

Install an M-ATX or ITX motherboard and secure the power supply in the bottom bay. Fit storage drives into the designated 3.5" or 2.5" bays and route cables through the rear cable management area. Mount fans according to your cooling layout — recommended placement is intake at the front and bottom with exhaust at the top and rear — and install a top 240 mm radiator if using an AIO liquid cooler. The tempered glass panel can be removed without tools for component access and maintenance.

Recommendations

For balanced airflow and lower internal temperatures, configure intake fans at the front and bottom and use the top and rear positions for exhaust. Use filtered intake positions to reduce dust buildup and choose fan sizes according to the top mounting options (120 mm or 140 mm) to maximize cooling efficiency.
