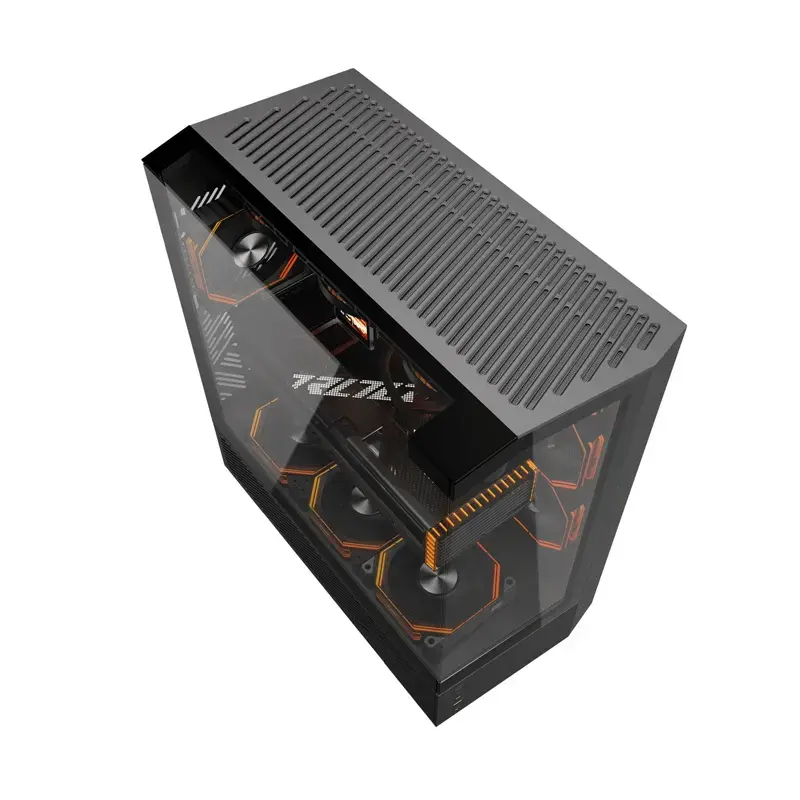

Computerbehuizing Darkflash DY460 ATX zwart

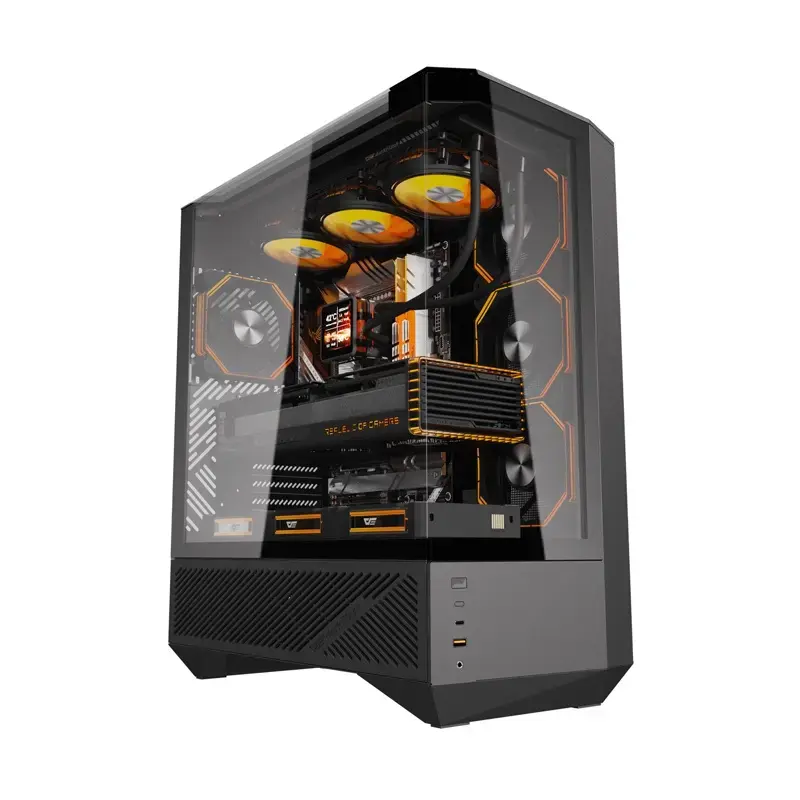

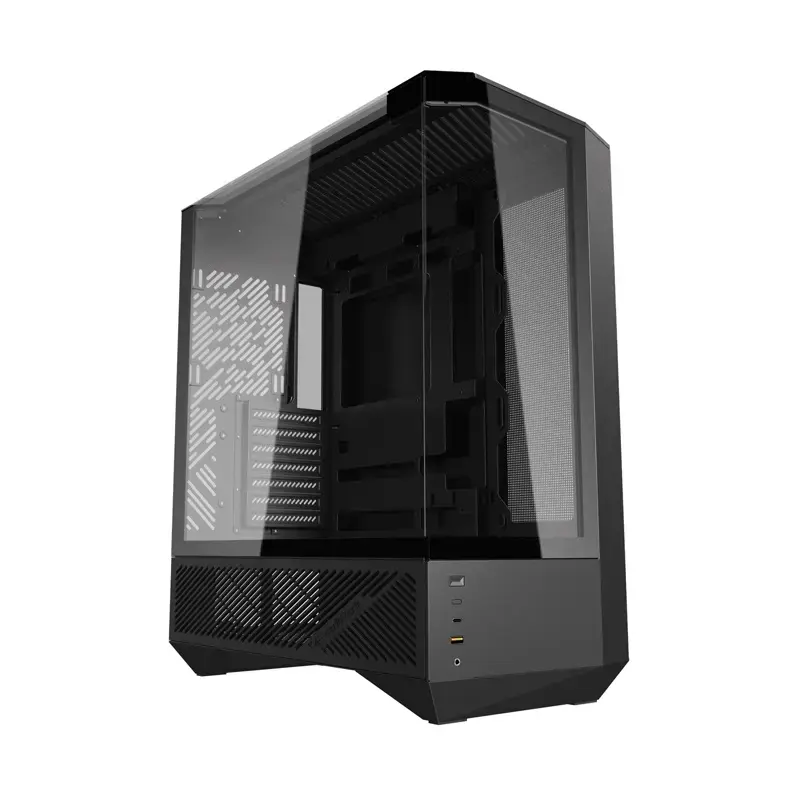

The Darkflash DY460 computer case combines tempered glass panels and a vertical dual-chamber layout to provide a spacious, well-ventilated enclosure for ATX, M-ATX and ITX systems. With compact external dimensions (452 x 238 x 541 mm) it supports graphics cards up to 400 mm (horizontal) or 385 mm (vertical with optional bracket), CPU coolers up to 185 mm high, and includes a USB-C 3.2 Gen 2 port and four preinstalled ARGB fans.

Advantages

The case offers extensive cooling capacity with space for up to ten 120 mm fans and radiator support up to 360 mm on top and 120/140 mm at the rear. Tempered glass on three sides provides a near-330° view of installed components. The chassis is built from 0.8 mm SPCC steel and includes dust protection and practical front-panel connectors (USB-C 3.2 Gen 2, USB-A 3.0, HD Audio) plus Power and Reset buttons.

Suitable for

• Gaming PC builds with mid-to-high-end GPUs
• Workstations requiring strong airflow and radiator support
• Showcase systems using ARGB/RGB components
• Compact ATX or M-ATX builds with multiple storage drives

Key specifications

• Manufacturer: Darkflash
• Model: DY460
• Case type: Big Tower
• Side panels: Tempered glass (three-sided)
• Motherboard support: ATX, M-ATX, ITX
• PSU position: Bottom-mount ATX
• Drive bays: 3.5" HDD x2, 2.5" SSD x1
• Expansion slots: 7
• Max GPU length: 400 mm (horizontal) / 385 mm (vertical, optional accessories)
• Max CPU cooler height: 185 mm
• Max fans supported: 10 (120 mm)
• Included fans: 4 × ARGB

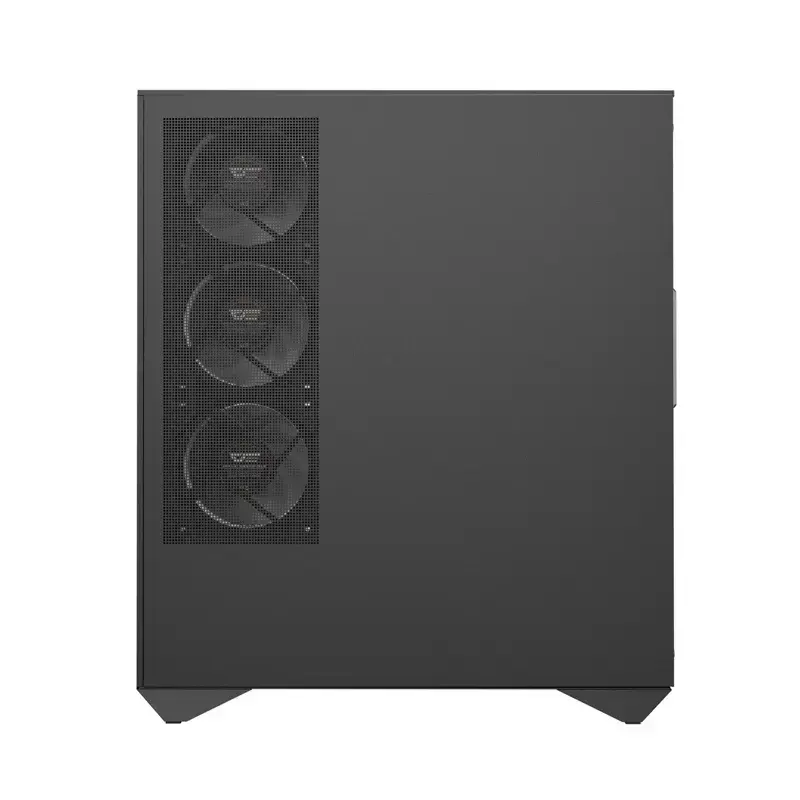

• Fan mounting: Side 120×3, Rear 120×1, Top 120×3, Bottom 120×3
• Water cooling support: Top 360 mm; Rear 120/140 mm

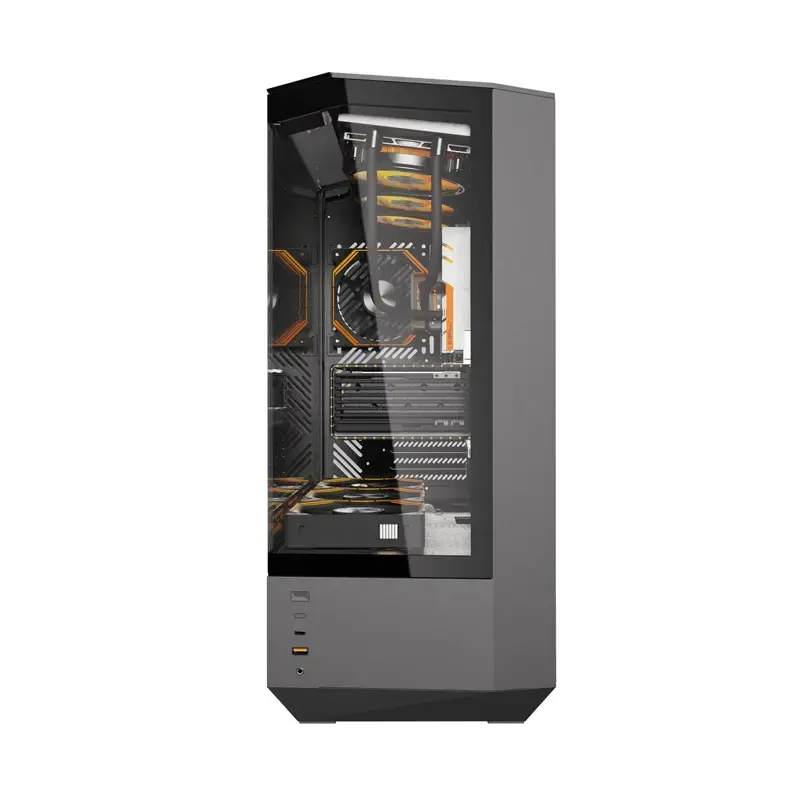

• Front connectors: USB-C 3.2 Gen 2 x1, USB-A 3.0 x1, HD Audio
• Material: 0.8 mm SPCC steel
• Color: Black
• Dimensions (H×W×D): 541 × 238 × 452 mm

How to use

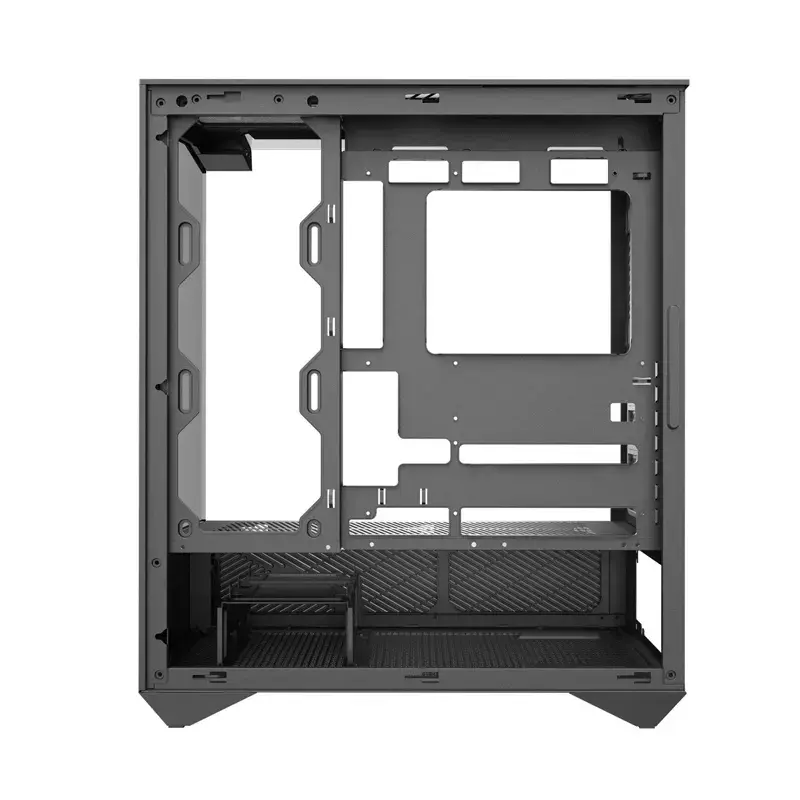

Install the chosen motherboard (ATX, M-ATX or ITX) using the rear-mount layout to simplify cable routing. Fit the power supply in the bottom compartment, mount drives into the 3.5" or 2.5" bays, and install the GPU either horizontally (up to 400 mm) or vertically (up to 385 mm with optional bracket). Configure cooling by placing up to ten 120 mm fans in the available mounts and install radiators on the top (up to 360 mm) or rear (120/140 mm) as needed. Connect front-panel USB-C/USB-A and HD Audio to the motherboard headers and use the Power and Reset buttons on the front panel.

Recommendations

For best thermal performance, combine front/side intake fans with top/rear exhaust fans and keep cable routing tidy behind the motherboard tray. Use the included ARGB fans with a compatible controller or motherboard ARGB header to synchronise lighting. If planning vertical GPU mounting, obtain the appropriate bracket separately and verify clearance with your chosen GPU and cooler.
