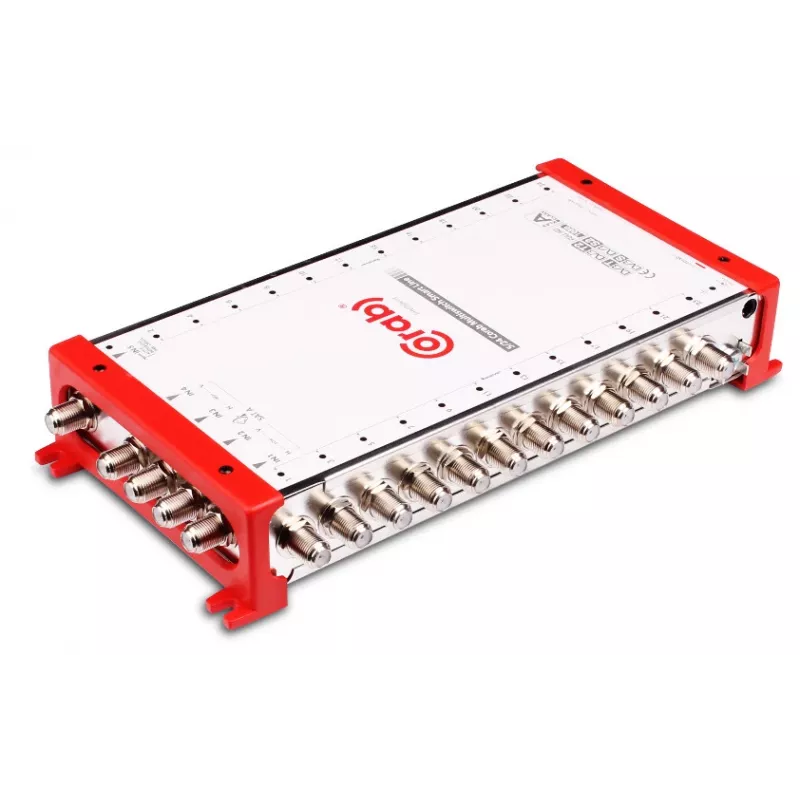

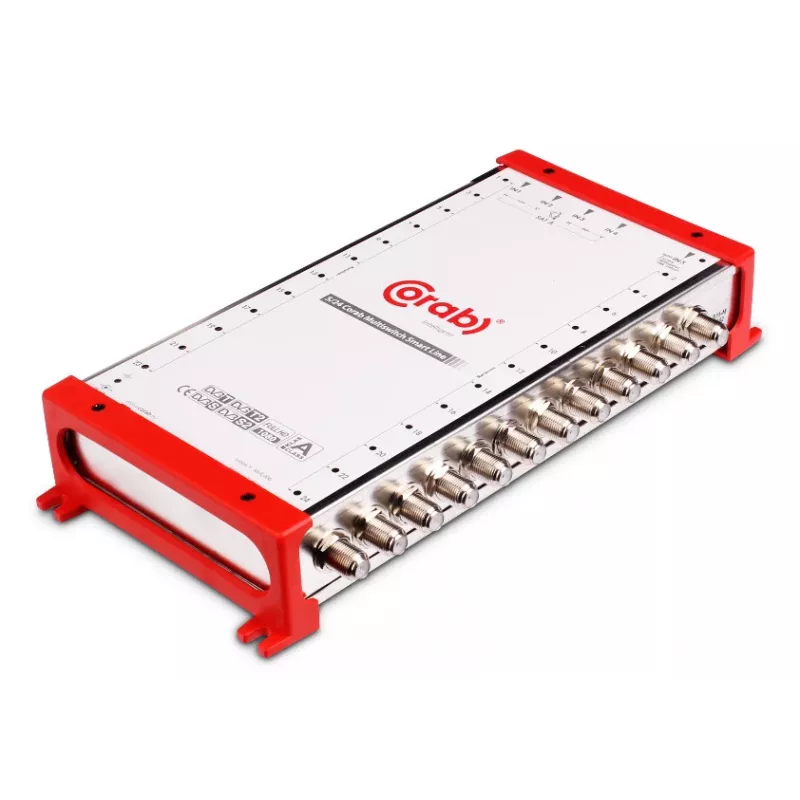

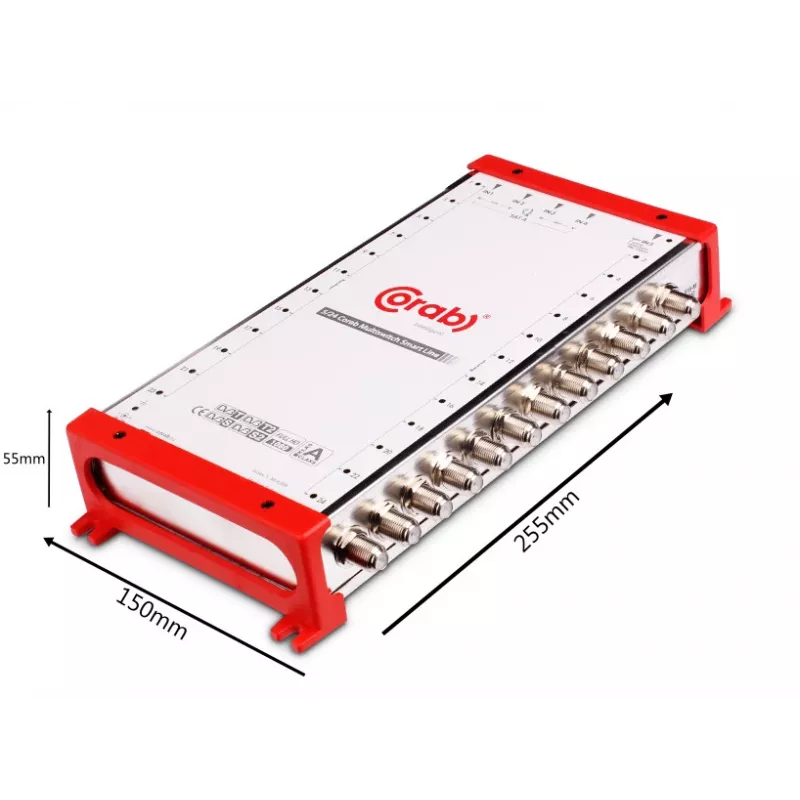

CORAB MULTISWITCH SMART LINE 5/24

The CORAB MULTISWITCH SMART LINE 5/24 is a high-performance multiswitch designed for distributing satellite and terrestrial TV signals to up to 24 subscribers. Ideal for residential and commercial installations, it ensures reliable signal distribution with minimal loss.

Advantages

This multiswitch offers exceptional signal isolation and supports DiSEqC 2.0 switching, making it compatible with modern satellite systems. Its built-in power supply simplifies installation, and the compact design allows for flexible mounting.

Suitable for

• Multi-dwelling units (apartments, hotels)
• Office buildings requiring multiple TV outlets
• Satellite TV distribution systems

Key specifications

• Number of SAT IF Inputs: 4
• Number of Terrestrial Inputs: 1
• Number of Subscriber Outputs: 24
• SAT IF Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• SAT IF Gain: 0 dB
• Terrestrial Gain: -2 dB
• Max SAT Output Level: 95 dBµV
• Max Terrestrial Output Level: 85 dBµV
• Isolation (SAT-SAT, SAT-TER, Output-Output): >25 dB
• LNB Power Supply: 18V DC, max 500mA
• Switching Commands: DiSEqC 2.0 (compatible with 1.0), 13/18V, 0/22kHz
• Connectors: F-type
• Power Supply: Built-in 230V AC
• Power Consumption: 5 W
• Operating Temperature: -20 to +50 °C

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This multiswitch is compatible with most satellite receivers and LNBs.
