CPU-koeler Akasa SOHO H6L RGB wit – low-profile koellichaam met RGB-ventilator, compatibel met Mini-ITX compacte systemen

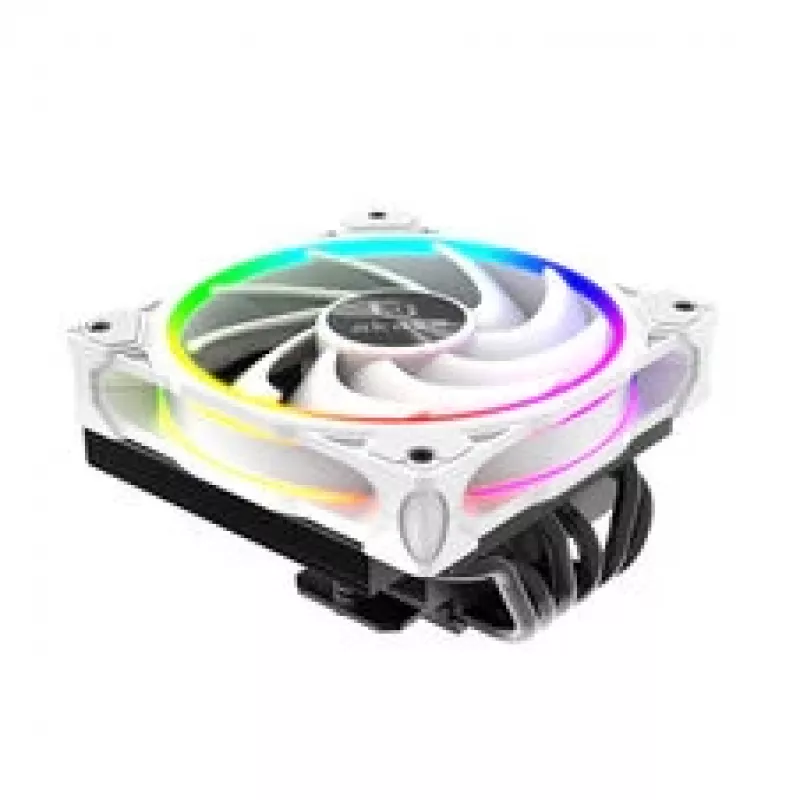

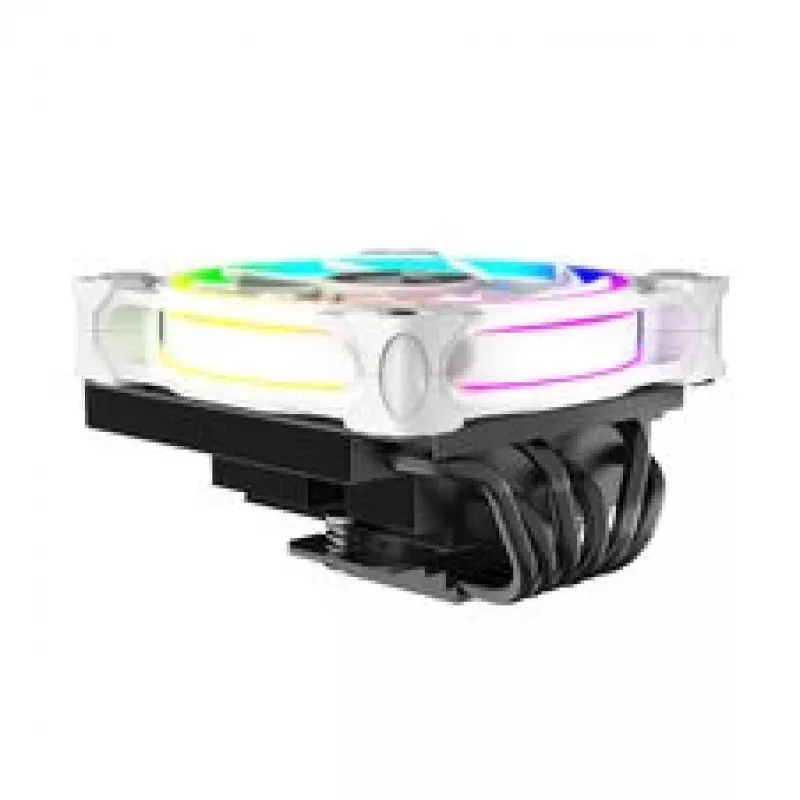

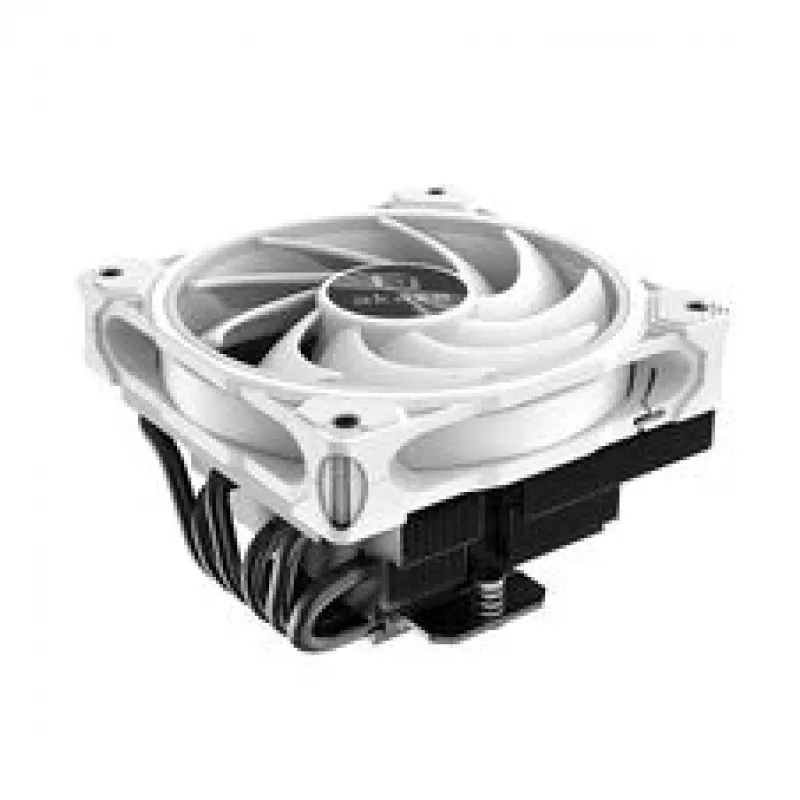

Akasa SOHO H6L RGB white is a low-profile CPU cooler engineered for small form-factor and mini-ITX systems. Measuring 120 × 120 × 77.6 mm and weighing 565 g, the cooler combines a compact heatsink with a 120 mm aRGB fan and a white finish to deliver effective heat dissipation where tall tower coolers cannot be installed. The cooler uses copper heat pipes mated to black aluminum fins to transfer and spread processor heat, and it supports modern Intel and AMD desktop sockets for broad compatibility.

Advantages

The SOHO H6L RGB white offers a balance of cooling performance and low-profile design, with a specified thermal capacity up to 160 W TDP. Its 120 mm aRGB fan features an advanced crescent blade design to increase airflow while keeping acoustic levels low (14.2–31.8 dB(A)). Fan speed is PWM-controlled from 500 to 2000 rpm to match cooling demand. Addressable RGB lighting is supported via a 3-pin connector and is compatible with major motherboard RGB ecosystems for synchronized lighting control.

Suitable for

• Mini-ITX gaming and home theater PCs where internal height is limited
• Compact workstations and small form-factor office systems
• Builds that require addressable RGB lighting in a low-profile cooler

Key specifications

• Form factor: low-profile heatsink with single 120×120×26.5 mm fan
• Height: 77.6 mm
• TDP rating: 160 W
• Fan speed range: 500–2000 rpm (PWM)
• Maximum airflow: 52.91 CFM
• Maximum air pressure: 1.75 mm-H2O
• Acoustic level: 14.2–31.8 dB(A)
• Fan voltage: DC 12 V; fan connector: 4-pin PWM
• LED voltage and connector: DC 5 V, 3-pin addressable RGB

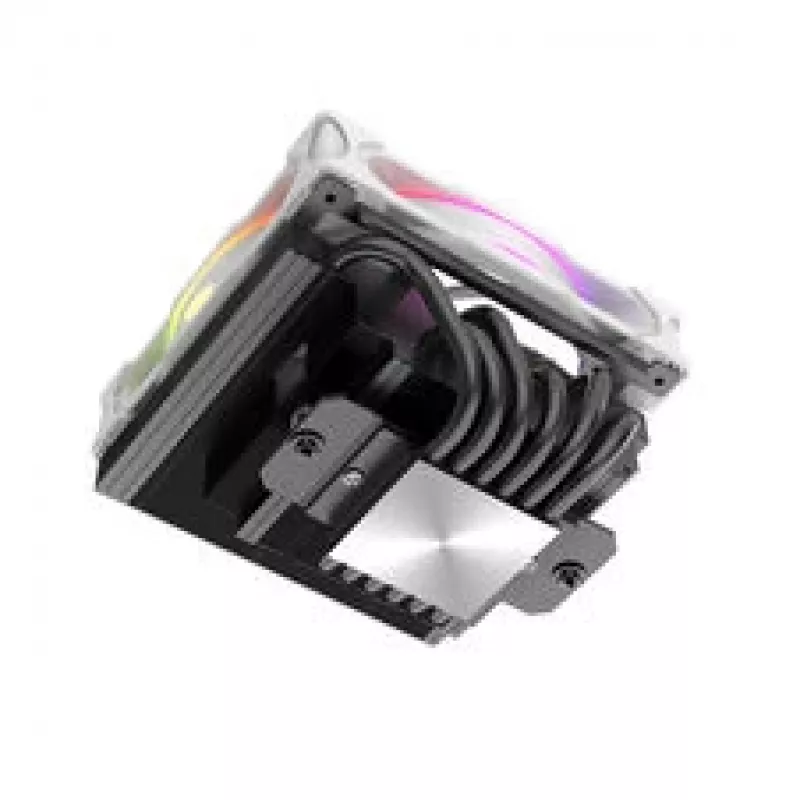

• Construction: copper heat pipes with aluminum fin stack
• Dimensions (L×W×H): 120 × 120 × 77.6 mm
• Weight: 565 g
• Compatible RGB software: ASUS Aura, ASRock Polychrome, GIGABYTE RGB Fusion, MSI Mystic Light, Razer Chroma
• Processor socket compatibility: Intel LGA115x / LGA1200 / LGA1700 / LGA1851; AMD AM4 / AM5
• Warranty period: 2 years

How to use

Install the Akasa SOHO H6L RGB white on a compatible motherboard following the mounting instructions supplied by the manufacturer. Apply a thin, even layer of thermal interface material to the CPU before seating the cooler. Secure the cooler with the provided brackets and fasteners to ensure even contact between the base and the processor heat spreader. Connect the 4-pin PWM fan header to the motherboard fan header for speed control, and connect the 3-pin addressable RGB header to a compatible ARGB header or controller to enable lighting functions. Verify clearance with memory modules and adjacent components prior to final assembly.

Recommendations

For optimal performance in compact builds, enable PWM fan control in the motherboard BIOS to allow automatic speed adjustments based on CPU temperature. Use compatible motherboard RGB software to control lighting effects; if the motherboard lacks a 3-pin addressable header, use an external ARGB controller. Periodically clean the fan and fin stack to maintain airflow and thermal performance, especially in dust-prone environments.
