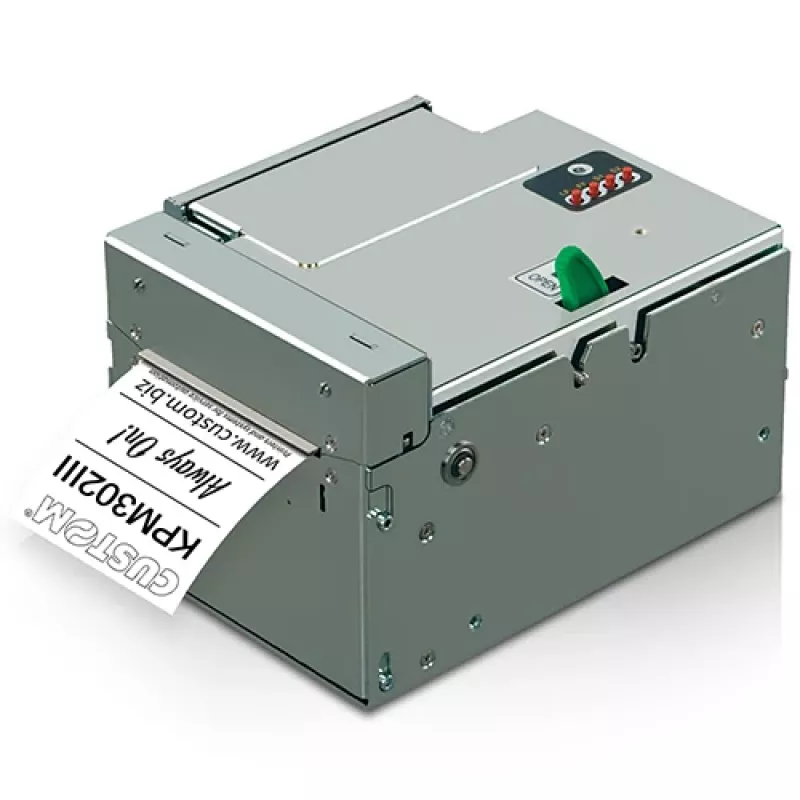

Custom Group Custom KPM302III - bonprinter - thermotransfer - rol (8,25 cm)

Printing receipts and labels on plain paper often means fading prints, expensive thermal paper, or limited connectivity. The Custom Group KPM302III solves these problems with reliable thermal transfer technology, producing durable, smudge-resistant output on standard paper rolls. Its 203 dpi resolution and fast 200 mm/s speed keep queues moving, while USB, RS232, and Ethernet interfaces fit seamlessly into any POS or back-office setup.

Who is it for

Retailers, hospitality venues, and logistics operations needing a robust receipt or label printer that works with existing systems. It suits pharmacies, supermarkets, and warehouses where clear, long-lasting prints are essential for compliance or customer records.

Main features

• Thermal transfer printing on 82.5 mm paper rolls, up to 180 mm diameter
• High-speed output at 200 mm/s with 203 dpi resolution for crisp text and barcodes
• Automatic cutter with partial or full cut, rated for 1,000,000 cuts
• Triple interface: USB, RS232 serial, and Ethernet for flexible installation
• Supports 1D and 2D barcodes including QR Code, PDF417, and Data Matrix
• Long-life print head (100 km) and robust sensors for paper end, near end, black mark, head temperature, and cover open
• Compact design with horizontal or vertical mounting options

Specifications

• Print technology: Thermal Transfer
• Resolution: 203 dpi (8 dots/mm)
• Speed: Up to 200 mm/s
• Media width: 82.5 mm
• Roll diameter: Up to 180 mm
• Paper thickness: 63 - 85 µm
• Interfaces: USB, RS232, Ethernet
• Emulation: ESC/POS, Custom/POS
• Barcodes: 1D (UPC-A, UPC-E, EAN13, EAN8, Code39, ITF, CODABAR, Code93, Code128, Code32), 2D (PDF417, QR Code, Data Matrix, Aztec)
• Power: 24 VDC
• Operating temperature: 0°C to 50°C
• OS support: Windows, Linux, Android, iOS via SDKs

Tips

For best results, use high-quality thermal transfer ribbons matched to your paper type. Clean the print head regularly with isopropyl alcohol to extend its 100 km life. When mounting vertically, ensure the paper path is unobstructed to avoid jams.
