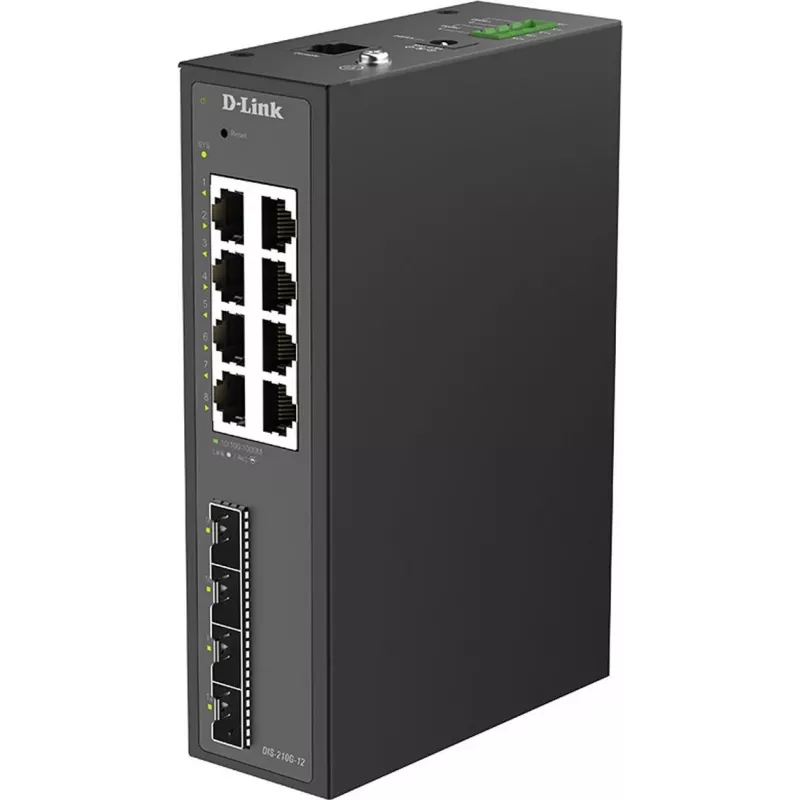

D-Link DIS-210G-12 smart managed industriële switch - 8 Gigabit-poorten + 4 SFP-sleuven

The D-Link DIS-210G-12 is a robust Smart Managed Layer 2 Industrial Switch designed for harsh environments. With 8 Gigabit Ethernet ports and 4 SFP slots, it delivers reliable connectivity for industrial automation, surveillance, and outdoor networks. Its fanless, IP30-rated housing and wide operating temperature range (-40 to 75°C) ensure stable performance in extreme conditions.

Advantages

This switch offers advanced Layer 2 management features including VLAN, QoS, and security protocols, making it ideal for critical infrastructure. Redundant power input (12-58 V DC) and DIN-rail mounting provide flexibility and uptime. The fanless design reduces noise and maintenance, while the 24 Gbps switching capacity handles high-bandwidth applications seamlessly.

Suitable for

• Industrial automation and control systems
• IP surveillance and video monitoring
• Smart city and outdoor networking
• Transportation and utility networks

Key specifications

• 8 x 10/100/1000BASE-T Gigabit Ethernet ports
• 4 x 100/1000BASE-X SFP slots
• Switching capacity: 24 Gbps
• Forwarding rate: 17.86 Mpps
• MAC address table: 8K entries
• Jumbo frame support: up to 9 KB
• VLAN support: 802.1Q, port-based, GVRP, up to 256 static VLANs
• QoS: 8 queues per port, WRR/SPQ/WFQ
• Security: port security, storm control, DHCP server screening, ARP spoofing prevention, IP-MAC-port binding, ACL
• Management: Web GUI, CLI (Telnet/SSH), SNMP v1/v2c/v3, RMON, D-View 7
• Industrial: fanless, IP30, DIN-rail/wall mount, redundant power input
• Operating temperature: -40 to 75°C
• Power input: 12-58 V DC
• MTBF: >1,000,000 hours
• Power consumption: max 10.3 W

Recommendations

For maximum reliability, pair with D-Link industrial SFP modules and a redundant power supply. Ideal for mission-critical networks requiring high availability and security.
