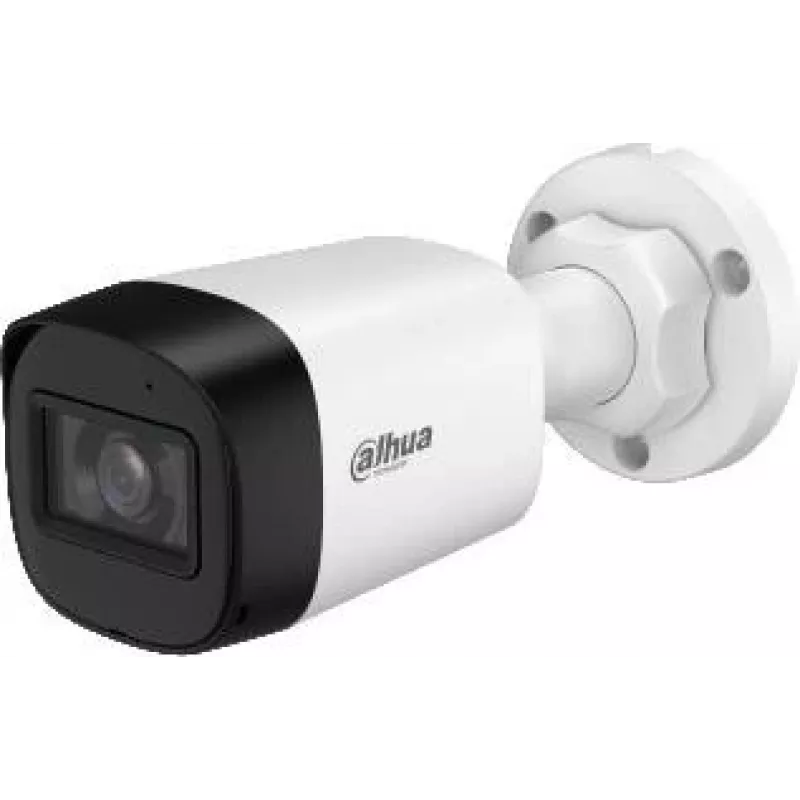

DAHUA HAC-HFW1500RL-0280B-S3-DIP 5MP IR bulletcamera, 2,8mm vast brandpunt, IP67, 12V DC

The DAHUA HAC-HFW1500RL-0280B-S3-DIP is a high-performance 5MP IR bullet camera designed for reliable outdoor surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 5MP resolution (2592x1944) at up to 20fps. The 2.8mm fixed lens provides a wide 98° horizontal field of view, ideal for monitoring entrances, parking lots, and perimeters. With smart IR technology, it offers up to 20m (65ft) of night vision, ensuring clear images even in complete darkness. The camera supports switchable video output (CVI/TVI/AHD/CVBS) for compatibility with various DVRs. Its IP67-rated housing protects against dust and water, making it suitable for harsh outdoor environments. Power is supplied via 12V DC, with a maximum consumption of only 3.7W.

Advantages

This camera combines high-resolution imaging with robust construction and easy installation. The 2.8mm lens captures wide-angle views, reducing the number of cameras needed. The IR distance of 20m ensures round-the-clock monitoring. DWDR and 2D NR enhance image quality in challenging lighting conditions. The metal front cover and plastic body offer durability without excessive weight.

Suitable for

• Outdoor surveillance of residential properties
• Monitoring commercial premises like shops and offices
• Perimeter security for warehouses and parking areas
• Integration with existing HD-CVI/TVI/AHD systems

Key specifications

• Image Sensor: 1/2.7" CMOS
• Resolution: 5MP (2592x1944) at 20fps
• Lens: 2.8mm fixed, H: 98°
• IR Distance: Up to 20m (65ft)
• Video Output: CVI/TVI/AHD/CVBS switchable
• Day/Night: Auto (ICR)
• WDR: DWDR
• Noise Reduction: 2D NR
• Min. Illumination: 0.005 Lux (Color), 0 Lux (IR on)
• Ingress Protection: IP67
• Power: 12V DC ±30%, max 3.7W
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)
• Housing: Metal front cover + Plastic body

Recommendations

For optimal performance, use a regulated 12V DC power supply. Ensure the camera is mounted securely and the cable connections are weatherproofed. This camera is ideal for users seeking a cost-effective, high-resolution analog solution with reliable night vision.
