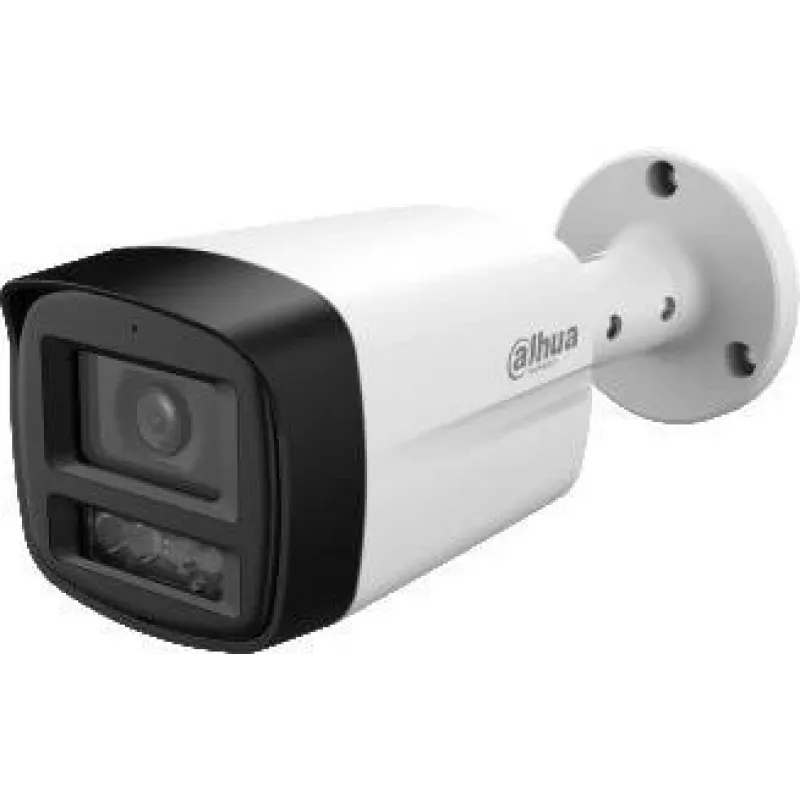

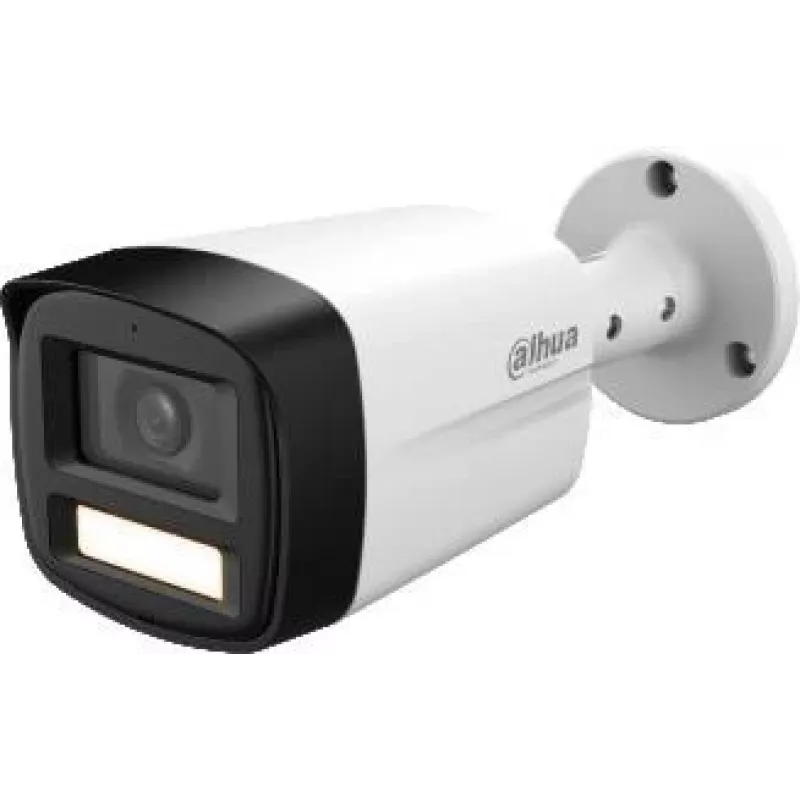

Dahua HAC-HFW1509TLM-A-LED-0360B-S3 5MP full-color bullet-camera met warmwitte LED, 3,6mm objectief, IP67

The Dahua HAC-HFW1509TLM-A-LED-0360B-S3 is a high-performance 5MP analog bullet camera designed for reliable outdoor surveillance. Featuring a 1/2.7" CMOS sensor and a 3.6mm fixed lens, it delivers crisp 2592x1944 resolution at 20fps. Equipped with warm LED illumination, it provides full-color video even in complete darkness, with a warm light distance of up to 20m. The camera supports 4-in-1 video output (CVI/TVI/AHD/CVBS) for flexible integration with existing systems. Its IP67-rated metal housing ensures durability in harsh environments, operating from -40°C to +60°C. With built-in microphone and DWDR, this camera is ideal for perimeter protection, parking lots, and residential areas.

Advantages

Full-color night vision eliminates the need for external IR illuminators, while the 4-in-1 switchable output simplifies compatibility with various DVRs. The metal construction and IP67 rating guarantee long-term reliability in outdoor conditions. Low power consumption (max 3.7W) reduces operating costs.

Suitable for

• Outdoor perimeter surveillance
• Parking lots and garages
• Residential driveways and gardens
• Commercial building entrances
• Warehouse and industrial sites

Key specifications

• Image Sensor: 1/2.7" CMOS
• Max Resolution: 5MP (2592x1944)
• Focal Length: 3.6mm
• Horizontal Angle of View: 83°
• Warm Light Distance: Up to 20m
• Video Output: CVI/TVI/AHD/CVBS switchable
• Audio: Built-in microphone
• Day/Night: Full-color with warm LED
• WDR: DWDR
• Noise Reduction: 2D NR
• Ingress Protection: IP67
• Power Supply: 12V DC
• Power Consumption: Max 3.7W
• Operating Temperature: -40°C to +60°C
• Casing Material: Metal
• Frame Rate: 5MP@20fps; 4MP@25/30fps; 1080P@25/30fps
• Minimum Illumination: 0.001 [email protected] (Color), 0 Lux (Warm Light on)
• OSD Menu: Supported

Recommendations

For optimal performance, use a high-quality 12V DC power supply and ensure proper cable connections. Pair with a compatible Dahua DVR supporting 5MP CVI input. The camera is designed for fixed outdoor installations; avoid direct exposure to extreme weather beyond rated limits.
