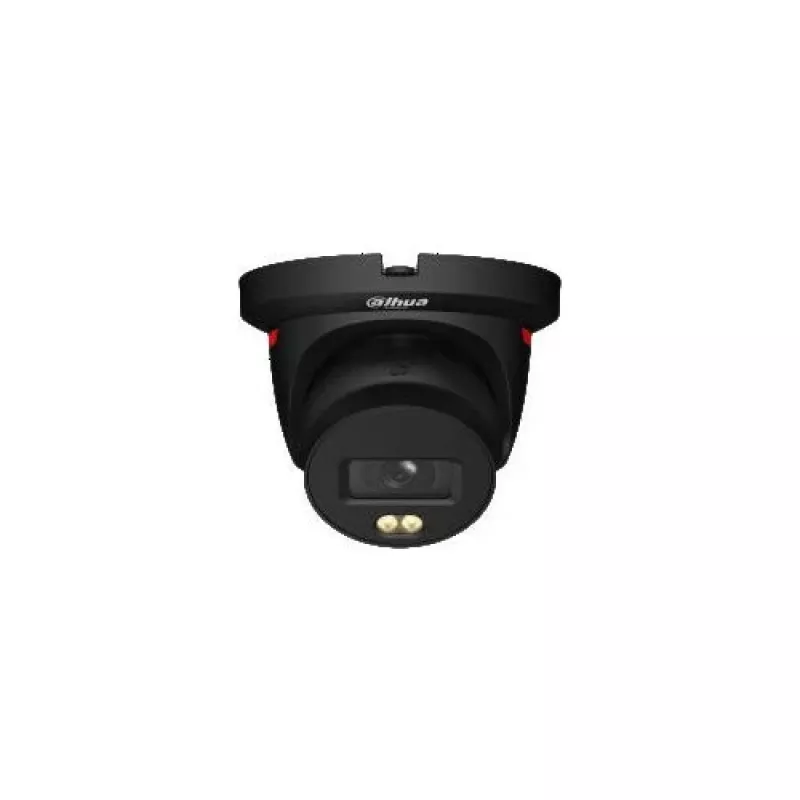

Dahua IPC-HDW2249TH-S-LED-0280B-PROX-BLK 2MP eyeball IP-camera, 2,8 mm, zwart

The Dahua IPC-HDW2249TH-S-LED-0280B-Prox-Blk is a wired IP security camera designed for outdoor use. It delivers 2 MP Full HD resolution and features a 1/1.8" CMOS sensor for detailed images even in low light. With a built-in warm light illuminator and advanced AI detection, it provides reliable surveillance around the clock.

Key features

• 2 MP Full HD resolution (1920 × 1080) at 25/30 fps
• 1/1.8" CMOS sensor for excellent low-light performance
• Intelligent detection of people and vehicles with AI functions such as line crossing and intrusion
• SMD Plus for improved object detection and reduced false alarms
• Built-in warm light with up to 20 m illumination range
• H.265 compression for efficient bandwidth and storage usage
• Advanced image enhancement: WDR, 3D NR, HLC, BLC
• Built-in dual microphone for audio recording
• MicroSD card support up to 512 GB
• PoE or 12 V DC power supply
• IP67 weather-resistant housing for outdoor use
• Comprehensive security features: motion detection, tampering, audio detection, network disconnection, and memory card issues

Specifications

• Brand: Dahua
• MPN: IPC-HDW2249TH-S-LED-0280B-PROX-BLK
• Product type: IP Security Camera
• Maximum resolution: 2 MP
• Placement supported: Outdoor
• Connectivity technology: Wired
• Power source type: DC & PoE
• International Protection (IP) code: IP67
• Image sensor: 1/1.8" CMOS
• Max. resolution: 1920 × 1080
• ROM/RAM: 128 MB / 128 MB
• Scanning system: Progressive
• Electronic shutter: Auto/Manual, 1/3 s–1/100,000 s
• Minimum illumination: 0.00003 lx @ F0.8
• Signal-to-noise ratio: >56 dB
• Illuminator: 2 × warm light
• Illuminator range: Up to 20 m
• Illuminator control: Auto/Manual
• Adjustment: Pan 0°–360°, tilt 0°–78°, rotation 0°–360°
• Lens type: Fixed focal
• Lens mount: M18
• Focal length: 2.8 mm
• Max. aperture: F0.8
• Field of view: Horizontal 110°, vertical 58°, diagonal 131°
• Aperture control: Fixed
• Minimum focusing distance: 1.3 m
• DORI: Detect 41.3 m, observe 16.5 m, recognize 8.3 m, identify 4.1 m
• Video compression: H.265 / H.264 / H.264H / H.264B / MJPEG
• AI Coding: Super AI Coding H.265 / H.264; Smart H.265+ / Smart H.264+
• Main stream: 1920 × 1080 @ 1–25/30 fps
• Sub stream: 704 × 576 @ 1–25/30 fps / 704 × 480 @ 1–30 fps
• Third stream: 352 × 288 @ 1 fps / 352 × 240 @ 1 fps
• Number of streams: 3
• Supported resolutions: 1080p, 1.3M, 720p, D1, VGA, CIF
• Bit rate control: VBR / CBR
• Bit rate H.264: 32 kb/s–6144 kb/s
• Bit rate H.265: 12 kb/s–6144 kb/s
• Day/Night mode: Color / B&W
• WDR: 120 dB
• BLC / HLC: Yes / Yes
• Noise reduction: 3D NR
• White balance: Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
• Gain control: Auto/Manual
• Motion detection: Yes, 4 rectangular zones
• ROI: Yes, 4 zones
• Smart illumination: Yes
• Image rotation: 0° / 90° / 180° / 270°
• Mirror: Yes
• Privacy masks: 4 zones
• Lens distortion correction: LDC
• Intelligent functions: IVS perimeter protection
• Intrusion, line crossing
• Object classification: Human / Vehicle
• SMD: SMD Plus
• Audio: Built-in dual microphone
• Audio compression: G.711a / G.711Mu / PCM / G.726
• Audio sampling: 8 kHz / 16 kHz
• Storage: MicroSD up to 512 GB
• Recording modes: Manual, video detection, schedule, alarm
• Network storage: FTP / SFTP
• Network interface: RJ-45 10/100 Base-T
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP
