Dahua PFA136 aansluitdoos-montagebeugel voor domecamera's, wit, IP66

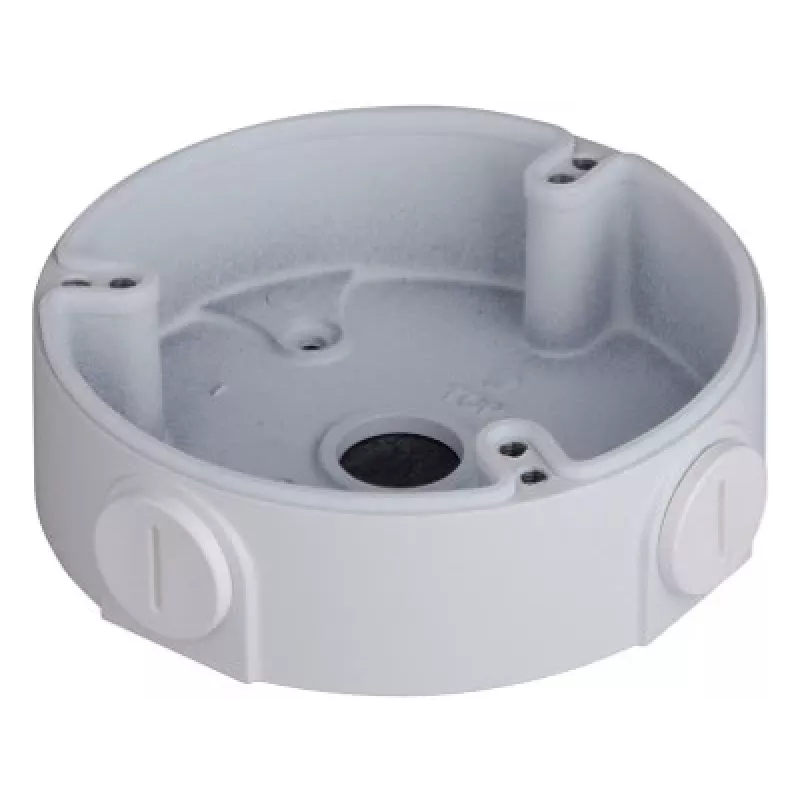

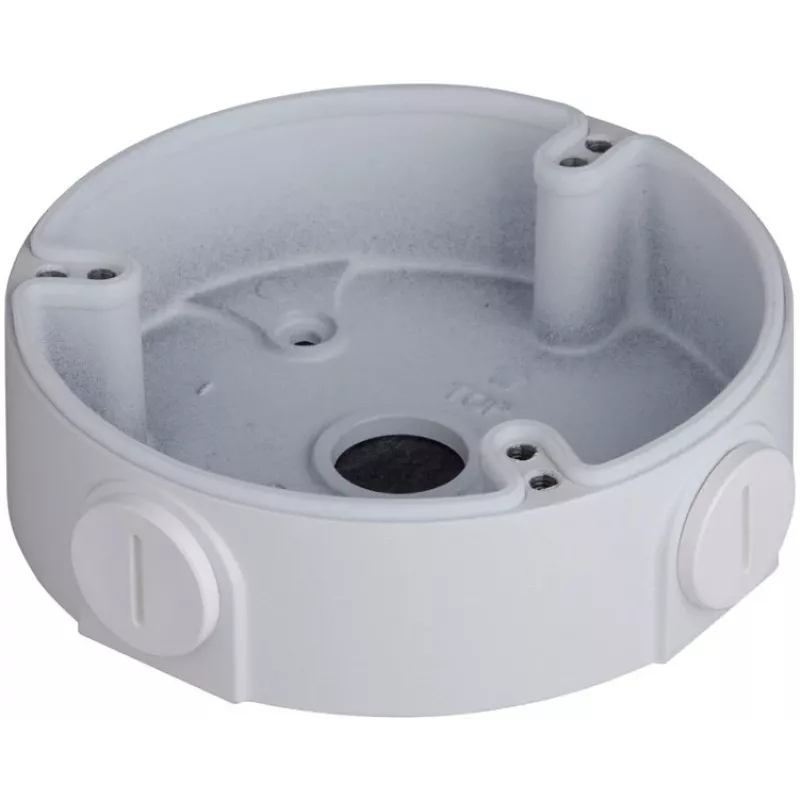

The Dahua PFA136 is a high-quality junction box mounting bracket designed for Dahua dome cameras. Constructed from die-cast aluminum with a powder-coated finish, this bracket provides a secure and weather-resistant mounting solution for both indoor and outdoor installations. With an IP66 rating, it offers excellent protection against dust and water ingress, ensuring reliable performance in harsh environments. The integrated cable management system allows for neat and organized wiring, while the G1/2" pipe thread ensures compatibility with standard conduit fittings. The PFA136 is easy to install and supports a maximum load capacity of 1.0 kg (2.2 lbs), making it ideal for a wide range of dome camera models.

Advantages

Robust die-cast aluminum construction with powder coating provides long-lasting durability and corrosion resistance. The IP66 rating guarantees protection against dust and powerful water jets, making it suitable for outdoor use. Integrated cable management simplifies installation and maintains a clean appearance. The bracket's compact design (Φ111.6 mm x 34.0 mm) ensures a low-profile mounting solution that blends seamlessly with the camera.

Suitable for

• Dahua dome cameras requiring a junction box mount
• Indoor and outdoor surveillance installations
• Applications needing weatherproof and corrosion-resistant mounting
• Installations requiring neat cable management

Key specifications

• Material: Aluminum (die-cast)
• Color: White
• Mounting Type: Junction Box
• Ingress Protection: IP66
• Maximum Load Capacity: 1.0 kg (2.2 lbs)
• Operating Temperature: -40°C to +60°C (-40°F to +140°F)

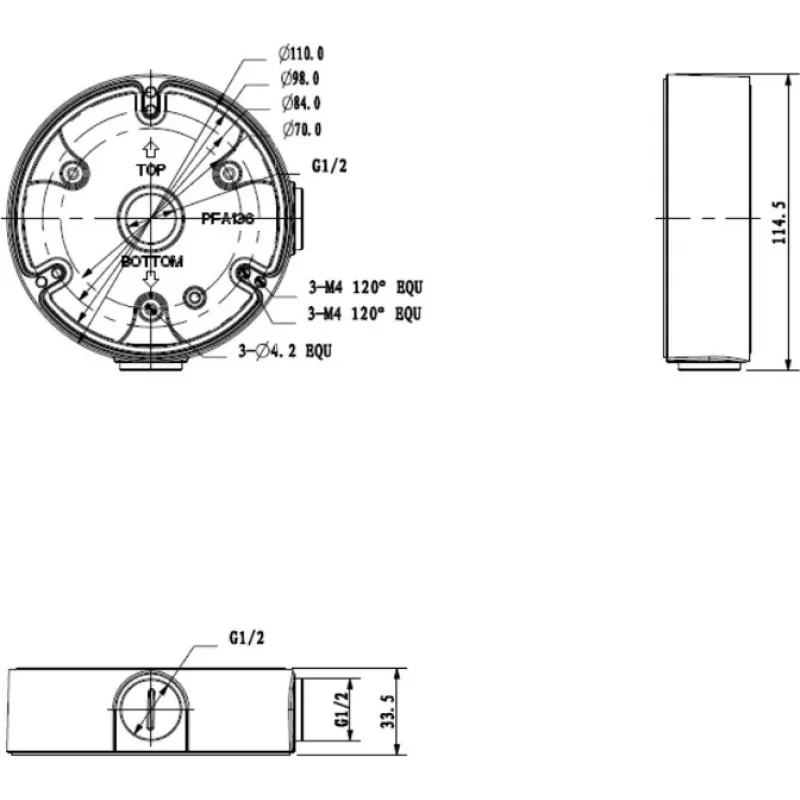

• Dimensions: Φ111.6 mm x 34.0 mm (Diameter x Height)
• Pipe Thread: G1/2"
• Compatible Cameras: Dahua Dome Cameras
• Finish: Powder Coated

Recommendations

For optimal performance, ensure the mounting surface is flat and secure. Use appropriate screws and anchors for the installation surface. The bracket is designed for use with Dahua dome cameras; verify compatibility before purchase.
