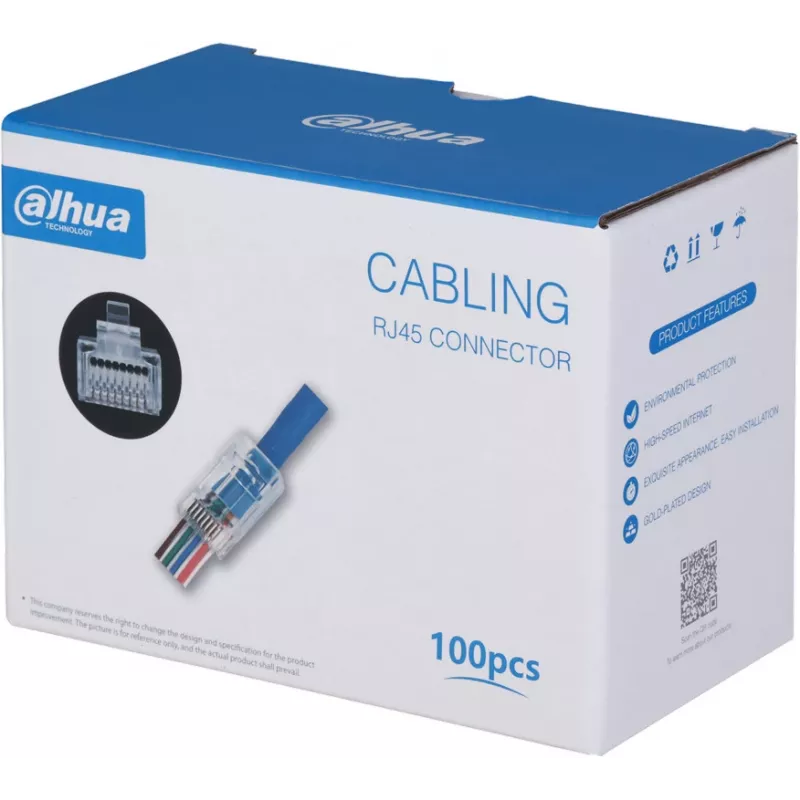

Dahua PFM976-530-PT RJ45 CAT5e stekker

The Dahua PFM976-530-PT is a high-performance RJ45 connector designed for reliable Ethernet connections in IP camera systems and networking applications. This CAT5e compatible connector features 50µm gold-plated contacts for superior conductivity and durability, supporting up to 750 mating cycles. Its transparent polycarbonate housing allows for easy visual inspection of wire placement, and it accommodates both solid and stranded conductors (24-26 AWG). Ideal for professional installations requiring consistent signal integrity.

Advantages

Gold-plated contacts ensure low resistance and corrosion resistance, while the unshielded twisted pair (UTP) design is perfect for standard Ethernet environments. The crimp-on termination method provides a secure and permanent connection, and the wide operating temperature range (-40°C to +70°C) ensures reliability in various conditions.

Suitable for

• Ethernet network installations
• IP camera systems
• Data center cabling
• Structured cabling projects

Key specifications

• Connector Type: RJ45 (8P8C)
• Cable Category: CAT5e
• Contact Plating: 50µm Gold
• Housing Material: Polycarbonate (PC)
• Shielding: Unshielded (UTP)
• Conductor Compatibility: Solid and Stranded
• Wire Gauge: 24-26 AWG
• Termination Method: Crimp-on
• Operating Temperature: -40°C to +70°C
• Durability: 750 mating cycles
• Standards: TIA/EIA-568-C.2, RoHS
• Color: Transparent

Recommendations

For optimal performance, use with CAT5e or higher cabling and ensure proper crimping with a compatible tool. Suitable for both residential and commercial networking environments.
