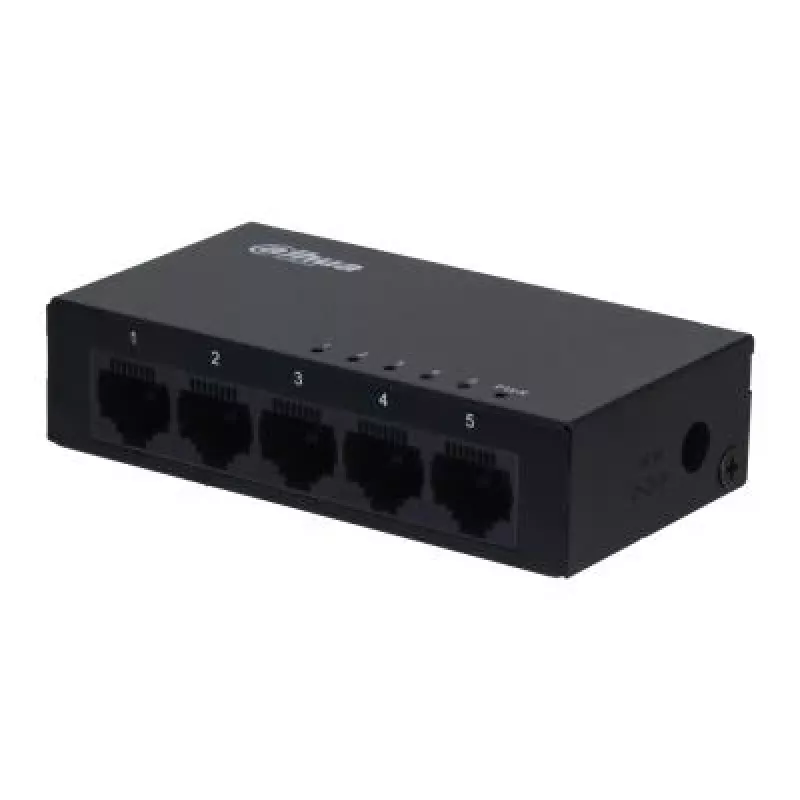

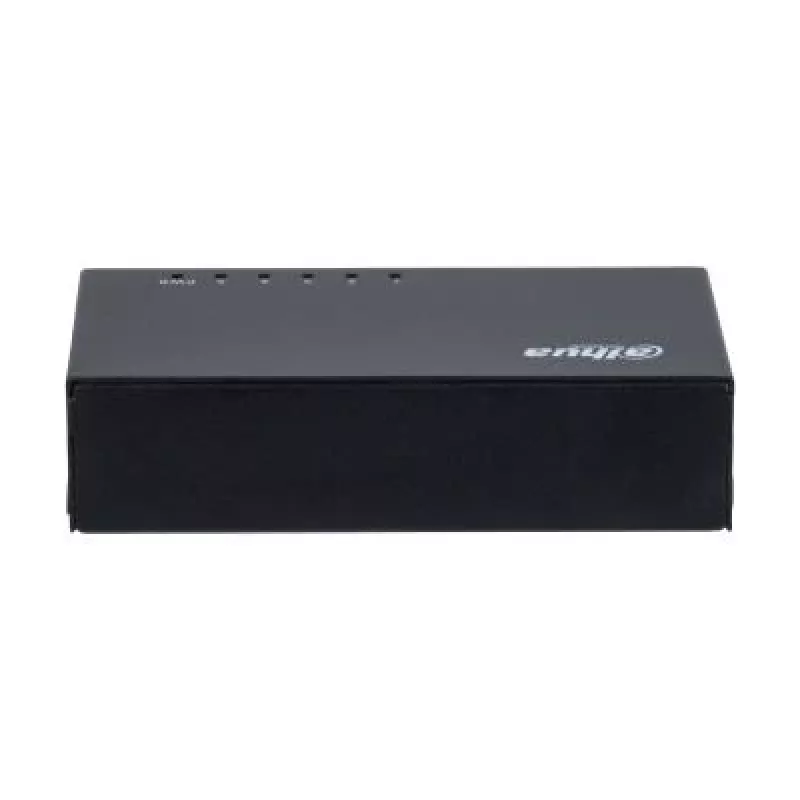

Dahua Technology SG1005-EUR netwerkswitch unmanaged L2 Gigabit Ethernet (10/100/1000) zwart

DAHUA NET SWITCH SG1005-EUR is a compact 5-port Ethernet switch supporting 10/100 Mbps and Gigabit (1G) speeds. It provides five RJ45 ports for connecting computers, IP cameras, routers and other wired devices, enabling simple network expansion in home, office or small surveillance installations. The switch offers plug-and-play operation and a small form factor that fits into constrained spaces.

Advantages

The SG1005-EUR delivers a switching capacity of 10 Gbps and a forwarding rate of 7.44 Mpps, allowing efficient traffic handling for small networks. Its compact dimensions (87.0 mm × 47.0 mm × 22.0 mm) and low net weight (0.16 kg) make installation and placement flexible. Compatibility with both 10/100 Mbps and 1G connections ensures connectivity for mixed-speed devices without manual configuration.

Suitable for

• Home wired networks
• Small office network expansion
• Connecting IP cameras in small surveillance setups
• Adding wired ports to routers or modems

Key specifications

• Model: DAHUA SG1005-EUR
• Ports: 5 × 10/100M/1G RJ45
• Switching capacity: 10 Gbps
• Forwarding rate: 7.44 Mpps
• Dimensions: 87.0 mm × 47.0 mm × 22.0 mm
• Net weight: 0.16 kg
• Brand: DAHUA
• MPN: SG1005-EUR
• EAN: 6923172590480

How to use

Place the SG1005-EUR on a stable surface or mount it where cables reach comfortably. Connect the switch to power (use the supplied adapter if provided) and link devices using standard Ethernet cables to the RJ45 ports. The switch operates in plug-and-play mode; connected devices will negotiate link speed (10/100/1000 Mbps) automatically and begin exchanging network traffic without additional configuration.

Recommendations

For optimal performance, use quality Cat5e or Cat6 cables for Gigabit connections and avoid placing the switch near strong electromagnetic sources or in poorly ventilated areas. If used with multiple PoE cameras, verify power requirements separately — this model is an unmanaged data switch and does not provide PoE unless specified otherwise.
