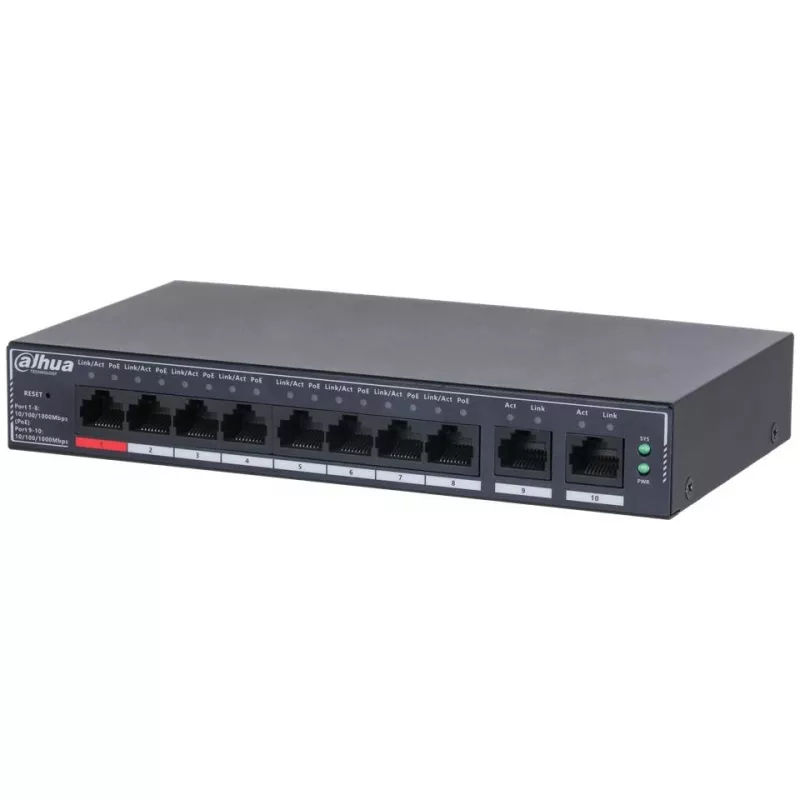

Dahua Technology SG4010P netwerkswitch managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) zwart

DAHUA DH-SG4010P is a Layer 2 network switch with 8 PoE ports and a total PoE budget of 110 W. The switch provides L2 switching functions with a switching capacity of 20 Gbps and a forwarding rate of 14.88 Mpps, and is intended to power IP devices such as cameras and wireless access points in small-to-medium CCTV, wireless and edge network installations. The compact device uses an external power supply and operates in environments from -10 °C to +55 °C.

Advantages

The DAHUA DH-SG4010P combines PoE power delivery and L2 switching in a compact enclosure, enabling centralized powering of IP cameras and access points while maintaining a 20 Gbps switching capacity. With an overall PoE budget of 110 W and 8 dedicated PoE ports, it supports common surveillance and wireless deployment scenarios. The device’s external power supply and small footprint (190 × 106 × 30 mm) simplify installation in constrained spaces.

Suitable for

• Small to medium CCTV systems with PoE cameras
• Wireless access point deployments at the network edge
• Edge switching in small office or retail locations

Key specifications

• Type: L2 switch
• PoE ports: 8
• PoE power budget: 110 W (total)
• Switching capacity: 20 Gbps
• Forwarding rate: 14.88 Mpps
• Power supply: External
• Power options: PoE
• Operating temperature: -10 °C to +55 °C
• Dimensions: 190 mm × 106 mm × 30 mm
• Net weight: 0.55 kg
• Model/MPN: DAHUA DH-SG4010P (SG4010P)

How to use

Install the switch on a stable surface or in a suitable enclosure, connect the external power supply, and attach network devices to the RJ45 PoE ports. Configure basic L2 settings through the switch’s management interface according to site requirements (VLANs, link aggregation, port settings). Ensure connected PoE devices do not exceed the total PoE budget of 110 W by checking individual device power requirements.

Recommendations

For reliable operation, place the switch in a ventilated area within the specified temperature range (-10 °C to +55 °C) and plan PoE allocations so the combined power draw of connected devices remains within the 110 W budget. Use appropriate cable types (Cat5e or better) and follow DAHUA’s installation guidelines for surveillance or wireless deployments.
