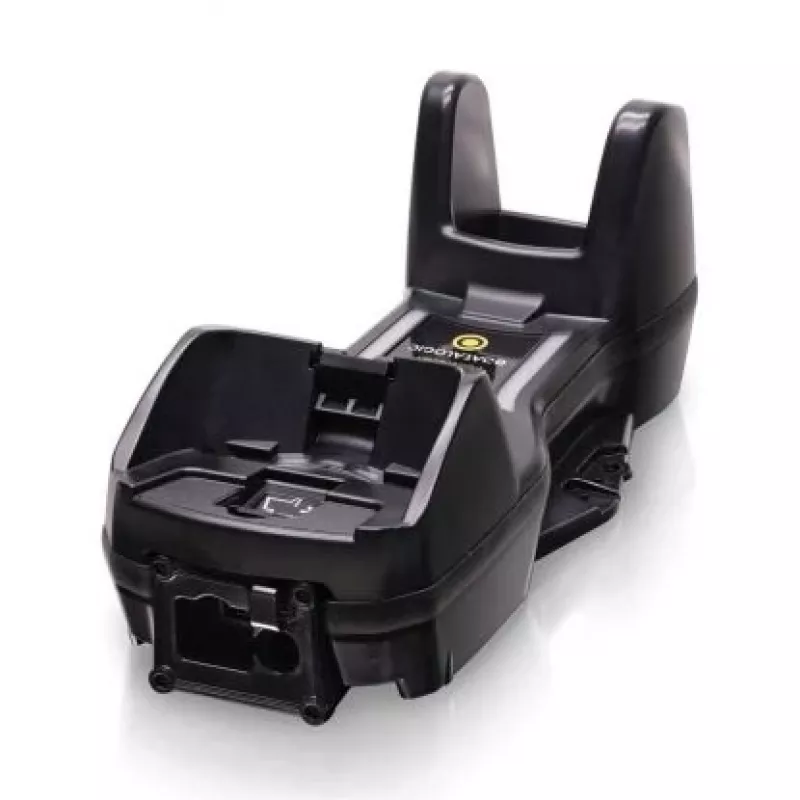

Datalogic BC9681 basisstation/oplader 433 MHz Ethernet Profinet IP65

In a busy warehouse, workers need to scan barcodes quickly and without being tethered to a workstation. The Datalogic BC9681 Base Station/Charger is the central hub for the PowerScan 9600 series cordless scanners, providing reliable wireless communication and charging in one rugged unit. With its 433 MHz STAR Cordless System, it ensures seamless data transmission up to 50 meters, while the IP65 rating protects against dust and water jets, making it suitable for harsh industrial environments.

Key specifications

• Wireless technology: Datalogic STAR Cordless System, 433 MHz frequency
• Host interfaces: Ethernet, Profinet, USB (Type B)
• Charging capability: Yes, for compatible PowerScan 9600 series scanners
• Industrial protection: IP65 (dust-tight and protected against water jets)
• Operating temperature: -20 to 50 °C (-4 to 122 °F)
• Power supply: 10 - 30 VDC
• Status indicators: Multi-color LEDs for power, link, and status
• Mounting options: Wall mount, desk mount
• Communication range: Up to 50 m / 164 ft in open air
• Max scanners per base: Up to 16 (point-to-point) or 4 (multi-point)
• Data rate: Up to 1 Mbps
• Colour: Black / Industrial Grey

Why choose it

This base station is built to withstand the toughest conditions, with an IP65 rating that ensures operation in dusty or wet environments. It supports multiple scanners, allowing flexible deployment in large operations. The combination of Ethernet and Profinet interfaces provides seamless integration into industrial networks, while the USB port offers additional connectivity options. The wide operating temperature range and robust power input make it reliable in diverse settings, from cold storage to hot manufacturing floors.

Ideal use cases

• Warehouse and distribution centers for high-volume scanning
• Manufacturing lines requiring cordless mobility
• Logistics and transportation hubs with harsh environments
• Retail backrooms and inventory management

Good to know

The BC9681 is compatible exclusively with Datalogic PowerScan 9600 series handheld scanners. It can charge the scanner while in use, ensuring continuous operation. The base station can be mounted on a wall or placed on a desk, offering flexibility in workstation setup. For optimal performance, ensure the base station is positioned within the recommended range and avoid obstacles that may interfere with the 433 MHz signal.
