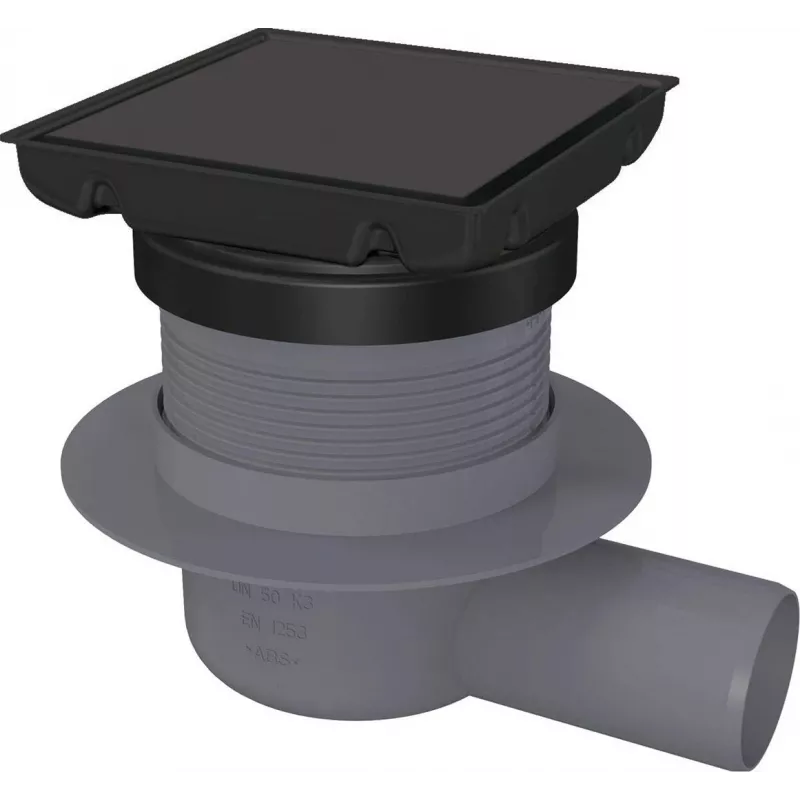

DEANTE Point Drain - omkeerbare RVS vloerafvoer met droge sifon, 150x150 mm

The DEANTE Point Drain - Reversible is a high-quality floor drain designed for modern bathrooms, showers, and utility rooms. Crafted from AISI 304 stainless steel, it offers exceptional corrosion resistance and durability. The reversible grate allows for tileable or brushed stainless steel finish, seamlessly integrating into any floor design. Equipped with a dry siphon odor trap, it prevents unpleasant smells without the need for water, making it ideal for low-flow or intermittent use areas.

Advantages

This drain features a dry siphon mechanism that provides reliable odor protection even when not in use. The reversible grate offers flexibility in aesthetic choice, and the adjustable feet ensure easy installation at varying depths. The included hydro-insulation flange (sealing collar) guarantees a watertight seal, preventing leaks. With a flow rate of up to 40 L/min and load capacity class K3 (up to 300 kg), it is both efficient and robust.

Suitable for

• Shower floors
• Bathroom floors
• Utility rooms
• Wet areas requiring a low-profile drain

Key specifications

• Drain Type: Point Floor Drain
• Grate Type: Reversible (Tileable / Brushed Stainless Steel)
• Siphon Type: Dry Siphon
• Material: AISI 304 Stainless Steel
• Grate Dimensions: 150 x 150 mm
• Minimum Installation Depth: 60 mm
• Outlet Diameter: 50 mm
• Flow Rate: Up to 40 L/min
• Load Capacity Class: K3 (up to 300 kg)
• Connection Type: Horizontal
• Frost Resistance: Yes
• Adjustable Feet: Yes
• Sealing Collar Included: Yes (Hydro-insulation flange)
• Cleaning: Easy, removable elements

Recommendations

Ensure proper installation depth of at least 60 mm. Compatible with standard 50 mm outlet pipes. Suitable for both new construction and renovation projects.
