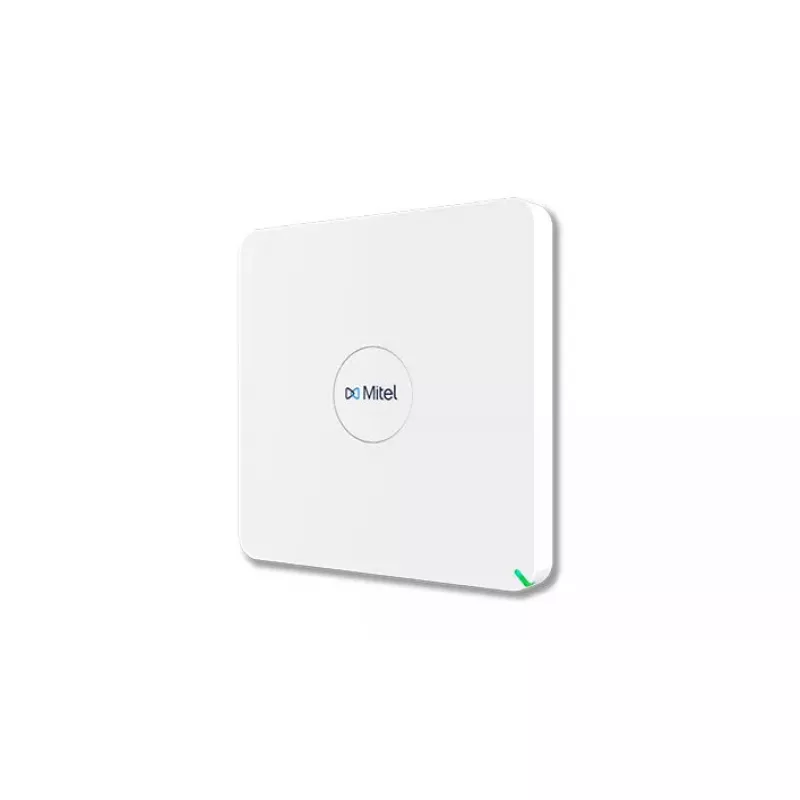

DECT-basisstation Mitel RFP 47 wit

The Mitel RFP 47 DECT Base Station White is designed for environments that require tailored wireless coverage. It supports two external antennas via SMA connectors to extend or focus DECT coverage, offers 12 channels, and supports security with 802.1x RADIUS. The unit supports voice codecs G.711, G.722 and G.729ab for clear audio and is built in an ABS enclosure with IP20 protection. Compact dimensions (150 x 40 x 150 mm) and a weight of 345 g make it suitable for discreet indoor deployments, and it can be installed in Mitel’s IP66-rated Outdoor Housing for protected outdoor use.

Advantages

The base station accepts two external antennas to meet specific coverage requirements and improve signal focus. Its unobtrusive ABS housing and separable mounting bracket allow flexible placement on walls or ceilings. Audio quality is supported by common DECT codecs (G.711, G.722, G.729ab) and the device integrates 802.1x RADIUS for improved network authentication. The small footprint and light weight simplify installation and handling.

Suitable for

• Office and business environments needing extended DECT coverage
• Locations requiring focused or customized antenna placement
• Installations where compact, discreet base stations are preferred
• Outdoor deployments when used with Mitel’s IP66 Outdoor Housing

Key specifications

• Model: Mitel RFP 47 (White)
• Channels: 12
• External antenna support: 2 (SMA connectors)
• Voice codecs: G.711, G.722, G.729ab
• Security: 802.1x RADIUS
• Material: ABS
• Protection rating: IP20 (unit); compatible with IP66 Outdoor Housing for outdoor use
• Dimensions: 150 x 40 x 150 mm
• Weight: 345 g
• Input voltage: 37–57 V
• Manufacturer part number (MPN): 50006974
• EAN: 7109806119350

How to use

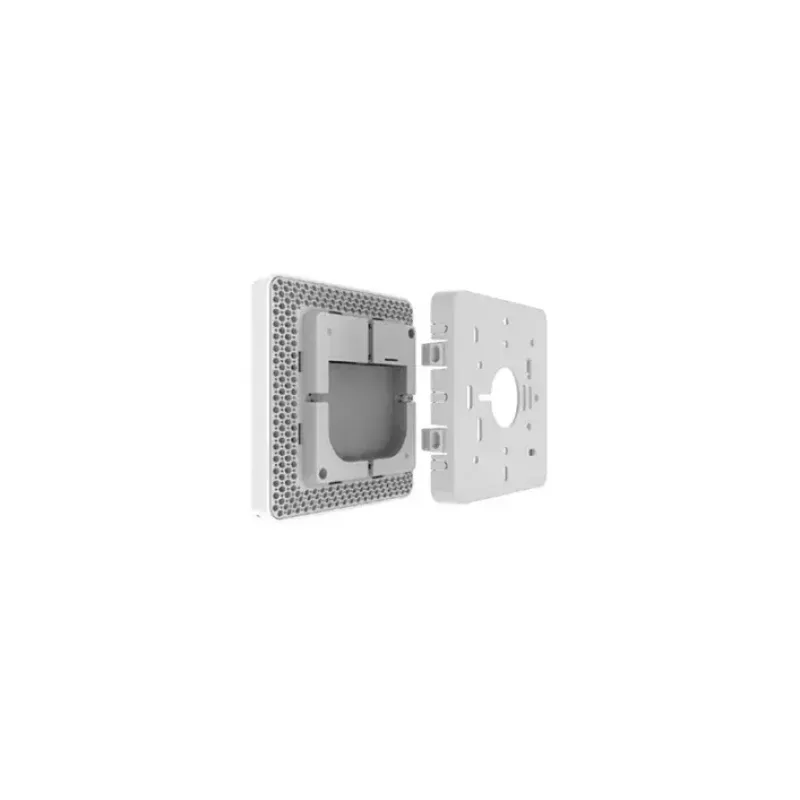

Install the RFP 47 on a wall or ceiling using the separable mounting bracket or mount the bracket separately for flexible placement. Connect up to two external antennas to the SMA connectors when extended or directional coverage is required. Configure network authentication using 802.1x RADIUS as part of your DECT system setup and ensure codec settings (G.711, G.722, G.729ab) match your telephony platform. For outdoor operation, place the base station inside Mitel’s Outdoor Housing and follow the housing’s installation instructions to achieve IP66 protection.

Recommendations

For optimal coverage, test antenna positions and use Mitel-approved external antennas. Use the Outdoor Housing for any exposed installations to protect the unit from dust and water. Follow local regulations for power supply and grounding when connecting the 37–57 V input.
