DeepCool CG530U 4F tower zwart

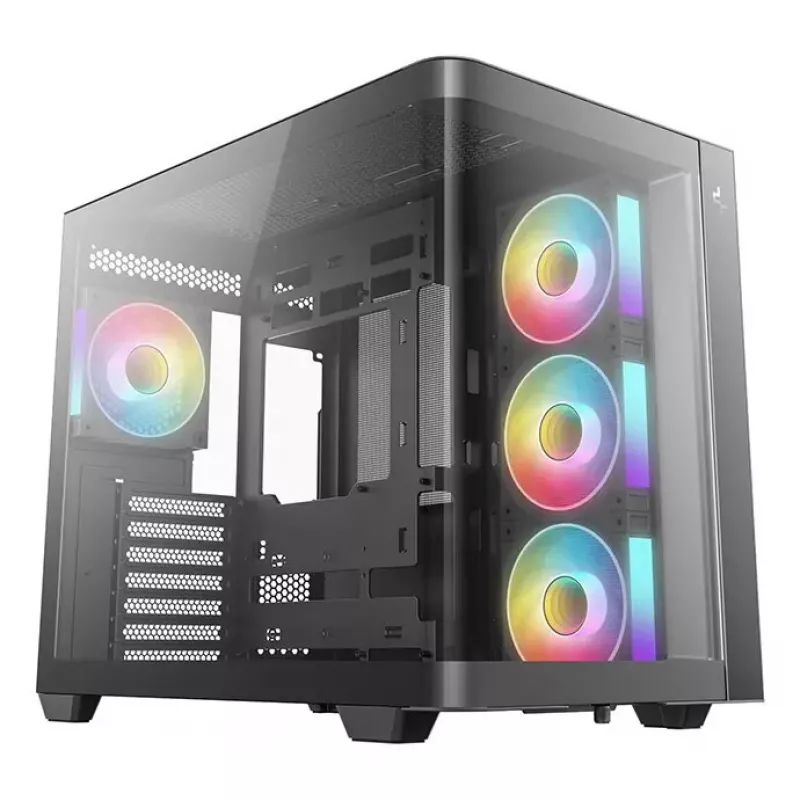

DeepCool CG530U 4F Tower Black is a mid-tower PC case designed to accommodate ATX, micro-ATX and Mini-ITX motherboards. The chassis features a rear power supply location and integrated cooling with three 120 mm fans mounted on the side and one 120 mm fan at the rear. It supports both 2.5" and 3.5" drives and combines tempered glass and solid panels for a balance of visibility and airflow.

Advantages

The case offers a compact footprint with a width of 285 mm, depth of 475 mm and height of 380 mm, making it suitable for desk setups where space is limited. Pre-installed side and rear fans provide immediate cooling capability while support for additional 120 mm or 140 mm fans allows for upgraded airflow. Construction materials include ABS, SPCC steel and tempered glass for durability and aesthetic clarity, and anti-dust filters help reduce maintenance needs.

Suitable for

• Home and office desktop systems with ATX, micro-ATX or Mini-ITX motherboards
• Compact gaming builds requiring multiple fan mounts and tempered glass side panel
• Workstation or multimedia PCs that need both 2.5" SSDs and 3.5" HDDs
• Upgrades where rear power supply placement and easy airflow routing are preferred

Key specifications

• Form factor: Tower (mid-tower compatible with ATX, micro-ATX, Mini-ITX)

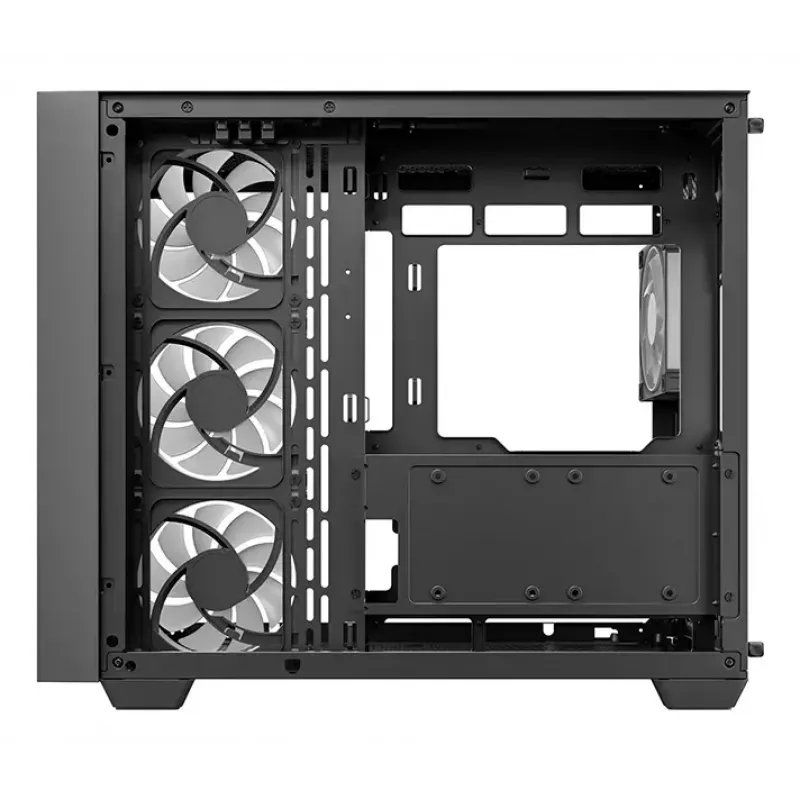

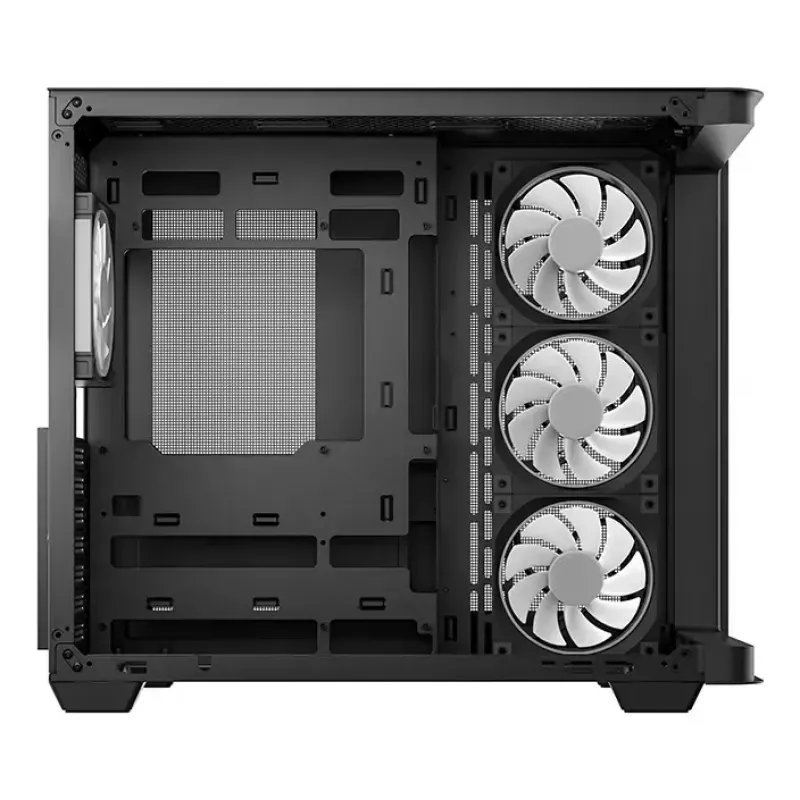

• Pre-installed fans: 3 × 120 mm (side), 1 × 120 mm (rear)
• Supported fan diameters: 120 mm, 140 mm
• Drive support: 2.5" and 3.5" drives; number of 2.5" bays: 3; number of 3.5" bays: 2
• Materials: ABS, SPCC steel, tempered glass side panel
• Cooling features: tempered glass side window, anti-dust filter

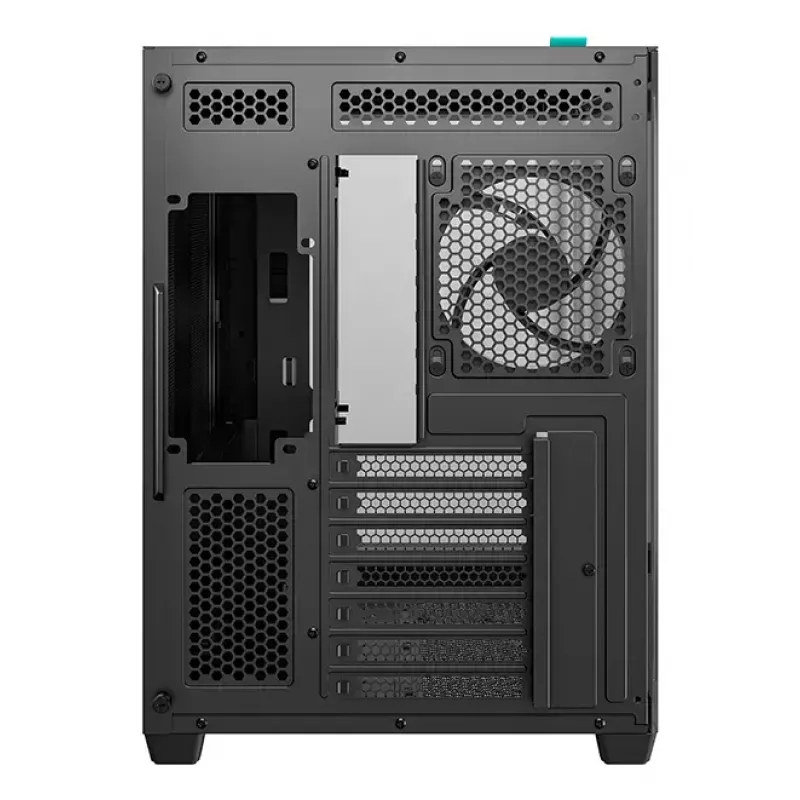

• Power supply location: rear-mounted
• External dimensions (W × D × H): 285 × 475 × 380 mm
• Color: Black

How to use

Install the motherboard compatible with ATX, micro-ATX or Mini-ITX form factor on the mounting standoffs, then mount the power supply in the rear compartment. Fit storage drives into the provided 2.5" or 3.5" bays and route cables through the case openings to maintain airflow. Position the included 120 mm fans and, if required, swap or add 120 mm or 140 mm fans in supported locations. Ensure the tempered glass panel is aligned and secured after assembly to avoid stress on the glass.

Recommendations

Keep the anti-dust filters clean and check fan orientation during assembly to optimize airflow from front/side intake to rear exhaust. When installing high-performance components, consider adding additional fans in supported 120/140 mm locations and maintain clear cable routing to improve cooling efficiency.
