DEEPCOOL Pl650d voeding 650 W 20+4 pin ATX - wit

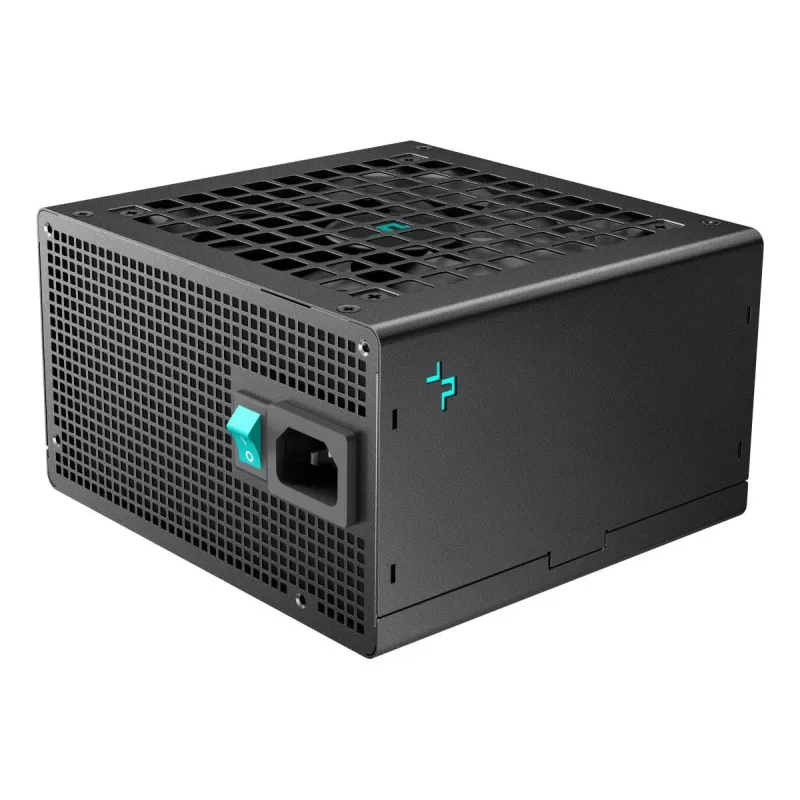

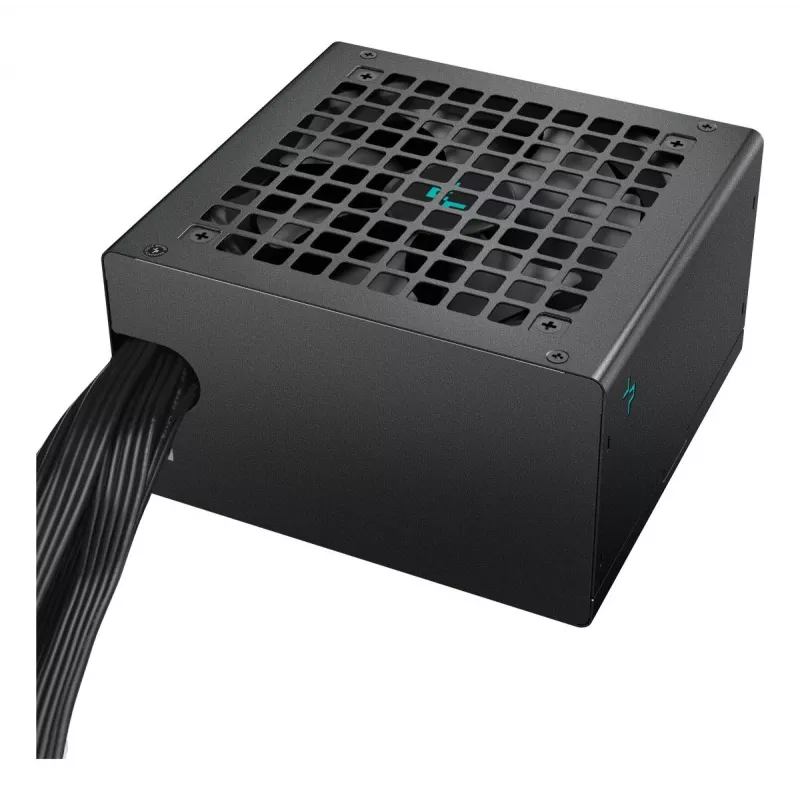

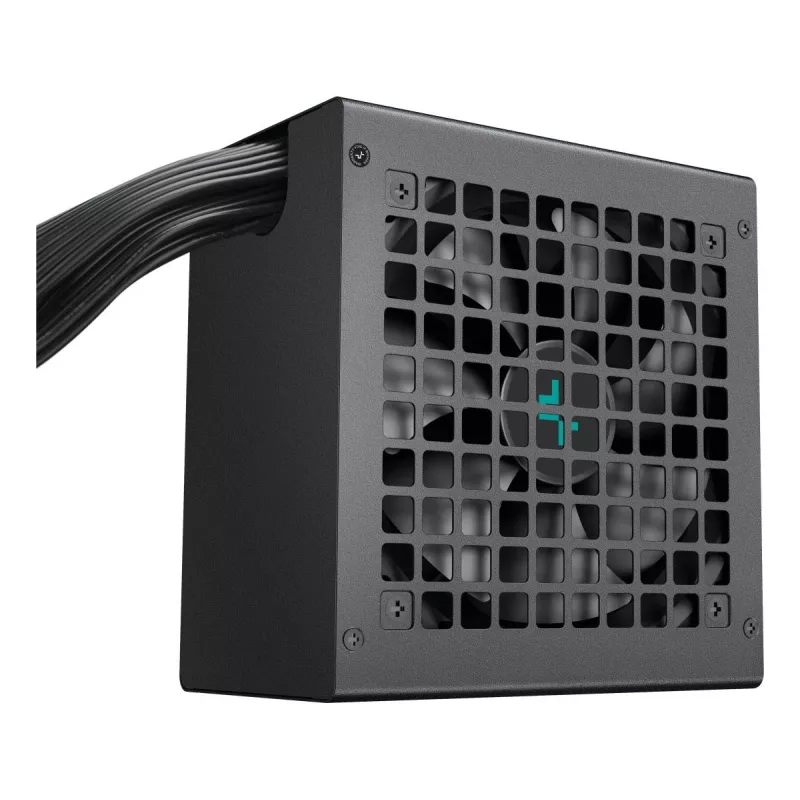

The DeepCool PL650D 650W is a native ATX3.0 non-modular power supply designed to provide stable power for modern and legacy PCs. It includes a native 12VHPWR (PCIe 5.0) cable rated up to 300 W, three PCIe connectors, two EPS connectors, and a 120 mm hydro-bearing fan. The unit is 80 PLUS Bronze certified and uses premium electrolytic capacitors to maintain hold-up time and handle brief power interruptions.

Advantages

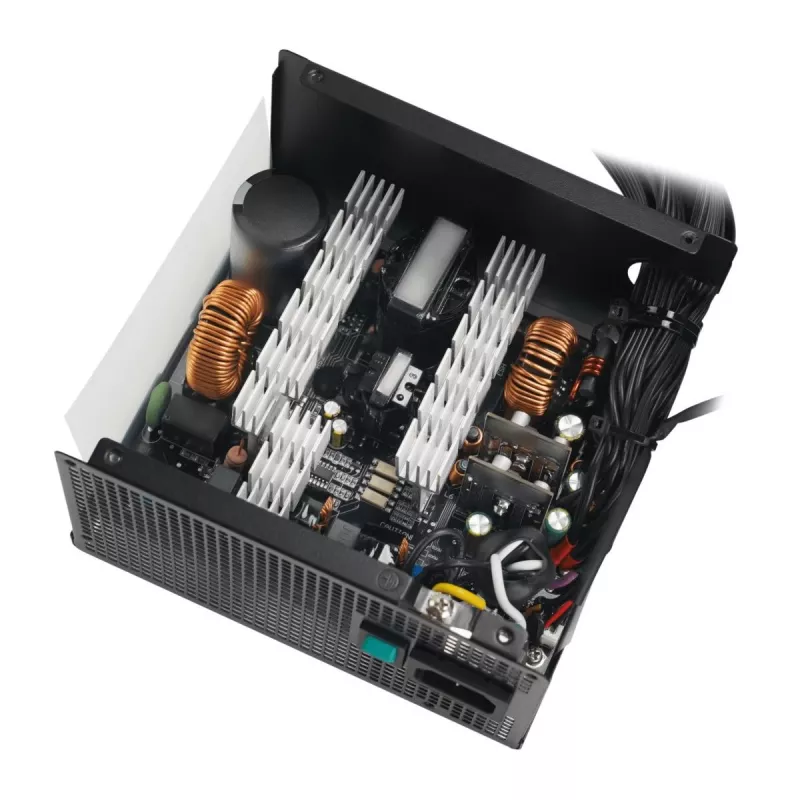

Compliant with Intel's ATX3.0 standard, the PL650D can deliver short-duration power spikes (twice total system power for 0.1 ms) without instability. High-grade electrolytic capacitors ensure a hold-up time of ≥16 ms at full load. The supply uses active PFC and DC-to-DC conversion and a dual-transistor forward topology for reliable voltage regulation. It is built with quality components, operates up to 5000 m altitude, and includes multi-level protection features (OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO).

Suitable for

• Mid-range gaming desktops requiring a PCIe 5.0 12VHPWR connector
• Upgrading legacy systems that need stable 650 W supply
• Systems that benefit from 80 PLUS Bronze efficiency and active PFC

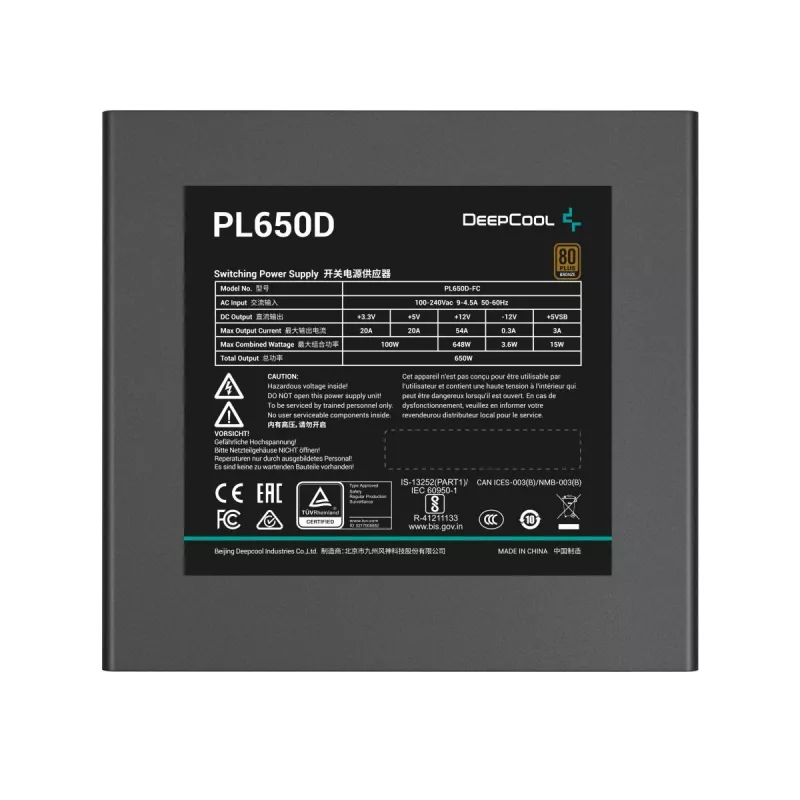

Key specifications

• Total power: 650 W
• Efficiency: 80 PLUS Bronze (≈85% at typical load)
• Motherboard connector: 20+4 pin ATX

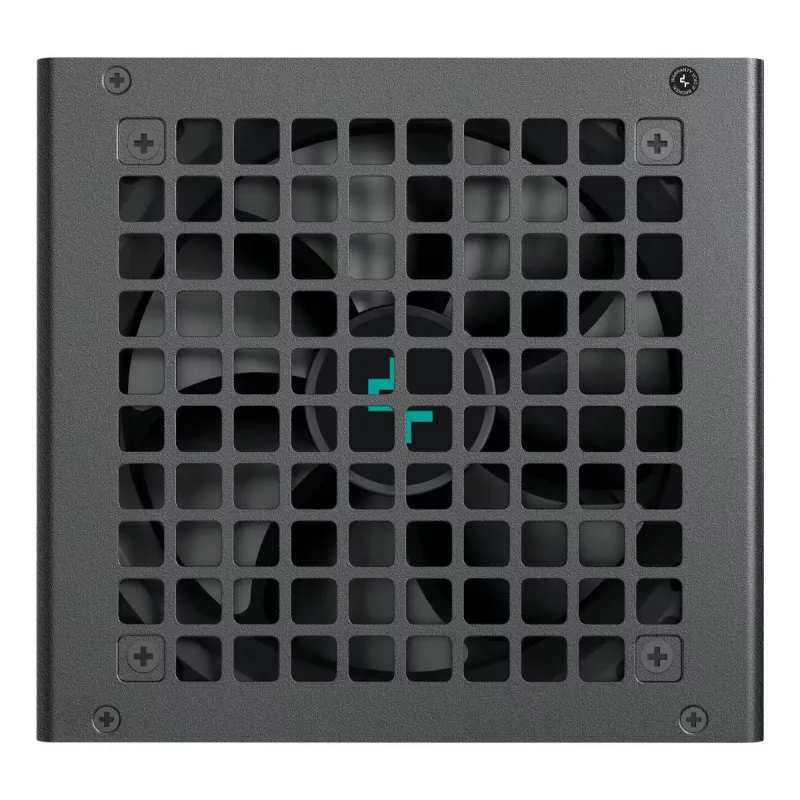

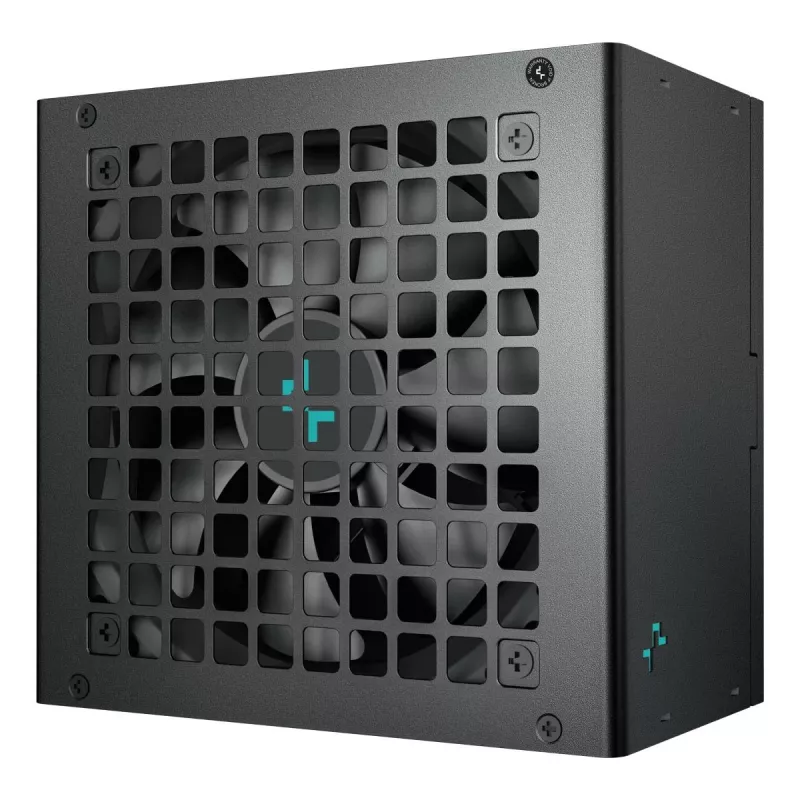

• Fan: 120 mm hydro-bearing
• Native PCIe 5.0 12VHPWR cable rated up to 300 W
• Connectors: three PCIe, two EPS
• Input: AC 100–240 V, 50/60 Hz
• Operating altitude: up to 5000 m

How to use

Install the PL650D into a standard ATX-compatible case, secure it with screws, and connect the 20+4 pin ATX cable to the motherboard. Use the included 12VHPWR cable for compatible PCIe 5.0 graphics cards or legacy PCIe connectors as needed. Route SATA and peripheral cables to storage and devices according to your case layout. Ensure the AC mains voltage matches the PSU input range and switch on the system using the case power button.

Recommendations

For reliable operation, keep the PSU intake and exhaust unobstructed, ensure adequate case airflow, and avoid operating the unit beyond its rated altitude or ambient temperature. Verify compatibility of the 12VHPWR connector with your graphics card and consult the card manufacturer for adapter guidance if required.
