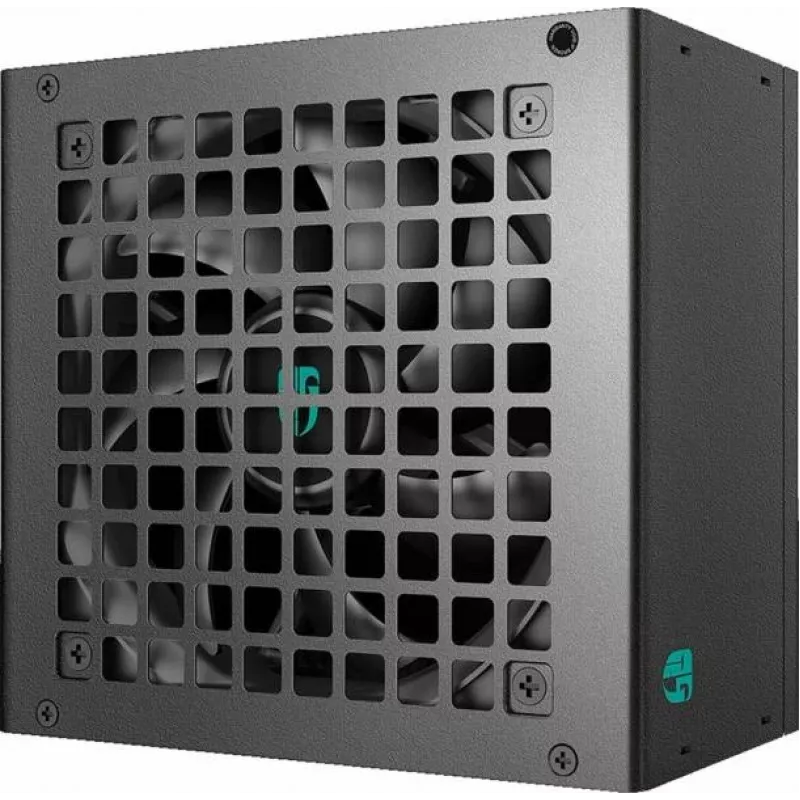

Deepcool PQA00G-FD voeding

The DeepCool PQA00G-FD is a 1000W fully modular ATX power supply from the GAMER STORM series, built for high-performance PC builds. It is 80 Plus Gold certified and features a native PCIe 5.1 12V-2x6 connector, full Japanese electrolytic capacitors, and a 120 mm FDB fan.

Key features

• 1000W total output with ATX12V V3.1 compliance
• 80 Plus Gold certified
• Native PCIe 5.1 12V-2x6 connector
• Full Japanese electrolytic capacitors
• Active PFC + Half-Bridge LLC + DC-to-DC topology
• Hold-up time of ≥16 ms at full load
• 120 mm FDB fan with dynamic speed adjustment
• Protection suite: OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO
• Fully modular cabling

Specifications

• Brand: DeepCool
• MPN: PQA00G-FD
• Product colour: Black
• Wattage: 1000W
• Efficiency rating: 80 PLUS Gold
• Modularity: Full Modular
• Form factor: ATX
• ATX standard: ATX12V V3.1
• 12V-2x6 / PCIe Gen5 connector: Yes
• Fan size: 120 mm
• Product dimensions: 15 x 14 x 8.6 cm
