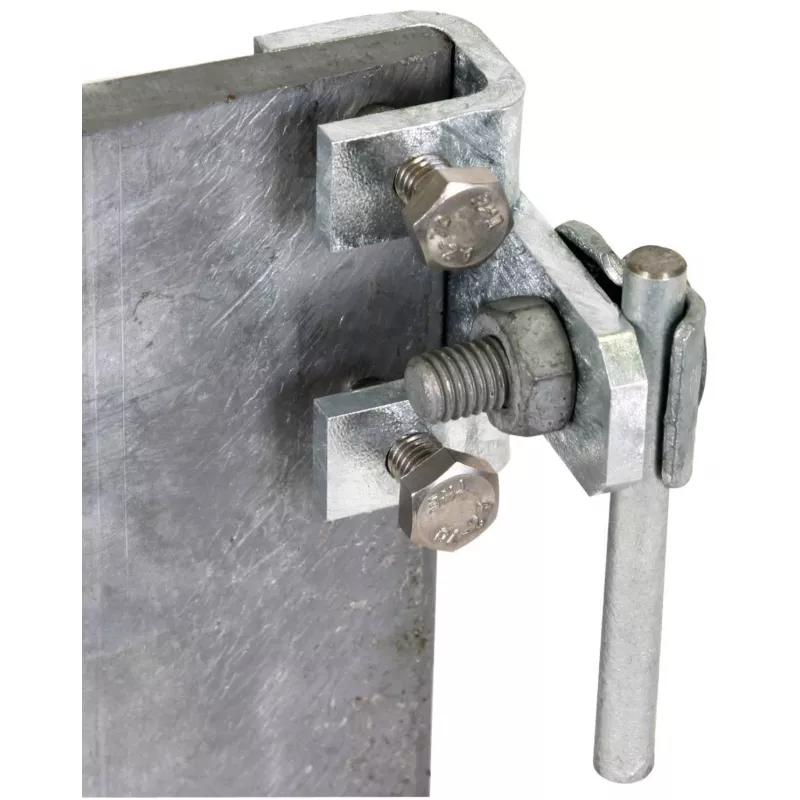

DEHN aansluitklem 372210 voor profielgeleider 3-18 mm, roestvrij staal

Electricians and lightning protection installers use the DEHN connection clamp 372210 to secure profile conductors with a thickness of 3 to 18 mm. It is built for outdoor use on building facades, rooftops, and earthing systems where a reliable mechanical and electrical connection is required.

Key specifications

• Product type: Connection clamp
• Conductor type: Profile conductors
• Conductor profile thickness: 3 - 18 mm
• Material: Stainless steel (V2A / AISI 304)
• Connection method: Screw clamp
• Screw size: M8
• Recommended tightening torque: 15 Nm
• Corrosion resistance: High
• Suitable for outdoor use: Yes
• Conductor material compatibility: Copper, steel, stainless steel
• Mounting type: Clamp-on
• Number of connections: 1
• Series: DEHN + SÖHNE

Why choose it

The stainless steel body withstands weather and UV exposure, maintaining a secure connection over time. The M8 screw allows for a strong, durable clamp force on profile conductors.

Ideal use cases

• Lightning protection systems on buildings
• Earthing and equipotential bonding installations
• Outdoor electrical connections requiring corrosion resistance

Good to know

The clamp is designed for a single profile conductor and is compatible with copper, steel, and stainless steel conductors. It is part of the DEHN + SÖHNE series for lightning protection applications.
