DEHN aansluitklem 620915 roestvrij staal 20mm voor aarding en bliksembeveiliging

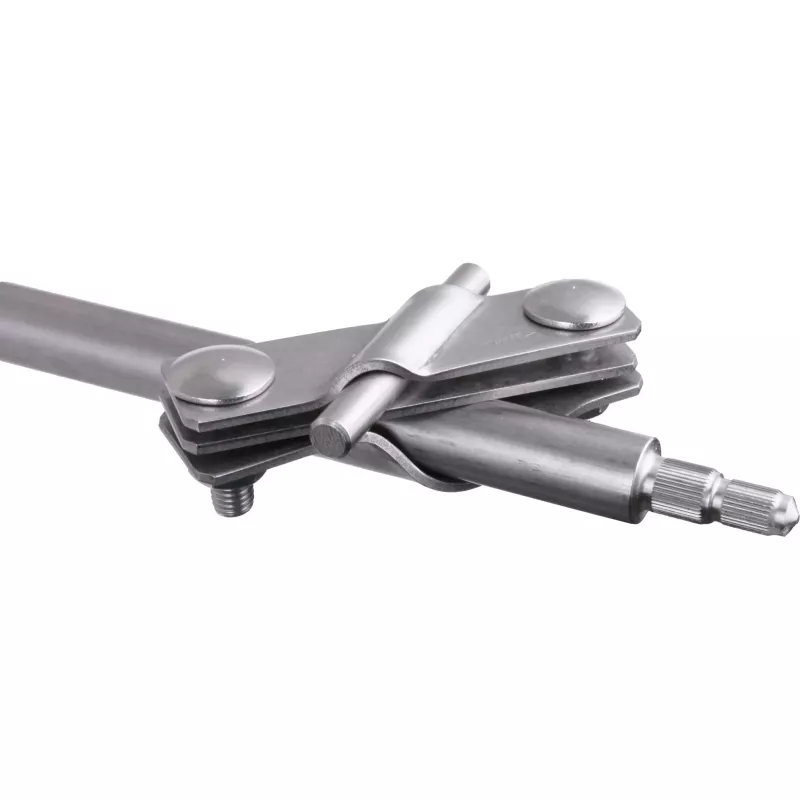

Connection clamp for earthing, lightning protection, and potential equalization, crafted from stainless steel (V2A) for high corrosion resistance. Suitable for pipes with a diameter of 20 mm and round conductors from 8 to 10 mm, or flat conductors up to 30 mm wide. The M10 connection thread ensures a secure and reliable connection. Designed for both indoor and outdoor use, this clamp offers robust and durable performance with easy installation.

Key specifications

• Material: Stainless steel (V2A)
• Suitable pipe diameter: 20 mm
• Conductor connection thread: M10
• Compatible round conductor diameter: 8 - 10 mm
• Compatible flat conductor width: up to 30 mm
• Mounting type: Pipe clamp / screw connection
• Corrosion resistance: High
• Standard compliance: DIN EN 62561-1 (VDE 0185-561-1)
• Series: DEHN 620 Series
• Usage environment: Indoor and outdoor
• Number of connection points: 1
• Design: Robust and durable
• Installation: Easy installation
