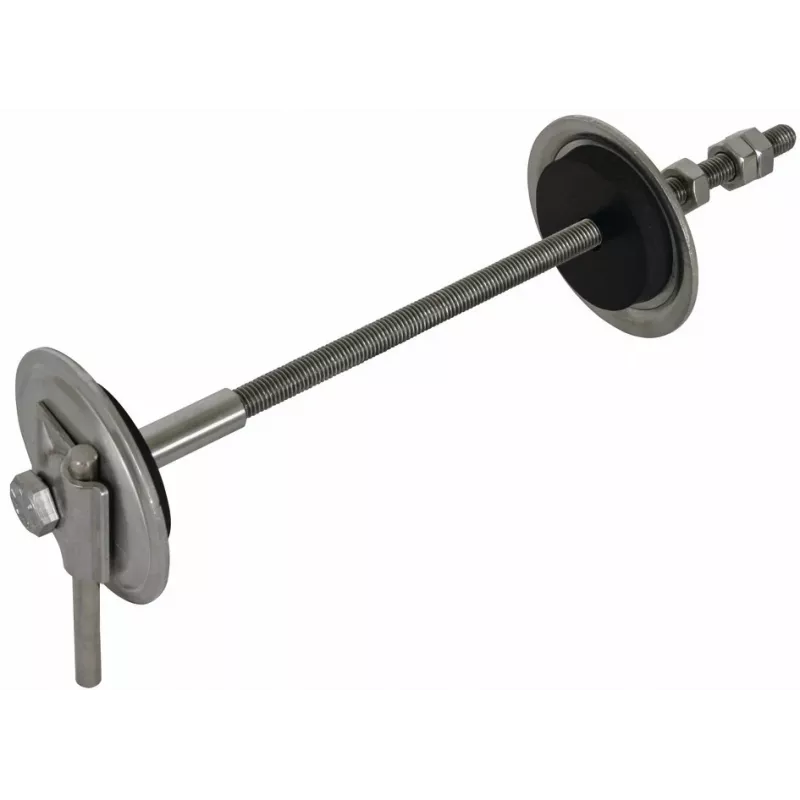

DEHN aardings-/wanddoorvoer 478450, 500-700 mm wanddikte, 720 mm lengte, RVS

Passing lightning protection conductors through walls or foundations while maintaining a watertight and gas-tight seal is a common challenge in building installations. The DEHN Earthing/Wall Feed-through 478450 solves this by providing a durable stainless steel conduit that accommodates wall thicknesses from 500 to 700 mm and offers a total length of 720 mm. Its M10 internal thread allows secure connection to round or flat conductors, ensuring reliable grounding continuity.

Who is it for

This feed-through is intended for electricians, lightning protection installers, and building contractors who need to route earthing conductors through walls, floors, or foundations in both indoor and outdoor environments. It is suitable for new construction and retrofit projects where a robust, corrosion-resistant passage is required.

Main features

• Adjustable for wall thicknesses between 500 mm and 700 mm
• Total length of 720 mm for deep penetrations
• Constructed from stainless steel (NIRO) for high corrosion resistance
• M10 internal thread for connecting round or flat conductors
• Watertight and gas-tight design
• UV resistant and suitable for temperatures from -40 °C to +80 °C

Specifications

• Product Type: Earthing/Wall Feed-through
• Material: Stainless Steel (NIRO)
• Total Length: 720 mm
• Adjustable Wall Thickness Range: 500 - 700 mm
• Conductor Connection Thread: M10 (internal thread)
• Conductor Compatibility: Round conductors (e.g., Rd 8-10), Flat conductors (e.g., Fl 30x3.5)
• Protection Class: IP67
• Operating Temperature Range: -40 °C to +80 °C
• UV Resistance: Yes
• Number of Conductors: 1

Tips

When installing, ensure the feed-through is properly sealed at both ends to maintain its watertight and gas-tight properties. Use appropriate sealing compounds or gaskets as recommended by local regulations. For optimal corrosion resistance, avoid contact with dissimilar metals unless proper isolation is provided.
