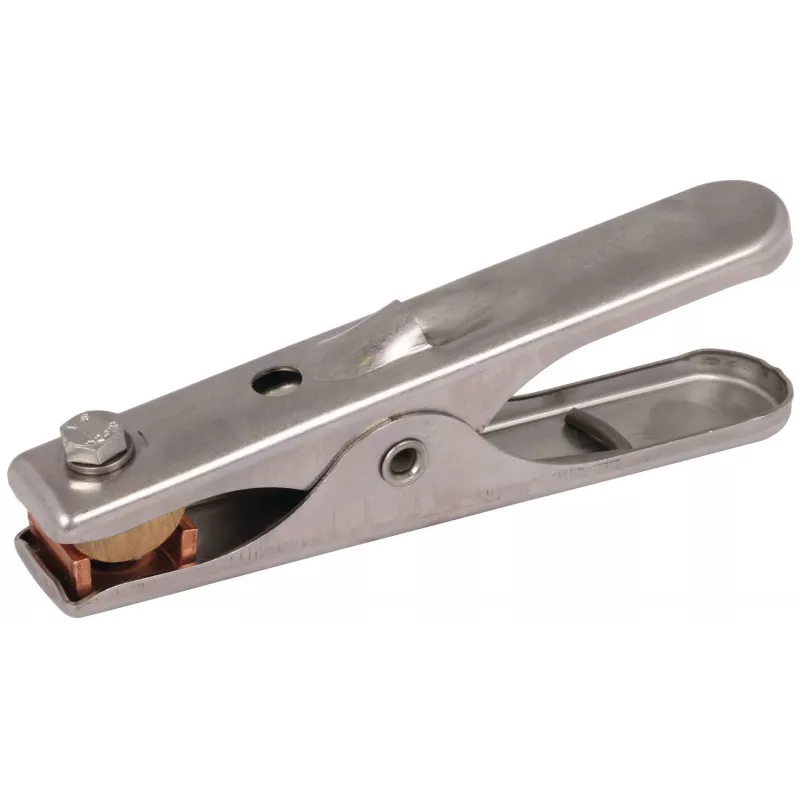

DEHN aardingsklem L 140 mm staal verzinkt zink 546025

Temporary earthing and short-circuiting of conductors demands a clamp that grips securely and withstands high fault currents. The DEHN 546025 earthing clamp provides a robust screw-clamp connection for round conductors from 6 to 20 mm diameter and flat conductors up to 20 mm width, ensuring reliable equipotential bonding during maintenance work.

Who is it for

Electrical engineers, maintenance technicians, and utility workers who need to establish safe temporary earth connections on copper, aluminum, or steel conductors in substations, switchgear, and overhead line applications.

Main features

• Galvanized zinc finish for high corrosion resistance
• Screw clamp mechanism for strong, vibration-resistant grip
• M8 screw terminal accepts earthing cables up to 25 mm²
• Rated short-circuit current of 1.5 kA for 1 second and 2.5 kA for 0.5 seconds
• Compact 140 mm overall length for easy handling in confined spaces

Specifications

• Product type: Earthing Clamp
• Material: Steel
• Surface finish: Galvanized Zinc
• Overall length: 140 mm
• Clamping range (round conductors): 6 - 20 mm diameter
• Clamping range (flat conductors): up to 20 mm width
• Connection type: M8 screw terminal
• Max. conductor cross-section: 25 mm²
• Rated short-circuit current (1s): 1.5 kA
• Rated short-circuit current (0.5s): 2.5 kA
• Application: Temporary earthing, short-circuiting, equipotential bonding
• Conductor material compatibility: Copper, Aluminum, Steel
• Insulation: Non-insulated
• Mounting: Direct clamping onto conductor

Tips

Always verify that the clamp is fully tightened and the conductor surface is clean before energizing. For aluminum conductors, use a suitable jointing compound to prevent oxidation at the contact point.
