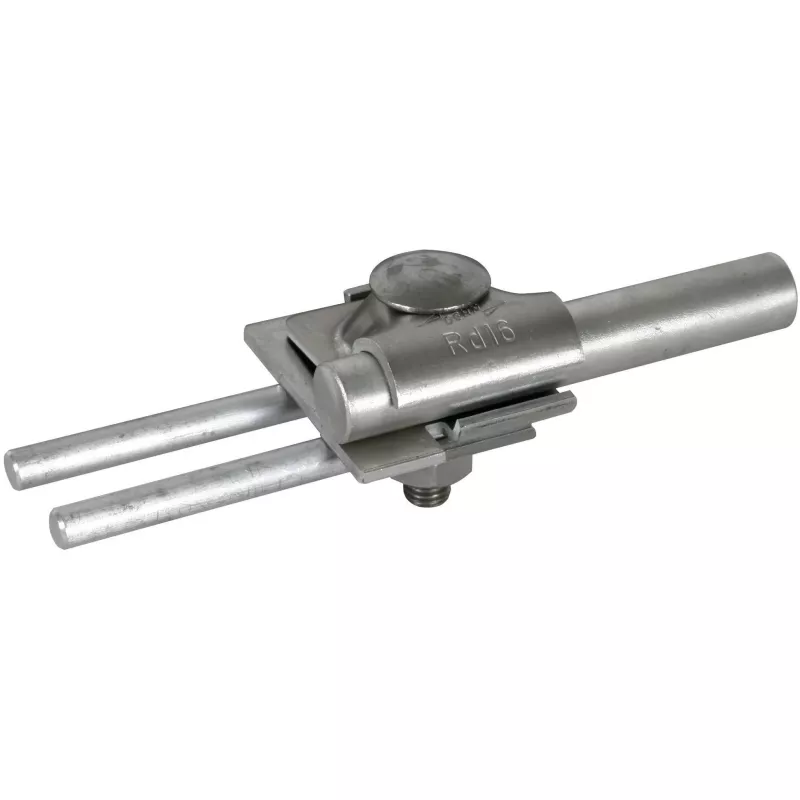

DEHN bliksemafleiderstaafklem voor 16 mm staaf en 8-10 mm geleider, aluminium 380116

In lightning protection systems, a reliable connection between the air-termination rod and the down conductor is critical for safely dissipating lightning current. The DEHN 380116 clamp solves this by providing a robust, corrosion-resistant aluminium connection for a 16 mm air-termination rod and an 8-10 mm round conductor.

Who is it for

This clamp is intended for installers and maintenance personnel working on lightning protection systems in outdoor and industrial environments. It is suitable for connecting air-termination rods to down conductors, ensuring a secure electrical path.

Main features

• Material: Aluminium, offering high corrosion resistance and electrical conductivity.
• Compatible with 16 mm diameter air-termination rods (Rd 16).
• Accepts round conductors with a diameter of 8 to 10 mm (Rd 8-10).
• Screw clamp connection for secure fastening.
• Suitable for outdoor use with UV resistance.

Specifications

• Product type: Air-termination rod clamp
• Material: Aluminium
• Rod diameter: 16 mm
• Conductor diameter: 8 - 10 mm
• Connection type: Clamp
• Fastening method: Screw clamp
• Number of connections: 1
• Application: Lightning protection systems
• Mounting type: For round conductors and air-termination rods
• Corrosion resistance: Yes
• UV resistance: Yes
• Installation environment: Outdoor, industrial
• Colour: Metallic (Aluminium)

Tips

Ensure the conductor and rod surfaces are clean before clamping to achieve optimal electrical contact. Tighten the screw clamp to the manufacturer's recommended torque to avoid damage and maintain a secure connection.
