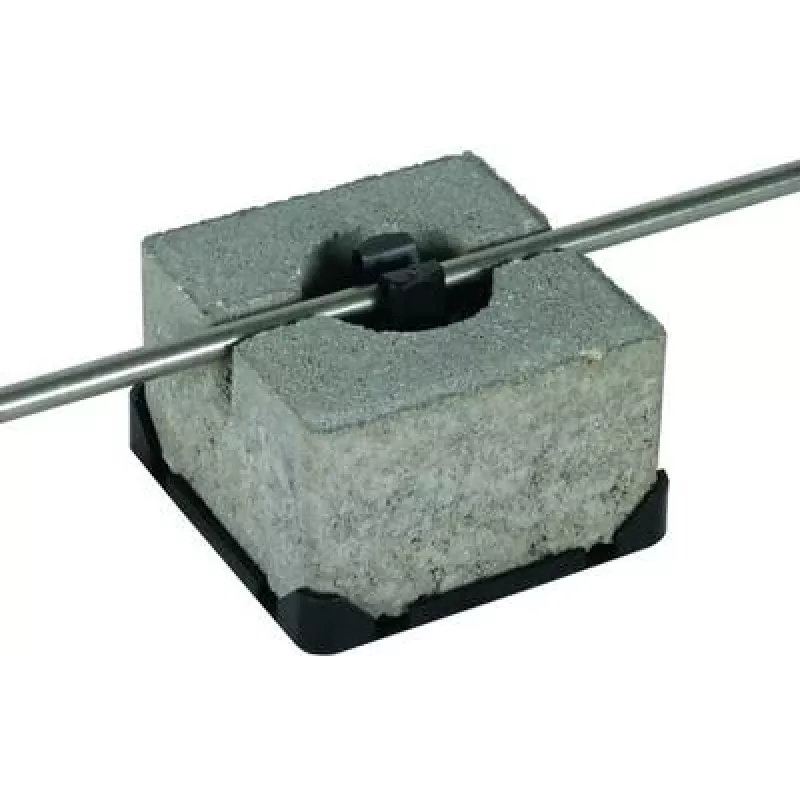

DEHN dakleiding-houder FB voor platte daken 253015

Roof conductor holder for lightning protection systems on flat roofs. The ballast-based design supports round and flat conductors without penetrating the roof membrane, providing tool-free installation on flat roof surfaces.

Advantages

UV-stabilized polypropylene holder with recycled material base ensures long-term durability in outdoor conditions. The non-penetrating ballast mounting preserves roof integrity and allows flexible placement.

Suitable for

• Lightning protection systems on flat roofs
• Round conductors with diameter 8 - 10 mm
• Flat conductors with dimensions 30 x 3.5 mm

Key specifications

• Conductor elevation height: 110 mm
• Base dimensions: 160 x 160 mm
• Temperature range: -30 °C to +80 °C
• Material: UV-stabilized polypropylene (holder), recycled material (base)
• Colour: Black

Recommendations

For reliable lightning protection on flat roofs, combine with DEHN conductors and connectors. Ensure proper ballast weight according to roof wind load requirements.
