DEHN DEHNcross kruisklem 319229 RVS voor ronde geleiders 7-10 mm

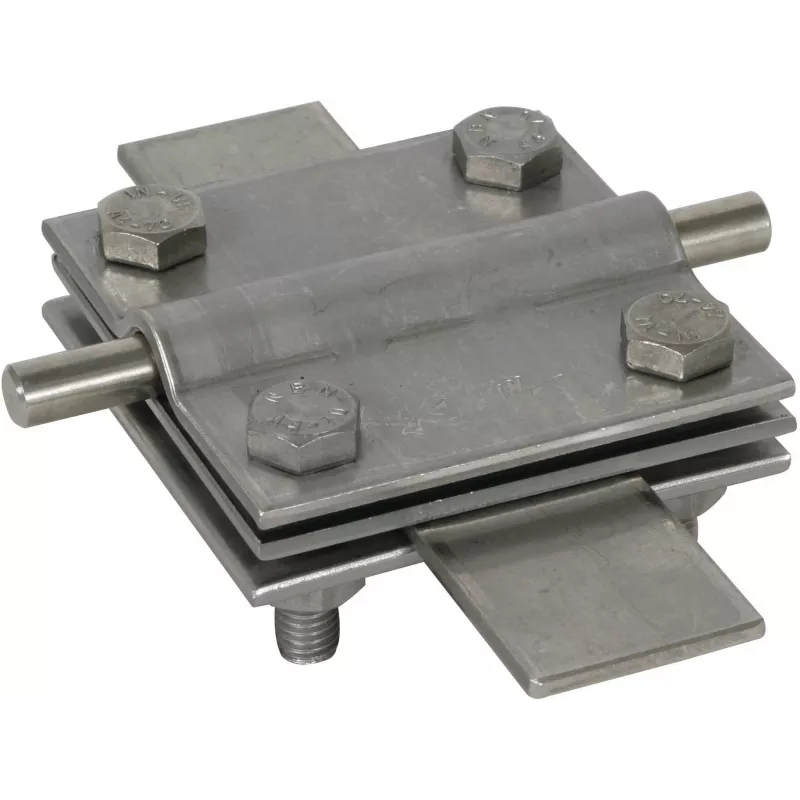

When lightning protection systems require a reliable 90-degree connection between two round conductors, the DEHN DEHNcross Cross Clamp 319229 provides a secure and corrosion-resistant solution. This stainless steel cross clamp is engineered for lightning protection, grounding, and equipotential bonding applications where durability and conductivity are critical.

Who is it for

Electricians, lightning protection installers, and maintenance professionals working on building protection systems or industrial grounding networks. It is suitable for those who need to connect round conductors with diameters from 7 to 10 mm at a right angle, ensuring a robust mechanical and electrical bond.

Main features

• Stainless steel (V2A, material 1.4301) construction for high corrosion resistance.
• Cross connection design for 90-degree conductor intersections.
• Accommodates round conductors with diameter 7–10 mm.
• Secure screw clamping with hexagon head screws M8.
• Complies with IEC/EN 62561-1 for lightning protection components.

Specifications

• Product type: Cross clamp / cross connector
• Series: DEHNcross
• Material: Stainless steel (V2A, 1.4301)
• Surface treatment: Untreated
• Conductor type: Round conductor
• Conductor diameter range: 7 - 10 mm
• Connection type: Cross connection (90°)
• Mounting type: Screw clamp
• Number of conductors: 2
• Screw type: Hexagon head screws M8
• Application: Lightning protection systems, grounding, equipotential bonding
• Standard compliance: IEC/EN 62561-1

Tips

Ensure conductor surfaces are clean before installation to achieve optimal contact. Tighten screws to the recommended torque for a durable connection. For outdoor use, the stainless steel material provides long-term resistance to environmental corrosion.
