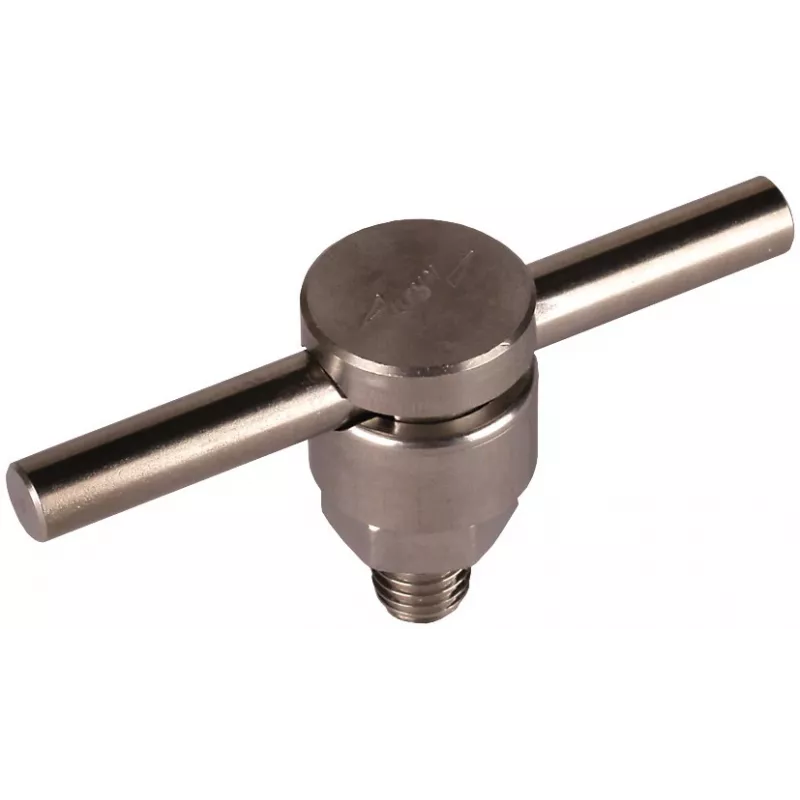

DEHN KS kruisverbinder roestvrij staal voor ronde leider 6-10 mm 301019

Lightning protection installers and earthing system technicians use the DEHN KS cross connector to join round conductors securely in cross or parallel configurations. The stainless steel construction ensures long-term corrosion resistance in outdoor and indoor environments.

Key specifications

• Material: Stainless steel (NIRO)
• Conductor diameter: 6–10 mm
• Connection: Screw clamp with M6 x 20 mm stainless steel screws
• Conductor type: Round
• Number of conductors: 2
• Application: Lightning protection and earthing systems
• Operating temperature: -40 °C to +80 °C
• UV resistant

Why choose it

The cross connector provides a reliable mechanical and electrical connection between round conductors. Its stainless steel body and screws withstand harsh weather, ensuring stable performance over time.

Ideal use cases

• Crossing round conductors in lightning protection systems
• Parallel connections in earthing grids
• Outdoor installations exposed to UV and corrosion

Good to know

Compliant with EN 62561-1 for lightning protection components. The connector is designed for conductors with a diameter of 6 to 10 mm.
