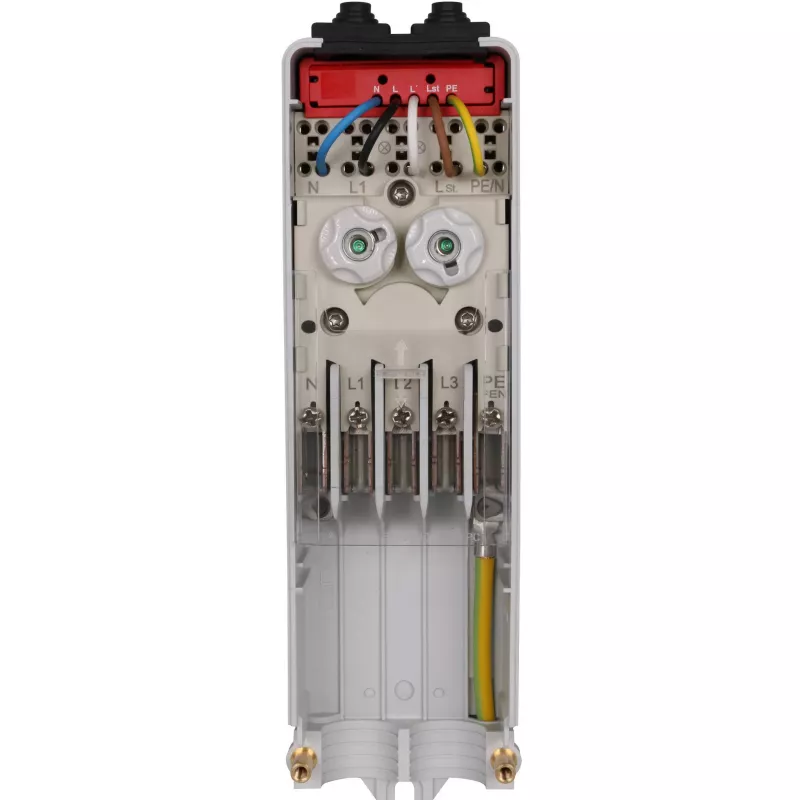

Dehn SK EK480 G2S-2d LM DCOR 900443 mast-zekeringkast

Mast fuse box for outdoor power distribution, supporting D01/D02 fuses up to 63 A at 400 V AC. The polycarbonate housing with IP54 protection ensures reliable operation in street lighting and traffic control systems.

Advantages

Two-pole design with screw terminals for conductors up to 25 mm². Mast mounting fits diameters 60–180 mm. Cable glands: 2x M25, 1x M32.

Suitable for

• Street lighting installations
• Traffic control systems
• Outdoor power distribution

Key specifications

• Number of poles: 2
• Fuse type: D01 / D02 (E14/E18)
• Max. nominal current: 63 A
• Max. nominal voltage: 400 V AC
• Housing material: Polycarbonate (PC)
• Protection class: IP54
• Impact resistance: IK08
• Mounting type: Mast mounting
• Mast diameter range: 60 - 180 mm
• Cable entry: 2x M25, 1x M32 cable glands
• Terminal type: Screw terminals
• Max. conductor cross-section: 25 mm²
• Colour: Light grey (RAL 7035)
• Equipped with: D0 fuse bases, N-terminal, PE-terminal
• Operating temperature range: -25 °C to +40 °C

Recommendations

Ideal for outdoor installations requiring a compact, weather-resistant fuse box with flexible mast mounting.
