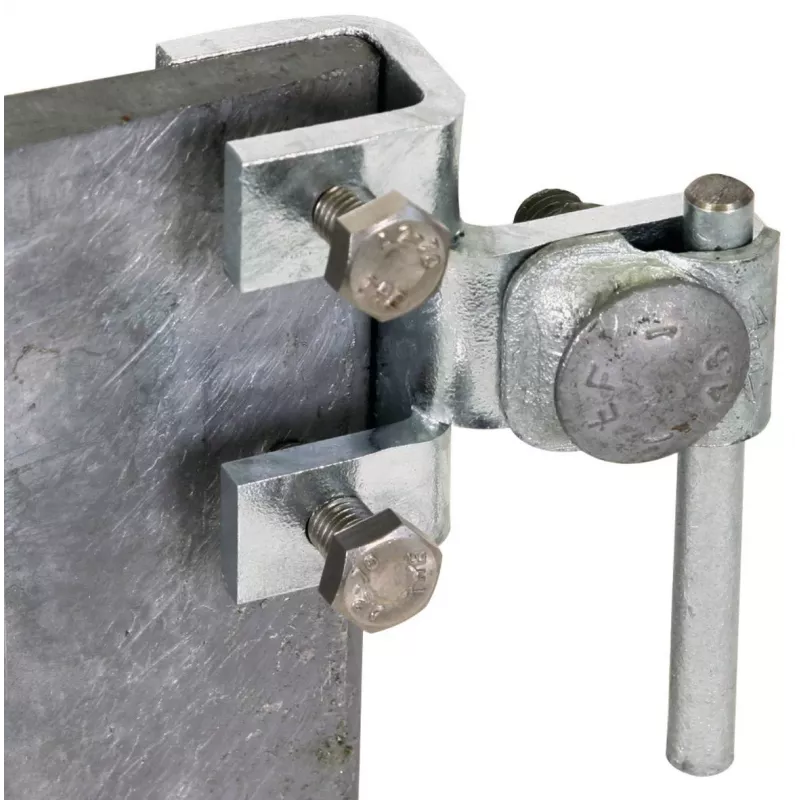

DEHN verbindingsklem St/tZn verticaal voor profiel 18-35 mm 372140

This DEHN connection clamp is specifically engineered for vertical mounting on steel profiles with a clamping range of 18 to 35 mm, making it a reliable choice for lightning protection and earthing systems. Unlike generic clamps, it is hot-dip galvanized (tZn) for high corrosion resistance, ensuring long-term durability in outdoor or indoor environments.

Highlights

• Hot-dip galvanized steel construction for excellent corrosion resistance
• Vertical mounting orientation for secure attachment to steel profiles
• Accepts round conductors with diameter 8–10 mm
• Complies with DIN EN 62561-1 (VDE 0185-561-1)
• Simple screw connection with M8 screw

In daily use

Installers will appreciate the clamp's straightforward screw connection, which allows for quick and secure fastening of a single round conductor. The vertical orientation suits typical structural steel profiles, and the hot-dip galvanization provides robust protection against weathering, making it suitable for both indoor and outdoor applications.

Full specifications

• Material: Steel (St), hot-dip galvanized (tZn)
• Application: Lightning protection and earthing systems
• Mounting orientation: Vertical
• Profile clamping range: 18–35 mm
• Conductor type: Round conductor
• Conductor diameter range: 8–10 mm
• Standard compliance: DIN EN 62561-1 (VDE 0185-561-1)
• Connection type: Screw connection
• Screw size: M8
• Number of conductors: 1

Final note

With its precise clamping range and corrosion-resistant finish, this clamp is a dependable component for professional earthing installations.
