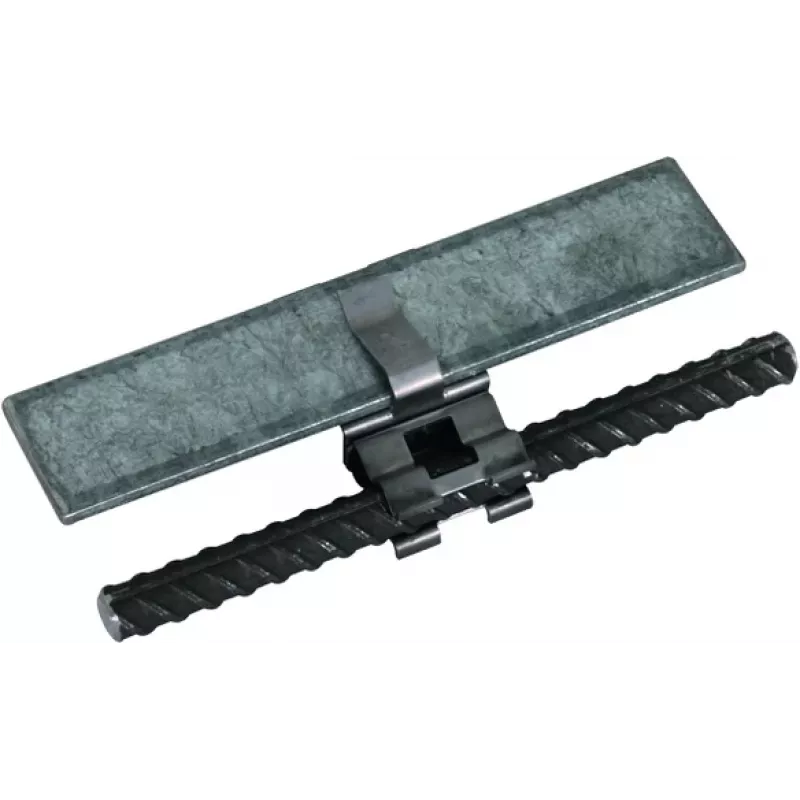

DEHNclip DC BK6 FL30 StSt wapeningsbeugel voor Rd6/FL30mm 308140

Electricians and lightning protection installers use the DEHNclip DC BK6 FL30 StSt to connect round or flat conductors directly to reinforcement steel in concrete structures. This clamp provides a reliable equipotential bonding point without welding or drilling.

Key specifications

• Material: Stainless steel (StSt)
• Connects round conductor up to 6 mm diameter or flat conductor up to 30 mm width
• Clip-on mounting to reinforcement steel
• One external connection via screw
• Blank (uncoated) design
• High corrosion resistance

Why choose it

Stainless steel construction ensures long-term durability in concrete and outdoor environments. The clip-on design speeds installation, and the screw connection secures the external conductor firmly.

Ideal use cases

• Equipotential bonding in reinforced concrete
• Earthing and lightning protection systems
• Connecting round or flat conductors to rebar

Good to know

The DEHNclip DC BK6 FL30 StSt is part of the DEHNclip series and complies with EN 62561-1 for lightning protection components.
