Dell WD19TBS USB-C dockingstation (J8C79) - Thunderbolt 3, 130W Power Delivery, triple-display-ondersteuning

Drive up to three external displays at Full HD 60Hz while delivering 130W of power to your Dell laptop with the Dell WD19TBS USB-C Docking Station. This Thunderbolt 3 dock is built for high-performance productivity.

Overview

The Dell WD19TBS is a versatile docking station that connects via a single USB-C (Thunderbolt 3) cable to compatible Dell Latitude, Precision, and XPS laptops. It expands your workspace with multiple video outputs, USB ports, and Gigabit Ethernet, while simultaneously charging your laptop.

What stands out

• Supports up to three external displays: single 5K @ 60Hz, dual 4K @ 60Hz, or triple Full HD @ 60Hz (with Thunderbolt host).
• Delivers up to 130W power delivery to Dell systems (90W to non-Dell systems).
• Includes 2 DisplayPort 1.4, 1 HDMI 2.0, and 1 USB-C with DisplayPort Alt Mode for flexible monitor connections.
• Features 3 USB 3.1 Gen 1 Type-A ports and 2 USB-C ports (one front, one rear) for peripherals.
• Gigabit Ethernet with PXE Boot, Wake-on-LAN, and MAC Address Pass-Through for enterprise manageability.

Technical details

• Host Interface: USB-C (Thunderbolt 3)
• Video Outputs: 2 x DisplayPort 1.4, 1 x HDMI 2.0, 1 x USB-C (DisplayPort Alt Mode)
• Max Resolution (Thunderbolt Host): 5120 x 2880 @ 60Hz (single), 3840 x 2160 @ 60Hz (dual), 1920 x 1080 @ 60Hz (triple)
• Max Resolution (USB-C Host): 3840 x 2160 @ 30Hz (single), 1920 x 1080 @ 60Hz (dual)
• USB Ports: 3 x USB 3.1 Gen 1 Type-A, 2 x USB-C
• Network: Gigabit Ethernet (RJ-45)
• Audio: 1 x Headset/Mic Combo (front), 1 x Audio Line-out (rear)
• Power Delivery: Up to 130W (Dell), 90W (non-Dell)

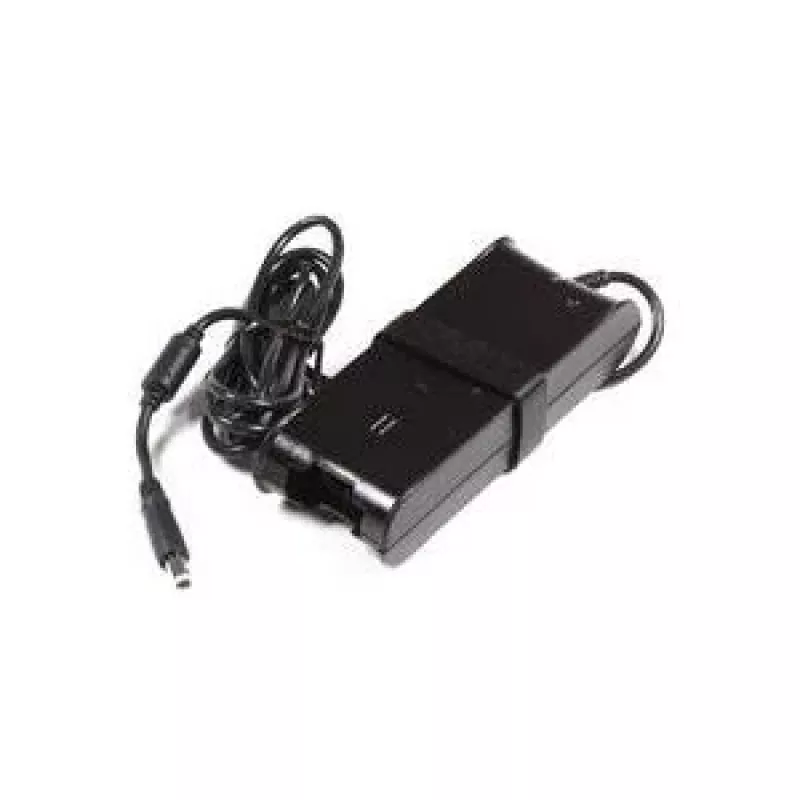

• Power Adapter: 180W AC Adapter
• Security: Kensington lock slot
• Compatibility: Dell Latitude, Precision, XPS with Thunderbolt 3 or USB-C DP Alt Mode & Power Delivery
• OS Support: Windows 10, Ubuntu 18.04, Red Hat Enterprise Linux 8.0

Our verdict

The Dell WD19TBS is a robust docking solution for professionals needing multi-display setups and reliable power delivery. Its Thunderbolt 3 connectivity and enterprise features make it a solid choice for Dell laptop users.
