DeLOCK 61066 interne USB 3.2 Gen 1 adapter M.2 stekker zwart

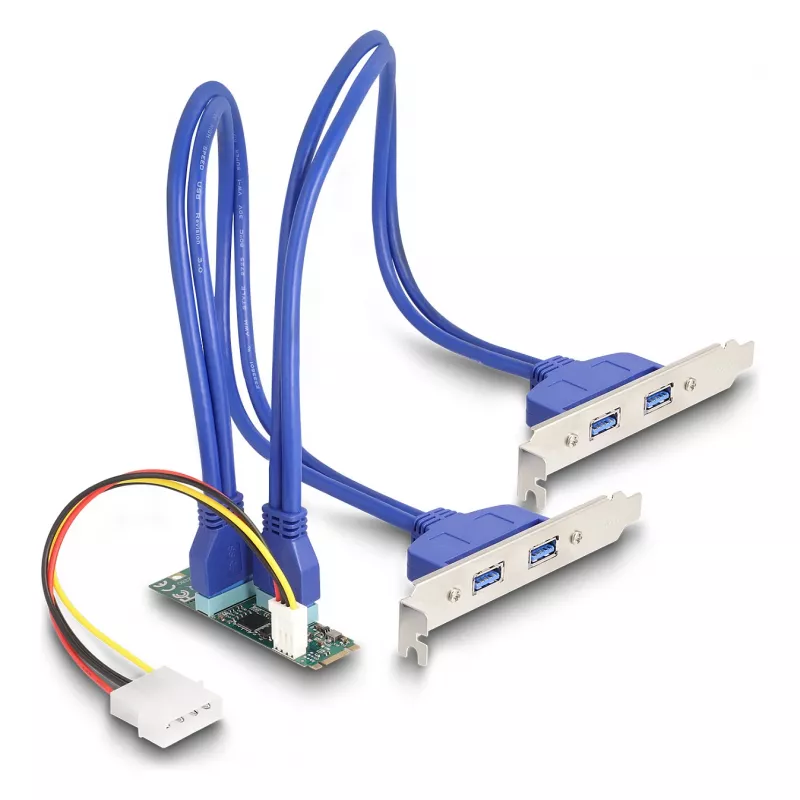

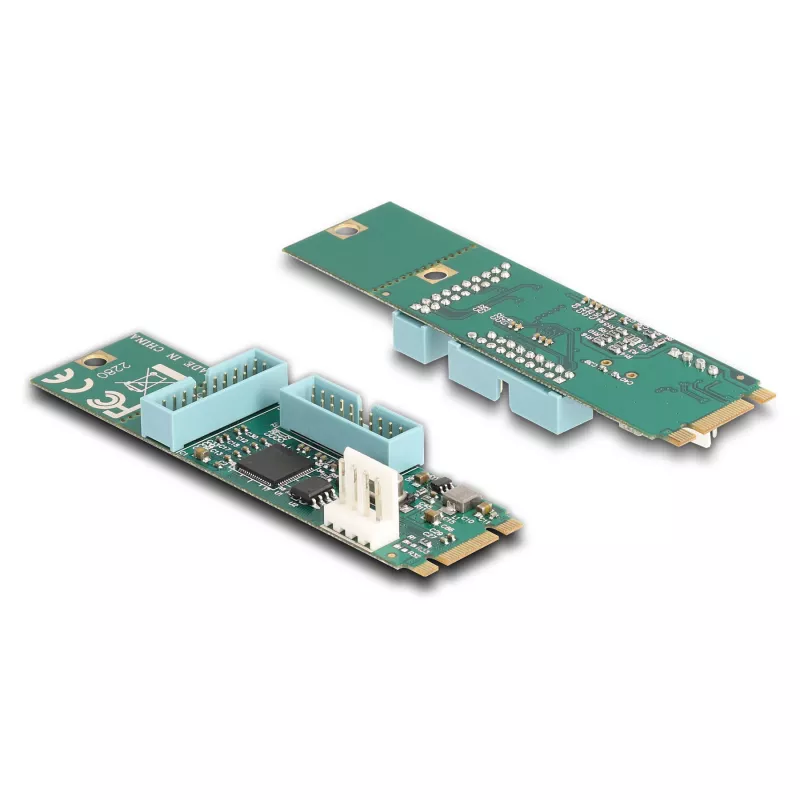

The DeLOCK 61066 is an internal USB 3.2 Gen 1 adapter with an M.2 male host interface that expands a computer system by four USB 5 Gbps Type-A female ports. The compact adapter measures 22 mm x 80 mm x 17 mm and is designed to be mounted via the slot bracket so the additional USB ports are accessible from the system chassis.

Advantages

This adapter provides four additional USB 3.2 Gen 1 (5 Gbps) Type-A ports while occupying an M.2 slot, offering a space-saving solution for increasing onboard USB connectivity. It is compatible with common operating systems including Windows 10, Windows 11 and Linux (Kernel 6.2), and its small form factor and slot-bracket mounting make integration into desktop systems straightforward.

Suitable for

• Adding extra USB 3.2 Gen 1 Type-A ports to a desktop PC
• Systems with an available M.2 slot where external USB ports are required
• Users who need multiple high-speed USB connections for peripherals or storage

Key specifications

• Manufacturer: DELOCK
• Model: 61066
• Interface: M.2 male (host)
• Ports: 4 × USB Type-A female
• USB standard: USB 3.2 Gen 1 (up to 5 Gbps)
• Compatibility: Windows 10, Windows 11, Linux Kernel 6.2
• Dimensions: 22 mm × 80 mm × 17 mm
• Colour: Black (product also listed with Blue, Green, Grey variants)
• MPN: 61066
• EAN: 4043619610662

How to use

Install the adapter into a compatible M.2 slot on the motherboard using the provided slot bracket so the four Type-A ports are accessible from the case rear. After physical installation, boot the system and install or verify drivers for Windows 10/11 or Linux Kernel 6.2 as required. Connect USB devices to the Type-A ports as needed.

Recommendations

Ensure your motherboard M.2 slot supports the required host interface for USB functionality and check available power delivery for connected devices; use powered USB hubs when connecting multiple high-power peripherals.
