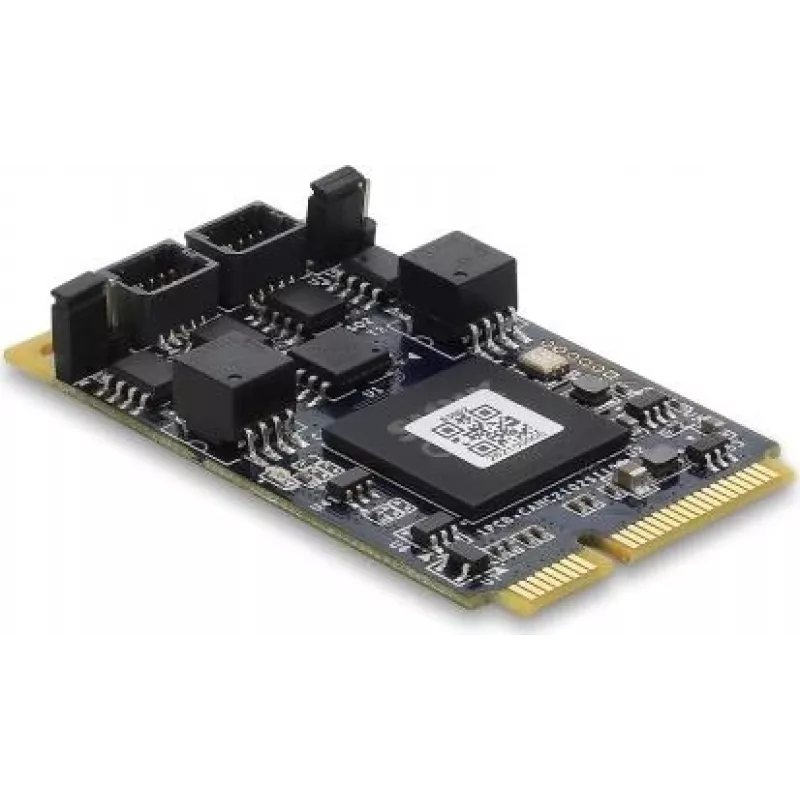

DELOCK 63002 CAN 2.0 / CAN FD mini PCIe-interfacekaart, 2 x D-Sub 9 pin, tot 8 Mbps, galvanische scheiding & overspanningsbeveiliging

For industrial and embedded applications demanding reliable CAN communication, the Delock 63002 stands apart by combining dual CAN FD channels on a single Mini PCIe card with robust galvanic isolation and overvoltage protection. Unlike basic CAN adapters, this card supports both CAN 2.0 A/B and CAN FD at up to 8 Mbps, enabling high-speed data exchange in harsh electrical environments. The two D-Sub 9 connectors provide direct connection to CAN networks without additional breakout cables, while the selectable 120 Ω termination resistors allow flexible bus configuration. Built around the proven IXXAT chipset, it ensures broad operating system compatibility and deterministic real-time behavior.

Highlights

• Dual-channel CAN 2.0 A/B and CAN FD interface with data rates up to 8 Mbps
• Mini PCIe full-size form factor for embedded systems and industrial PCs
• Galvanic isolation and overvoltage protection on each channel for enhanced safety
• Two D-Sub 9 pin male connectors for direct CAN bus wiring
• Selectable 120 Ω termination resistors per channel via jumpers
• Supports listen-only and self-reception modes for diagnostics and testing
• Wide operating temperature range from -40 °C to 85 °C
• Low power consumption of approximately 1.5 W

In daily use

Integrating the Delock 63002 into a vehicle, automation, or laboratory setup is straightforward thanks to its standard Mini PCIe slot compatibility. The card is recognized by Windows and Linux operating systems, allowing immediate access to CAN networks through common software tools. The galvanic isolation prevents ground loops and protects the host system from voltage spikes, while the overvoltage protection guards against transient surges often present in automotive and industrial environments. The two independent channels can be used to connect to separate CAN buses or to create a redundant link, and the selectable termination resistors simplify network topology adjustments without external components.

Full specifications

• Brand: Delock
• Model: 63002
• MPN: 63002
• EAN: 4043619630028
• Host interface: Mini PCIe
• Expansion card standard: Mini PCIe full-size
• Output interface: 2 x D-Sub 9 pin male
• Supported protocols: CAN 2.0 A/B, CAN FD
• Maximum data transfer rate: 8 Mbps
• Chipset: IXXAT
• Galvanic isolation: Yes
• Overvoltage protection: Yes
• Selectable termination resistor: 120 Ω per channel
• Operating modes: Listen-only, self-reception
• Operating temperature: -40 °C to 85 °C
• Storage temperature: -40 °C to 85 °C
• Operating relative humidity: 5% to 95% non-condensing
• Power consumption: 1.5 W typical
• Operating system support: Windows 7/8/8.1/10/11 (32/64 bit), Linux Kernel 2.6.x or higher
• Compliance: RoHS, CE, FCC

Final note

The Delock 63002 is a dependable choice for engineers who need high-speed, isolated CAN FD connectivity in a compact Mini PCIe form factor, backed by industrial-grade temperature tolerance and low power draw.
