DeLOCK 88610 PCIe-interfacekaart RJ-45 Intel i350 4 Gbit/s

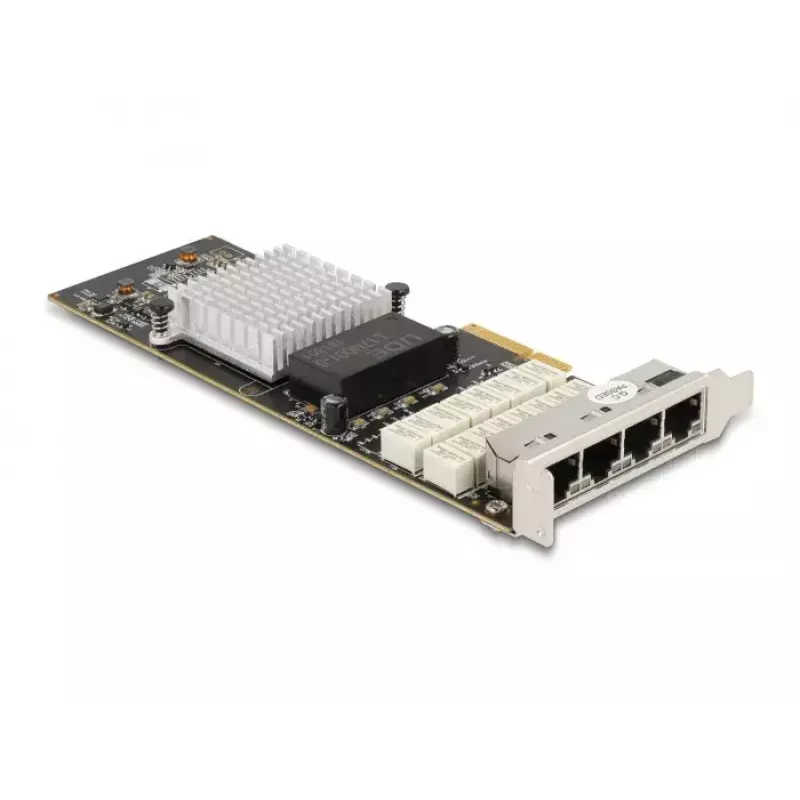

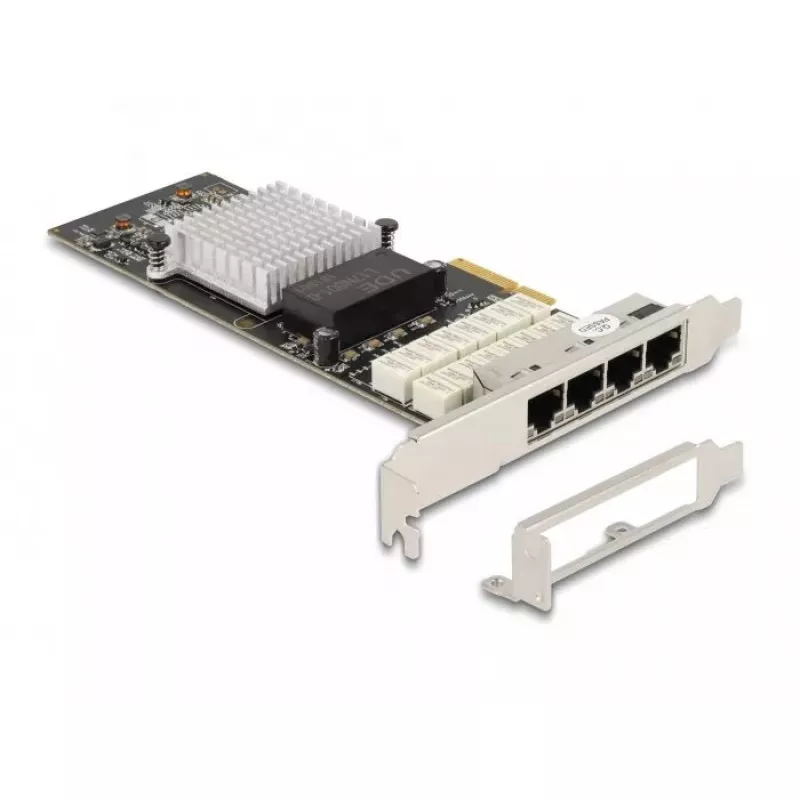

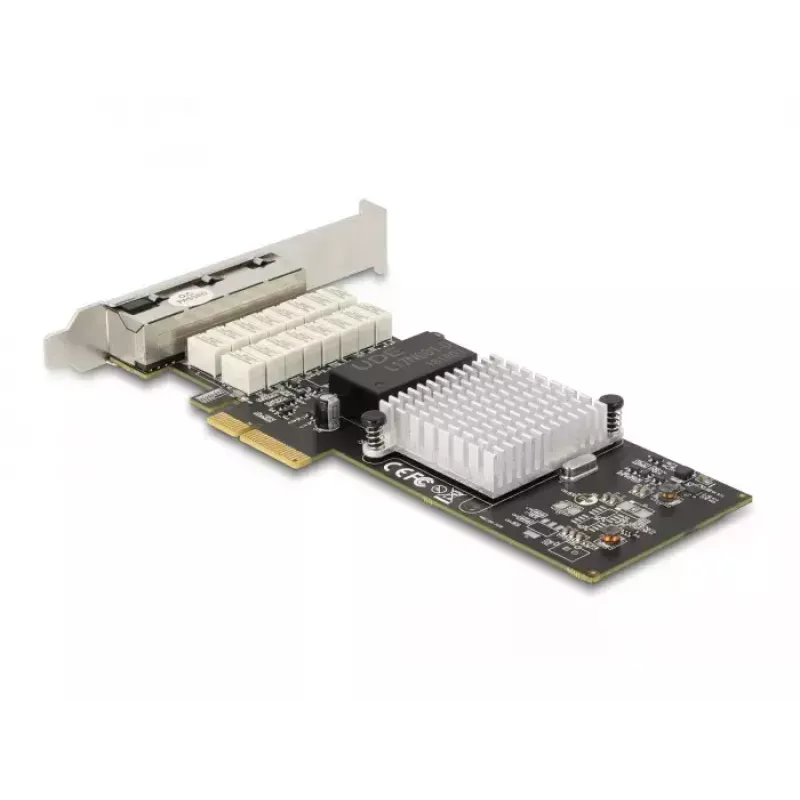

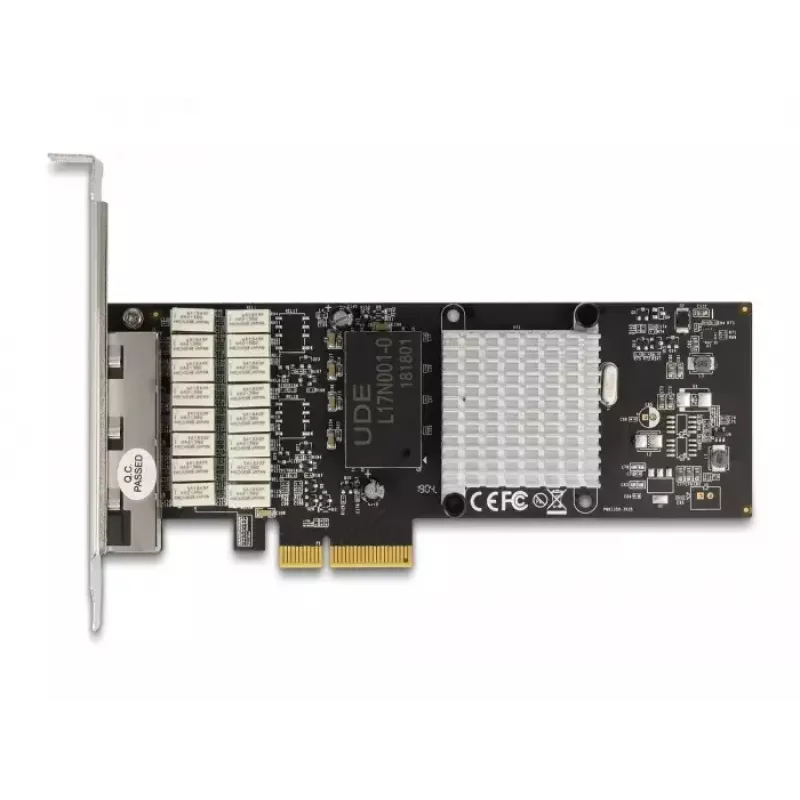

The DeLOCK 88610 PCIe interface card is an internal network adapter with four RJ-45 ports based on the Intel i350 chipset. It provides up to 4 Gbit/s aggregate throughput and integrated LED indicators for link and activity status. The card supports common networking standards such as IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az and IEEE 802.1Q, and is designed for installation in PCI Express slots of standard PCs and server appliances.

Advantages

The card offers four Gigabit Ethernet ports grouped into two bypass pairs to maintain network continuity in case of a host failure. Bypass mode is automatically activated on detection of IPS power-down, BIOS boot, OS or application failure; mechanical relays reroute traffic to bypass a faulty appliance. The bypass circuit functions without external power, ensuring the physical network link remains intact even when the host is powered down. LED indicators provide simple visual monitoring of link and activity.

Suitable for

Key specifications

How to use

Install the card into an available PCI Express slot in the host system, secure it in the chassis, and connect Ethernet cables to the RJ-45 ports. Configure the host operating system or appliance to recognize the Intel i350 network interfaces and assign network roles as required. If using bypass functionality, configure the appliance or management software so that the adapter detects power-down or software failure conditions and engages the bypass automatically. Refer to the host appliance documentation and driver installation instructions for detailed setup steps.

Recommendations

Use shielded Ethernet cabling and ensure proper grounding when deploying in server environments. Test bypass behaviour in a controlled maintenance window to confirm automatic failover works with your appliance and drivers. Keep firmware and drivers for the Intel i350 chipset up to date for best stability and compatibility.
