DeLOCK 92000 USB Type-C hub 5000 Mbit/s HDMI RJ-45 USB 3.2

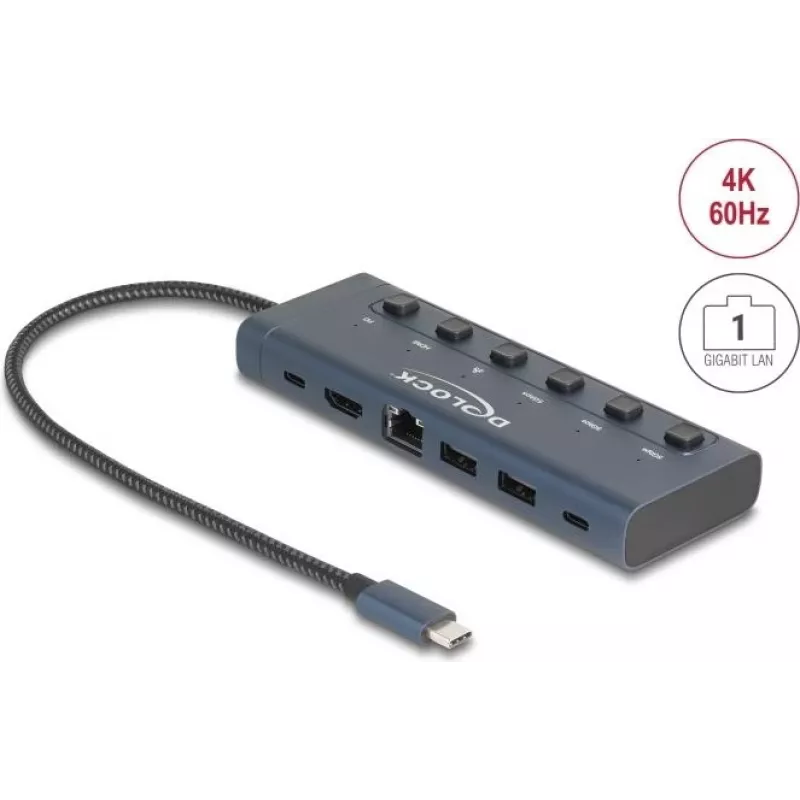

The DeLOCK 92000 USB Type-C Hub connects to a computer via a USB-C™ port with DisplayPort Alt Mode or a Thunderbolt™ 3/4 port and provides multiple interfaces including HDMI, Gigabit Ethernet (RJ45) and USB 3.2 ports. The HDMI output supports up to 4K resolution. The hub includes two USB Type-A ports and one USB Type-C port for connecting peripherals and data transfer at up to 5 Gbit/s.

Advantages

The docking station integrates a Gigabit LAN interface for wired network access and supports USB Power Delivery (USB PD 3.0) with up to 90 W charging via the USB-C power input. Each port has a dedicated switch with an LED indicator, allowing individual ports to be turned on or off for flexible control.

Suitable for

Key specifications

How to use

Connect the hub to a host computer using the USB-C cable into a USB-C port that supports DisplayPort Alt Mode or a Thunderbolt 3/4 port. Attach an HDMI cable from the hub to an external monitor to enable video output. Connect Ethernet via the RJ45 port for wired network access. Plug peripherals into the USB Type-A or USB-C ports. To charge the host device while using the hub, connect a compatible USB-C power adapter to the hub’s PD input; the hub supports charging up to 90 W.

Recommendations

For optimal performance, use a host port that supports DP Alt Mode or Thunderbolt 3/4 and a quality HDMI cable for 4K video. Use a power adapter that supplies sufficient wattage (up to 90 W) when charging laptops through the PD port. Switch ports off when not in use to reduce power draw and control connected devices during meetings.
