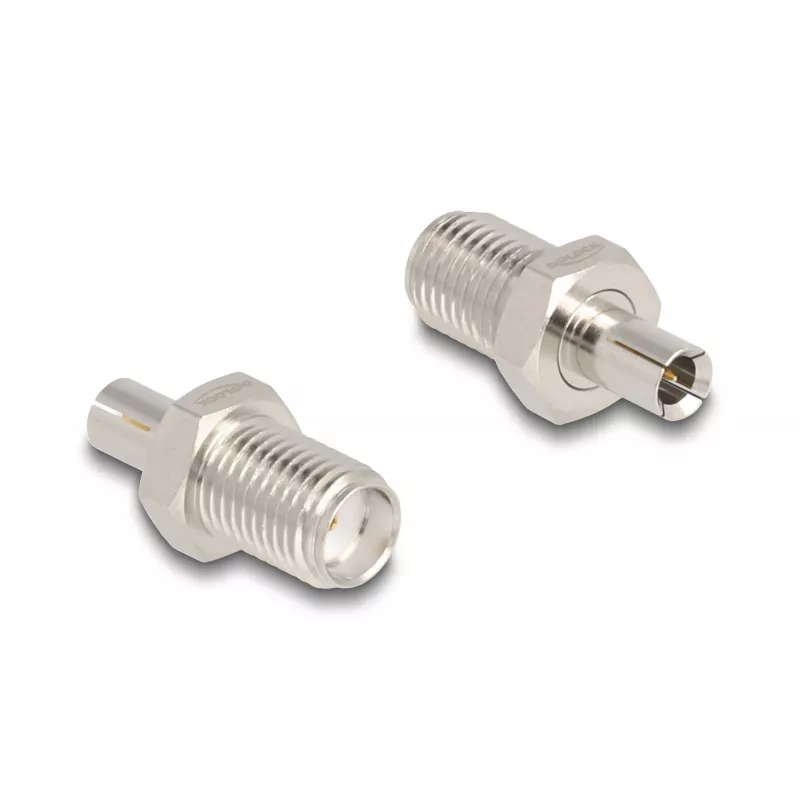

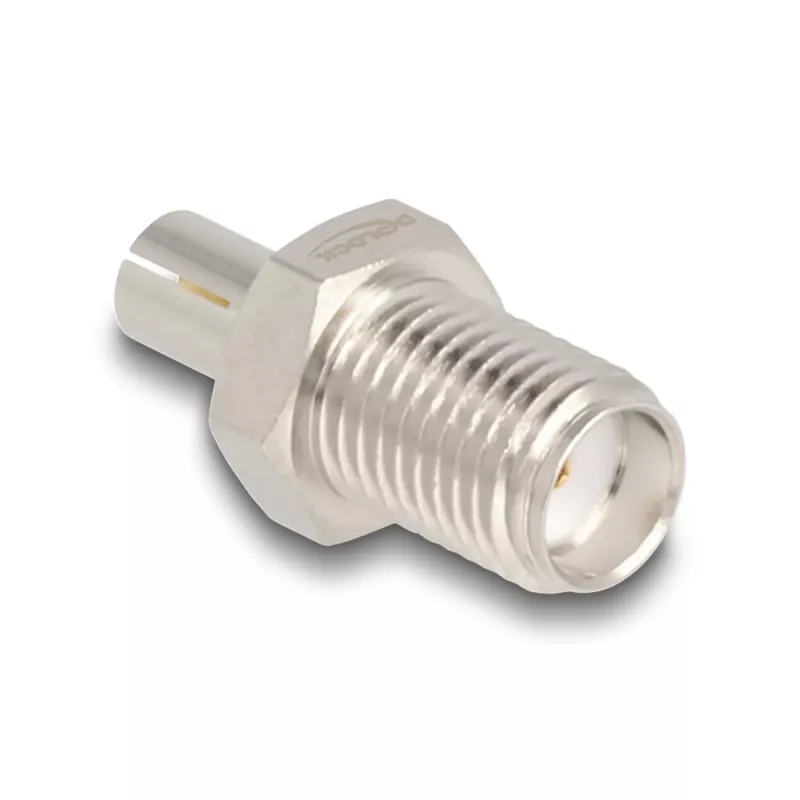

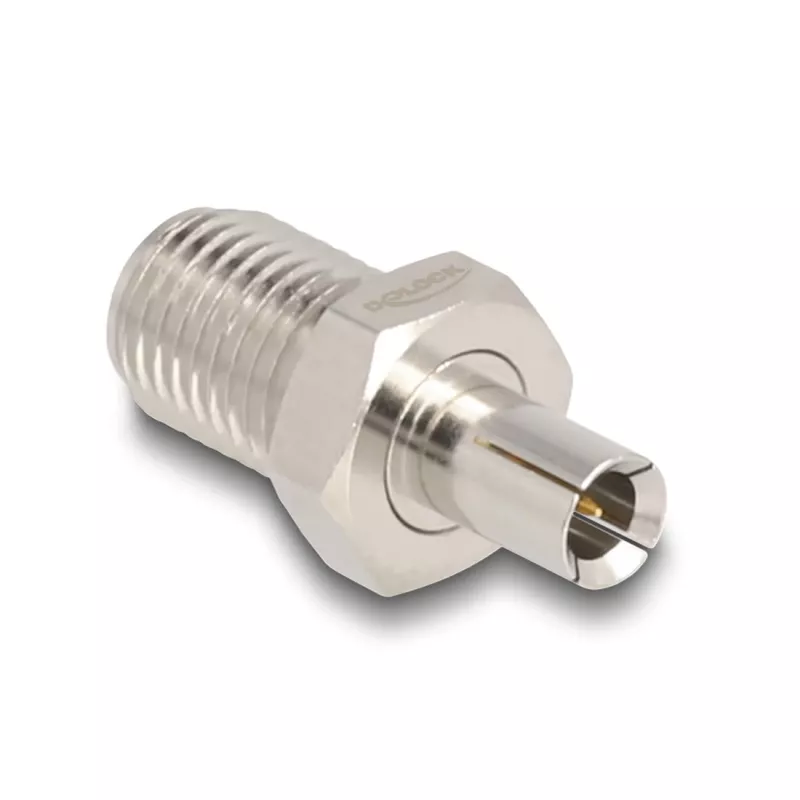

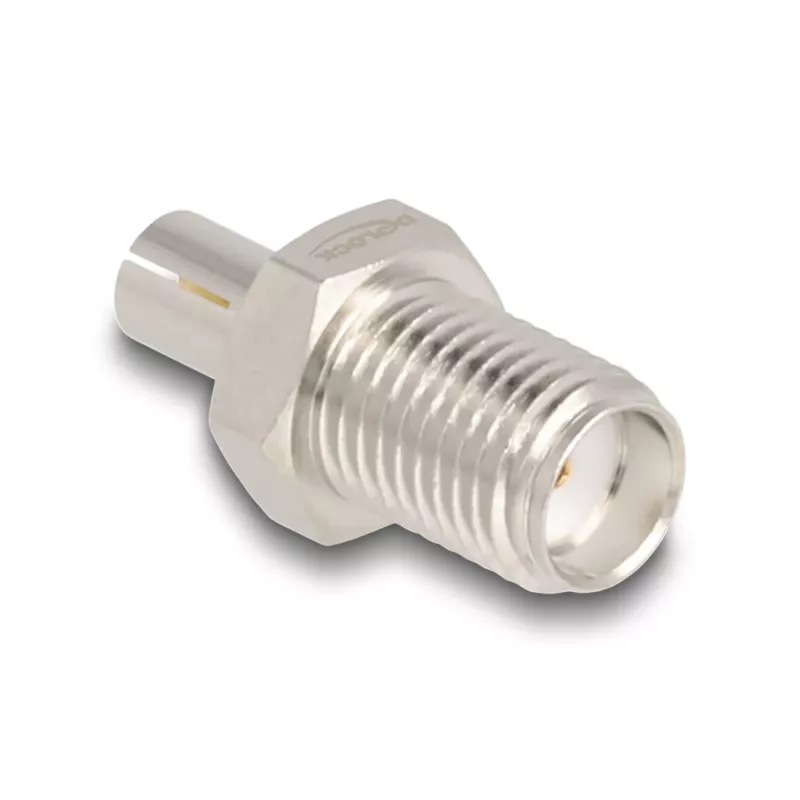

DeLOCK adapter SMA-bus naar TS9-stekker SMA TS9 8mm 16,8mm

This adapter by Delock is suitable for connecting components of radio frequency technology. The DeLOCK Adapter SMA jack to TS9 plug provides a compact connection solution with SMA and TS9 interfaces, designed for reliable signal transmission in antenna, modem and RF accessory setups. It is finished in silver and has a compact form factor with an 8 mm width and 16.8 mm depth.

Advantages

The adapter offers compatibility between SMA female (jack) and TS9 male (plug) connectors, enabling connection of devices and cables that use different RF connector standards. Its small dimensions make it convenient for tight installation spaces, while the metal finish ensures basic mechanical durability and stable electrical contact.

Suitable for

Key specifications

How to use

Align the SMA jack with the corresponding SMA plug on the device or cable and secure it by hand until a snug connection is achieved. Insert the TS9 plug into the TS9 socket of the target device, ensuring correct orientation and a firm seating. Do not force connectors; if resistance is excessive, check alignment and connector types before applying pressure.

Recommendations

Use the adapter in dry, clean environments and avoid excessive bending or mechanical stress on connected cables. Ensure compatible connector genders and standards before use to prevent damage to device ports.
