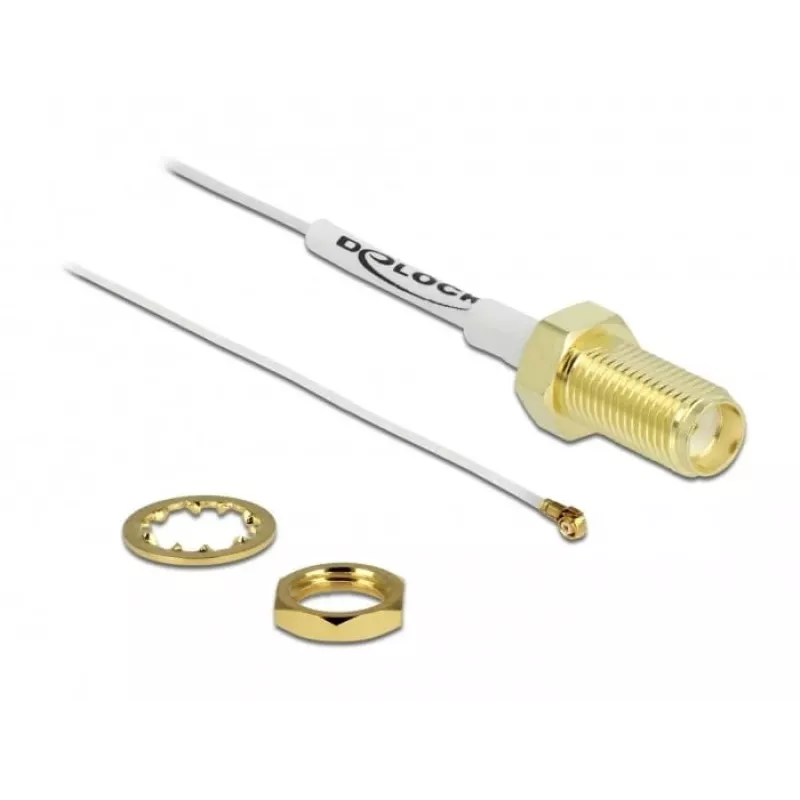

Antennekabel SMA-bus schotwand naar I-PEX Inc. MHF 4 stekker 0,81 20 cm wit

The Delock antenna cable provides a compact connection between radio frequency components. It features a SMA jack bulkhead connector on one end and an I-PEX Inc. MHF4 plug on the other, with a total length of 20 cm and a thread length of 10 mm. The cable is white and intended for use where a short, reliable RF link is required in confined or integrated setups.

Advantages

The cable offers a standard SMA jack bulkhead for secure mating and a low-profile I-PEX MHF4 plug for space-constrained RF modules. Its 20 cm length is suitable for short internal connections and the white jacket provides a discreet appearance. The design supports typical RF frequency ranges used in antenna connections, ensuring stable signal transfer between antenna and module.

Suitable for

• Connecting small RF modules to an external SMA antenna
• Internal antenna connections in routers, IoT devices, and wireless modules
• Compact or recessed installations requiring a bulkhead SMA interface

Key specifications

• Brand: DELOCK
• Model / MPN: 89052
• EAN: 4043619890521
• Connectors: SMA jack (bulkhead) to I-PEX Inc. MHF4 plug
• Length: 20 cm
• Thread length: 10 mm
• Color: White

How to use

Secure the SMA jack into the panel or enclosure bulkhead and tighten the connector to the specified hand or torque value for your application. Insert the I-PEX MHF4 plug carefully into the mating RF socket on the module until it snaps into place. Route the cable to avoid sharp bends; maintain gentle curves to preserve RF performance.

Recommendations

For reliable operation, avoid excessive bending and mechanical stress near the connectors. Confirm compatibility of the I-PEX MHF4 interface with your device and ensure the SMA bulkhead is mounted firmly to the panel to prevent movement that could affect the connection.
