DeLOCK D-Sub 9-polig bus IP67 waterdichte aansluiting zwart oranje

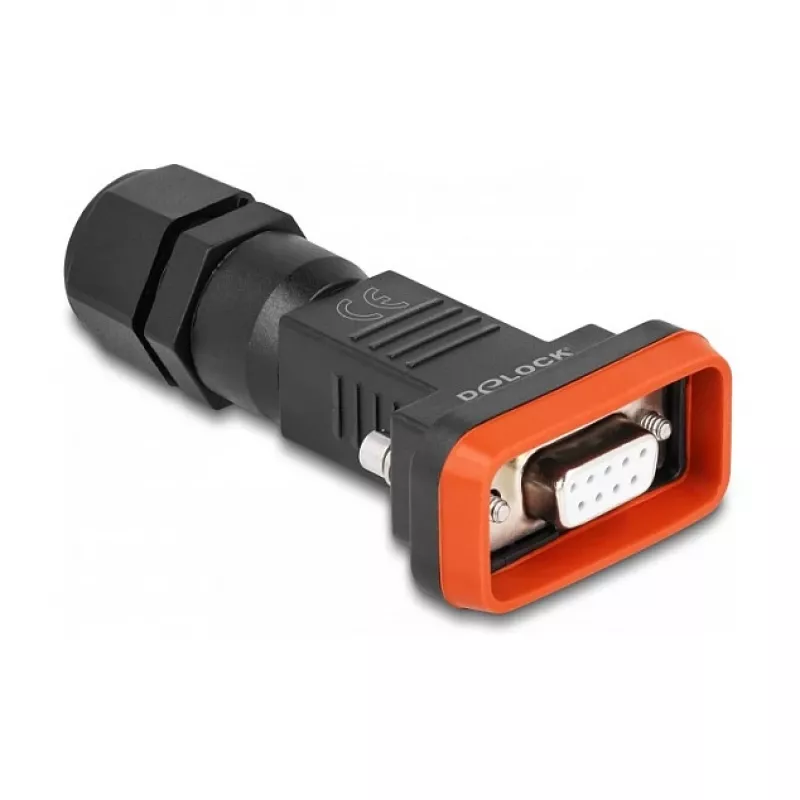

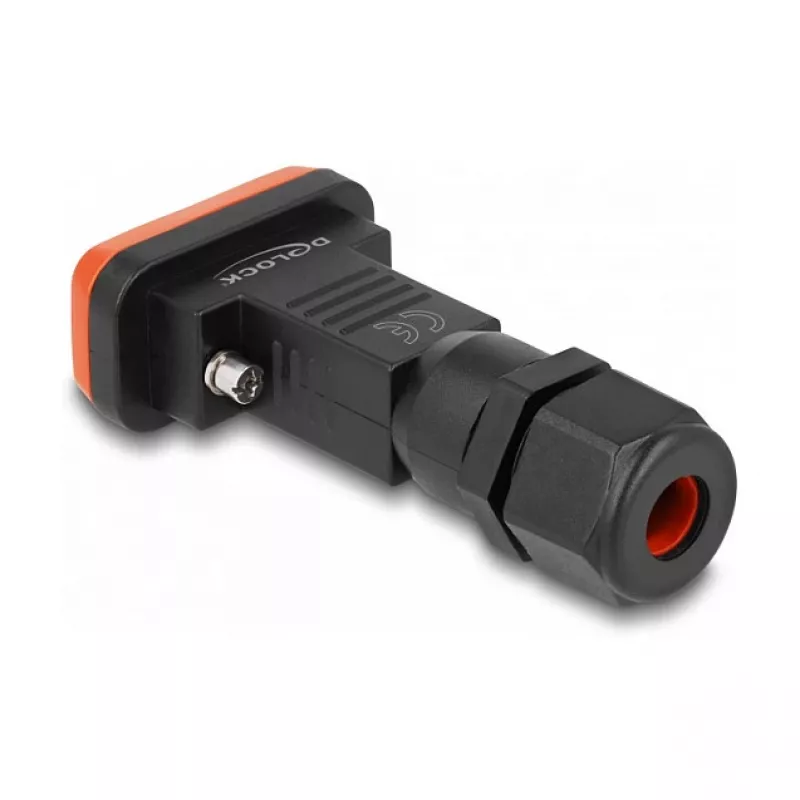

The DeLOCK D-Sub 9 pin female IP67 waterproof connector is a solder-type D-Sub interface designed for reliable cable assembly and use in demanding environments. The connector comes in black and orange and features an IP67-rated housing that protects soldered cable wires from moisture, making it suitable for installation in switch cabinets and other industrial locations. Its dimensions are approximately 80 mm (width) × 41 mm (depth) × 22 mm (height).

Advantages

The IP67-rated housing provides dust-tight and waterproof protection for the soldered connections. The design allows the cable to be fed through the housing and soldered directly to the 9-pin D-Sub contacts, then mounted together with the connector into the housing for a secure assembly. The compact dimensions and robust construction support reliable operation in industrial and cabinet-mounted applications.

Suitable for

• Cable assembly and custom cable harnesses
• Switch cabinet connections and industrial control panels
• Applications requiring dust and water protection (IP67)

Key specifications

• Connector type: D-Sub 9 pin (female)
• Contacts: 9 soldering pins
• Protection rating: IP67 (housing)
• Product colour: Black, Orange
• Dimensions (W × D × H): 80 × 41 × 22 mm (approx.)
• Brand: DELOCK
• Manufacturer part number (MPN): 87803
• EAN: 4043619878031

How to use

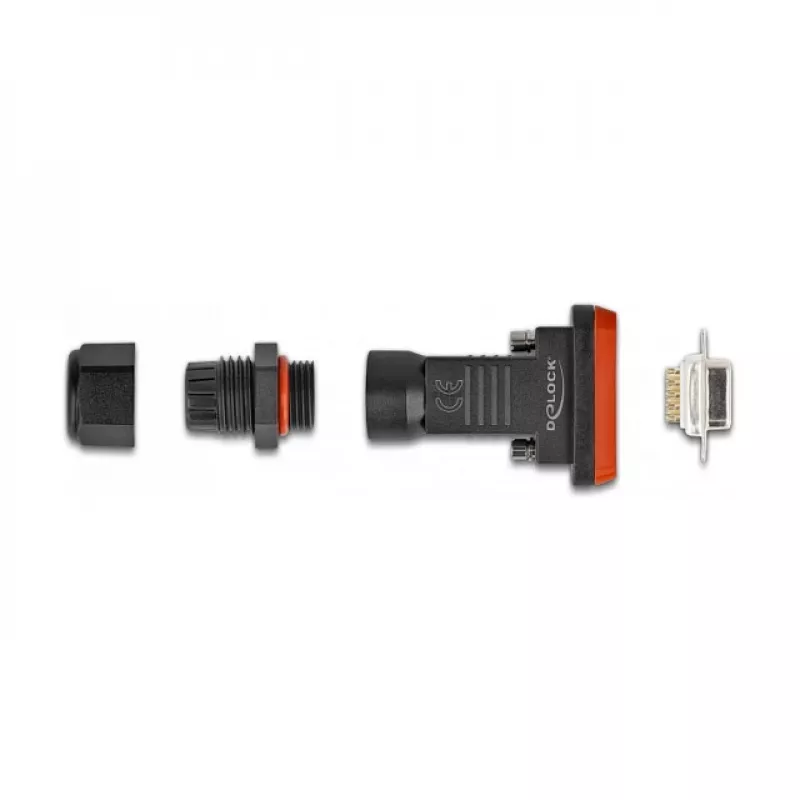

Feed the prepared cable through the waterproof housing and solder each conductor to the corresponding 9 soldering pins of the D-Sub female connector. After soldering, position the connector and soldered wires inside the housing and secure them according to the housing assembly method so that the connector is mounted together with the cable inside the IP67 enclosure. Tighten any clamps or screws provided by the housing to ensure a dust-tight and watertight seal before installing the assembled connector in a switch cabinet or panel.

Recommendations

Use appropriately sized cables and correct soldering technique to ensure mechanical stability and reliable electrical contact. Verify the housing seals and fastenings after assembly to maintain IP67 protection. For installations in cabinets, allow space for connector mating and service access.
