DeLOCK D-type module RJ45 bus om te solderen zwart bus 25 mm

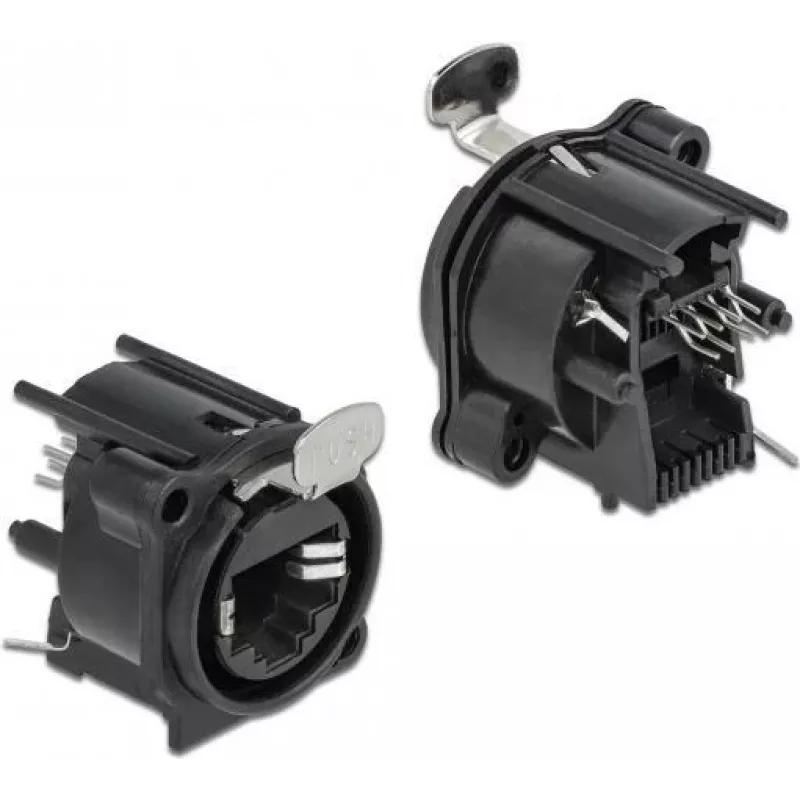

The DeLOCK D-Type Module RJ45 jack is a compact black female connector designed for solder connection and installation into panels or cases with D-type openings intended for XLR jacks. With a cubic 25 mm size, it is suitable for custom installations where a reliable RJ45 network interface must be integrated into professional audio or equipment racks.

Advantages

The module offers a standardized RJ45 female socket adapted to a D-type panel footprint, allowing easy replacement or addition of network ports in devices with XLR-style cutouts. Its solder-connection design provides a secure, low-profile electrical connection and the black finish blends with common professional equipment panels.

Suitable for

• Integrating Ethernet/network interfaces into audio racks and equipment enclosures
• Custom panel builds or retrofits where D-type/XLR openings are present
• Small-scale electronics projects requiring a compact RJ45 panel connector

Key specifications

• Brand: DELOCK
• Model / MPN: 87822
• EAN: 4043619878222
• Connector: RJ45 female (solder connection)
• Mounting type: D-type module for panel/case openings (fits XLR-style cutouts)
• Dimensions: 25 mm x 25 mm x 25 mm
• Colour: Black

How to use

Install the module into a compatible D-type or XLR-style opening in the panel or case so the RJ45 socket is accessible from the front. Secure the module according to the panel design, then solder the network wires to the appropriate pads or pins on the module following standard RJ45 wiring conventions. After soldering, verify connections and cable continuity before final assembly.
