DeLOCK interne M.2-adapter 90889 PCIe 5.0 rood roestvrijstaal

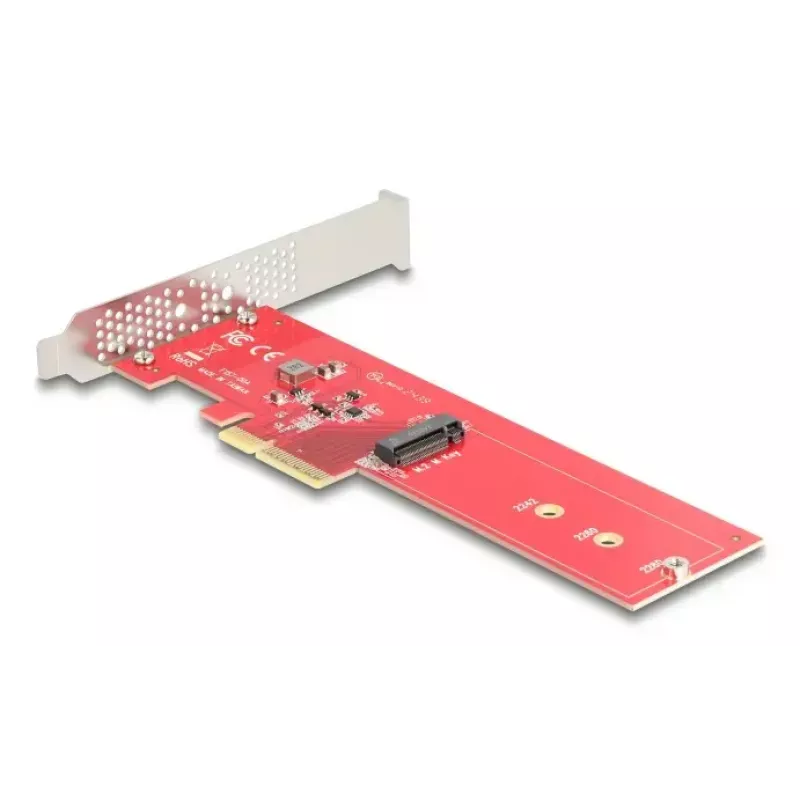

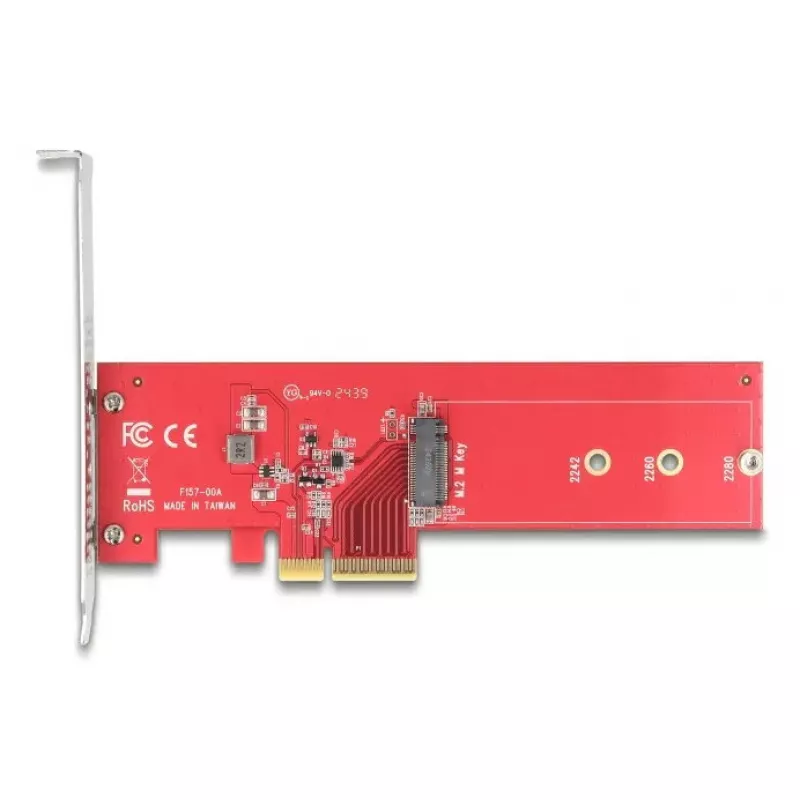

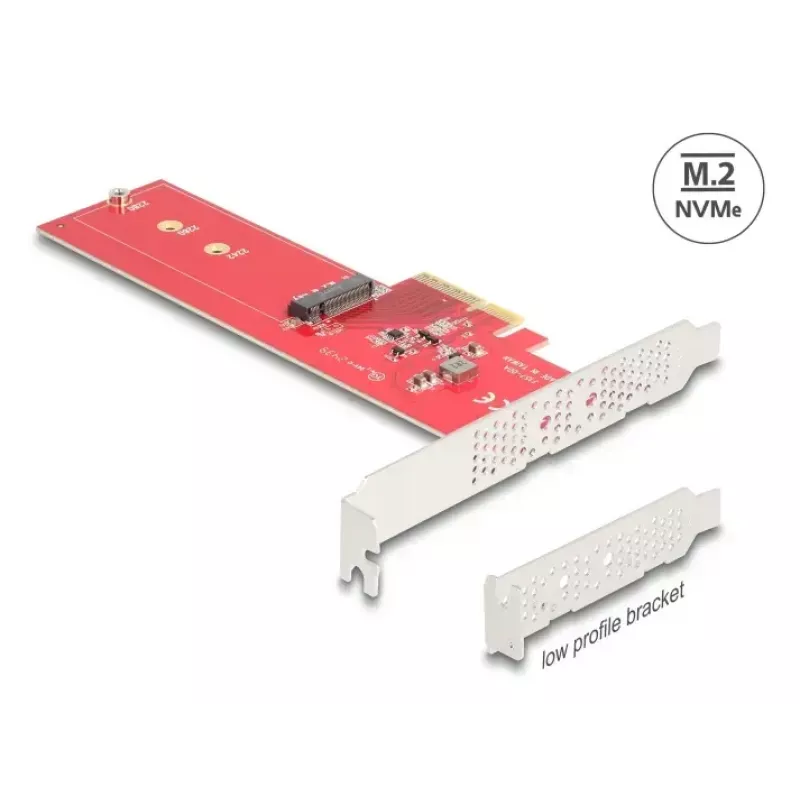

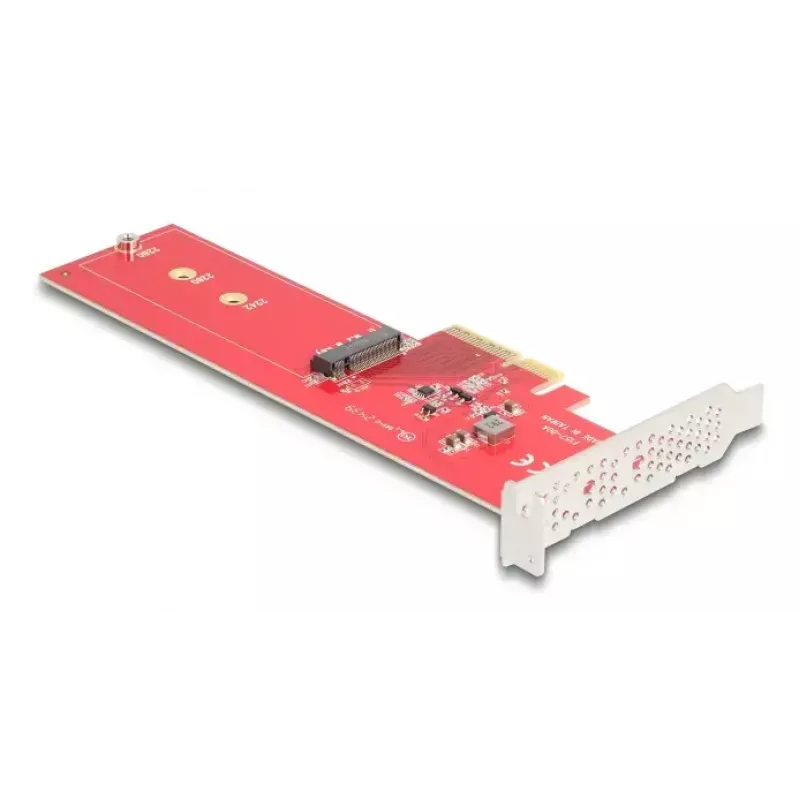

The DeLOCK Internal M.2 Adapter 90889 is a PCI Express expansion card that provides a single M.2 slot for NVMe SSDs in 2280, 2260 or 2242 form factors. Designed for internal installation, the adapter supports PCIe 5.0 and is finished in red stainless steel to integrate with a variety of desktop systems. It accepts one M.2 module and acts as a PCIe NVMe adapter to add high-performance storage to a compatible PC.

Advantages

The card supports PCIe 5.0, offering up to 32 GT/s per lane for significantly increased bandwidth compared with PCIe 4.0, which enables higher transfer rates for NVMe drives. Its M.2 socket is compatible with 2280, 2260 and 2242 modules, allowing flexible SSD sizing. The red stainless steel design provides a durable, visually distinctive finish suitable for internal desktop builds. The adapter is compliant with standard PCIe host interfaces and fits a standard PCIe slot.

Suitable for

Key specifications

How to use

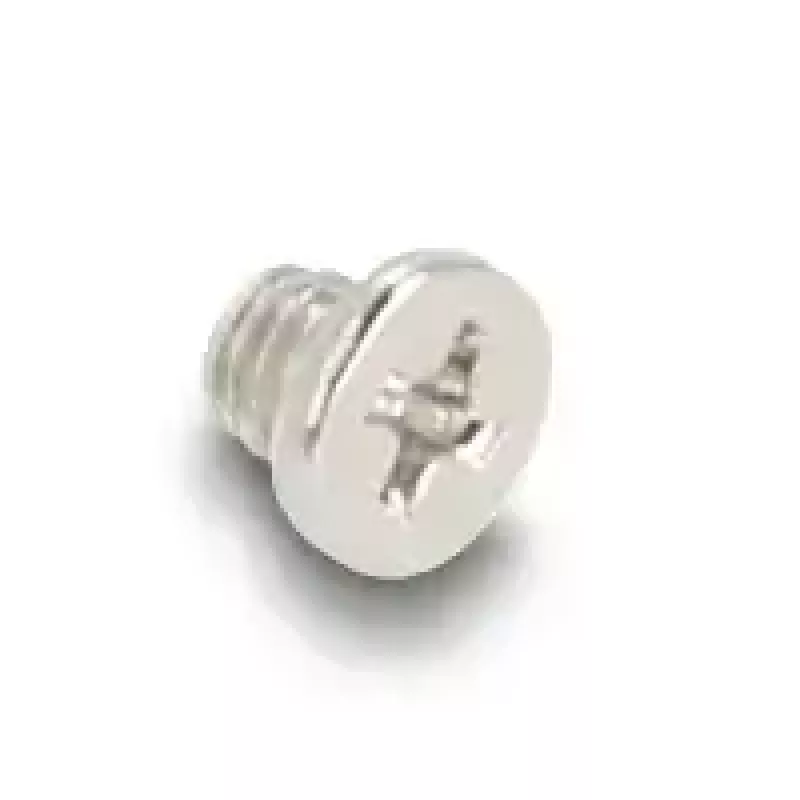

Power off the PC and unplug it from the mains. Open the computer case and insert the adapter into an available PCIe slot on the motherboard. Secure the card to the chassis using the slot bracket. Insert a compatible M.2 NVMe SSD (2280, 2260 or 2242) into the M.2 slot at an angle, press it down and fasten it with the appropriate screw or standoff provided by the motherboard or adapter. Close the case, reconnect power and boot the system. Configure the new drive in the operating system or BIOS/UEFI as required.

Recommendations

For optimal performance with PCIe 5.0 NVMe SSDs, use a motherboard and CPU that support PCIe 5.0. Ensure adequate cooling for high-performance NVMe drives and verify BIOS/UEFI settings for NVMe support. Install the latest firmware and drivers for the SSD and update the system BIOS if necessary.
