DeLOCK Keystone LSA set RJ45 RJ11 Cat.6 zwart cliphouder

The DeLOCK Keystone LSA Set RJ45 RJ11 Cat.6 black clip-on holder is an accessory for network installations that includes compatible Keystone modules and a clip-on holder. The flat construction holder is designed to support placement of RJ45 and RJ11 Keystone modules to simplify cable termination on insulation displacement connectors. Three pieces are included per pack, and the package is suitable for use with the DeLOCK laying tool (model 86152) to contact conductors and trim protruding cable ends.

Advantages

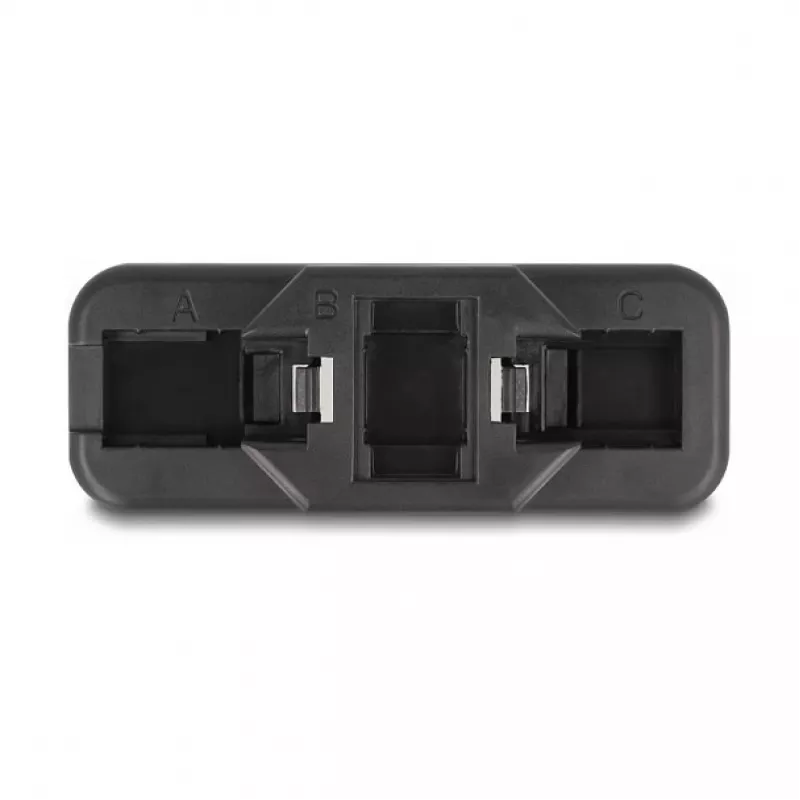

The clip-on holder provides a secure mounting platform for Keystone modules and keeps modules aligned during termination. Flat construction reduces required installation depth. Suitable RJ45 and RJ11 Keystone modules are included with the set, and the holder is compatible with the DeLOCK laying tool (86152) for contacting and cutting cable ends.

Suitable for

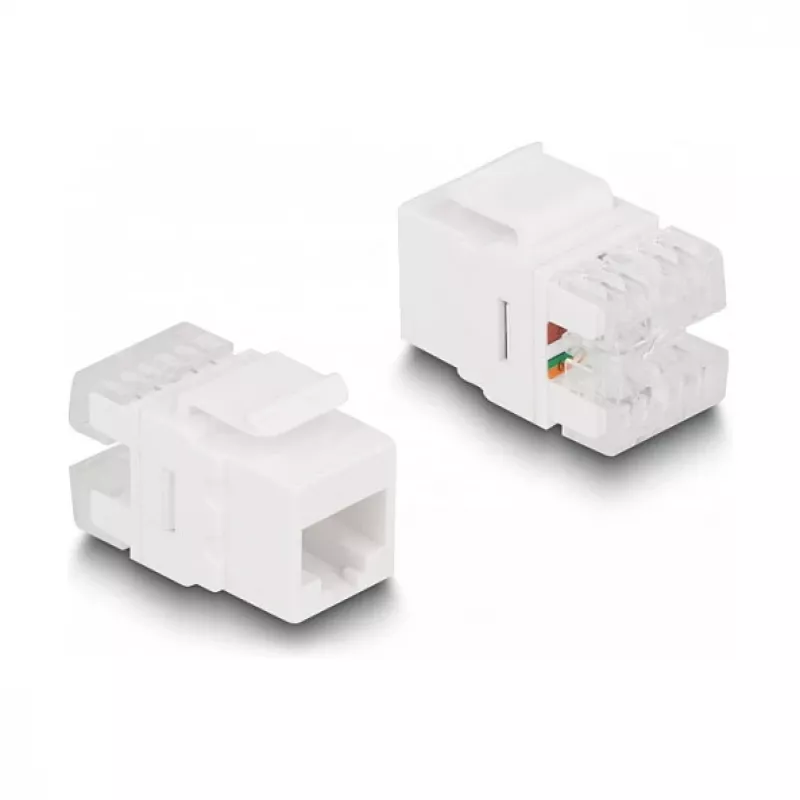

• Terminating Cat.6 network cables with RJ45 Keystone modules

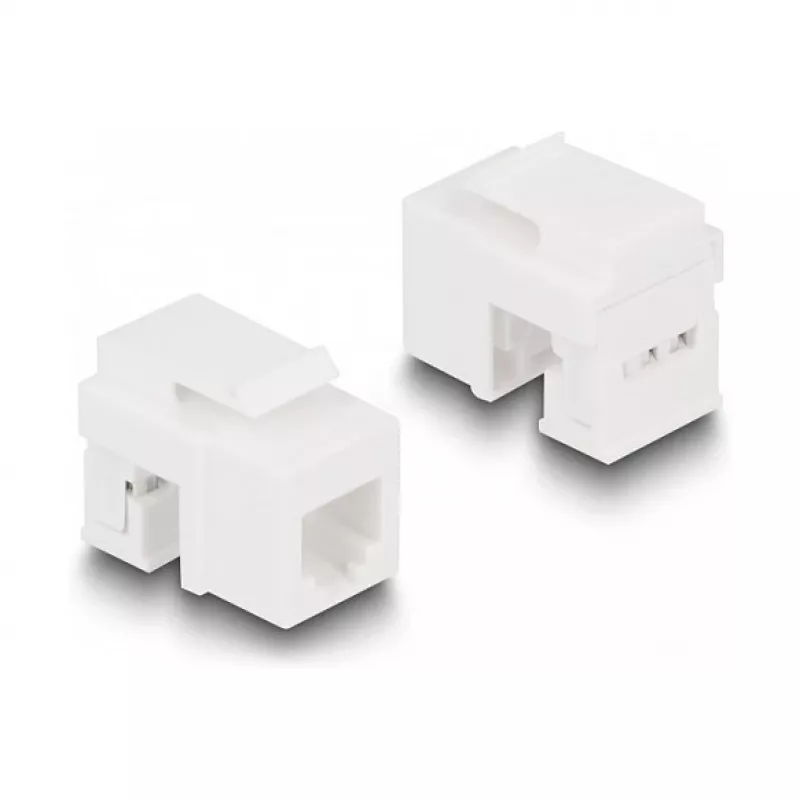

• Telephone or low-speed data terminations using RJ11 Keystone modules
• Small patch panel, wall plate or custom enclosure installations requiring a compact holder

Key specifications

• Brand: DELOCK
• Model / MPN: 87104
• EAN: 4043619871049
• Contents: 3× clip-on holders with compatible RJ45 and RJ11 Keystone modules
• Construction: flat
• Color: black
• Compatibility: works with DeLOCK laying tool 86152 for contacting and trimming conductors
• Category: Accessories for networks

How to use

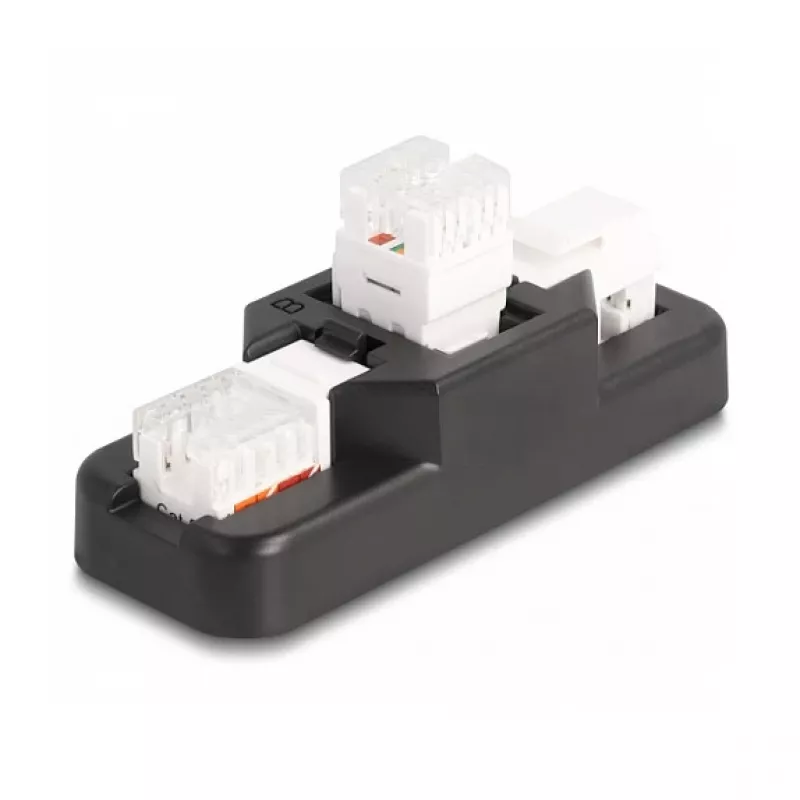

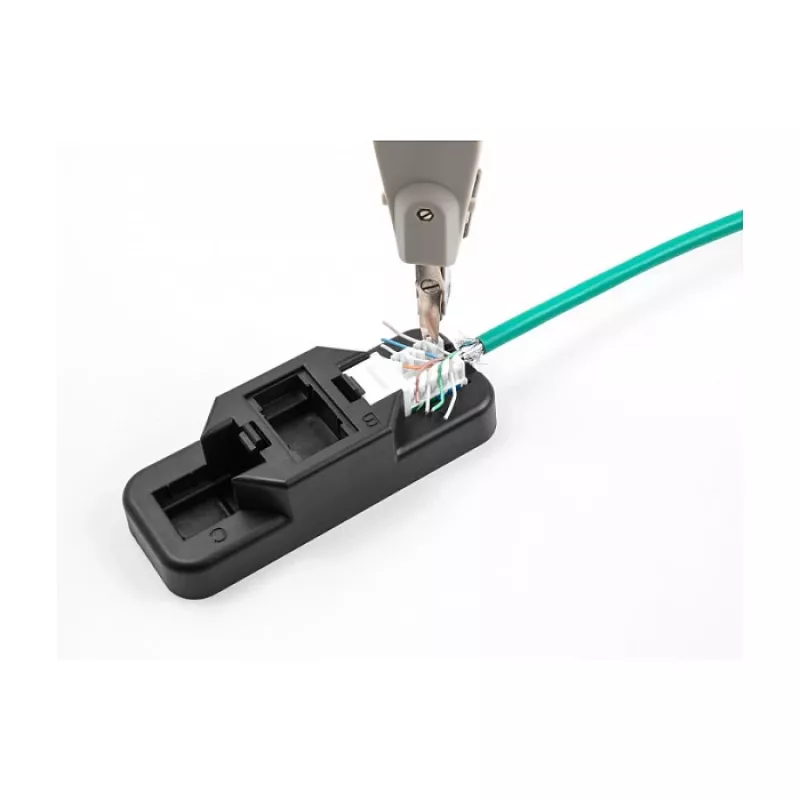

Insert the provided RJ45 or RJ11 Keystone modules into the clip-on holder until they snap into place. Route the cable conductors into the insulation displacement connectors according to the module wiring diagram. Use the DeLOCK laying tool (86152) to press the conductors into the contacts and simultaneously trim any protruding cable ends. Once terminated, clip the holder into the intended panel, wall plate or enclosure mounting point.

Recommendations

Use appropriate cable preparation (strip sheath to the recommended length) and follow standard wiring color codes for RJ45 or RJ11 to ensure reliable connections. For best results use the DeLOCK laying tool 86152 designed for this holder and the included Keystone modules.
