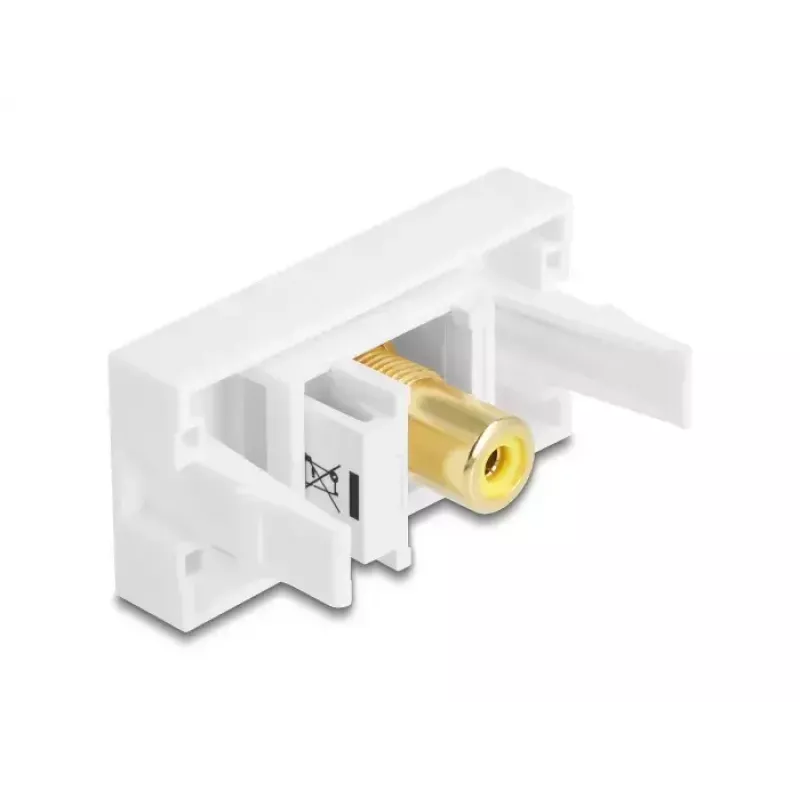

DeLOCK Keystone-module 90859 cinch-aansluiting wit geel

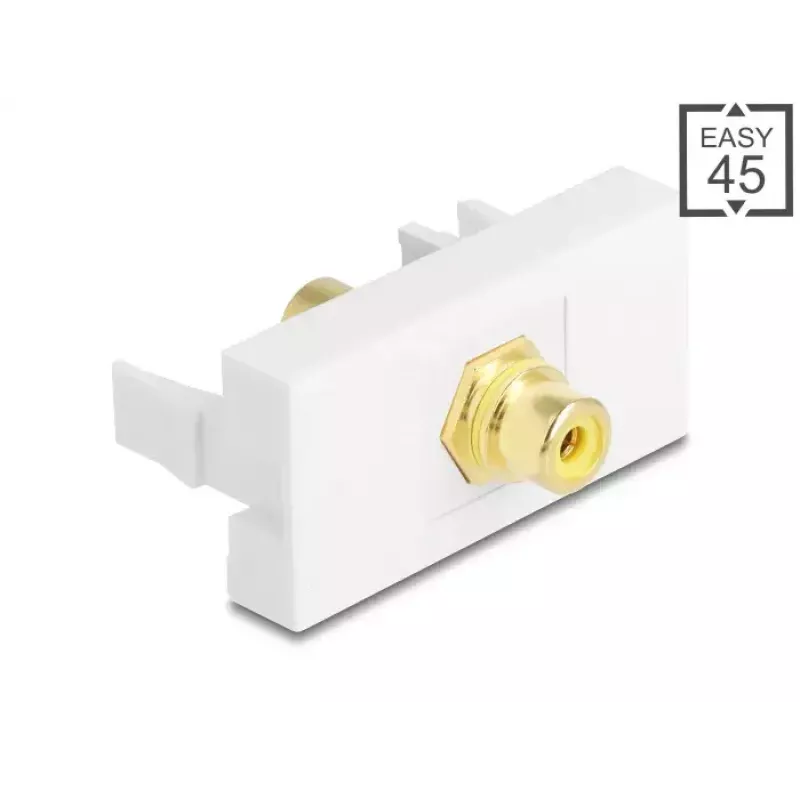

The DeLOCK Keystone Module 90859 provides RCA audio/video connectors in white and yellow and is compatible with the Delock Easy 45 modular system. The module snaps into the Easy 45 frame for a secure fit and can be removed if needed. With dimensions of 22.5 mm (width) x 45 mm (depth) x 32 mm (height), this keystone module is intended for audio and video connections and integrates with standard module holders and cable ducts.

Advantages

The module offers standardized Easy 45 compatibility for flexible system integration and a simple snap-in mechanism for reliable mounting and easy removal. Its RCA connectors support common audio/video devices and the compact keystone form factor allows installation in various holders and ducts.

Suitable for

Key specifications

How to use

Insert the module into a compatible Easy 45 frame or keystone holder until the snap-in mechanism clicks to secure it. Connect RCA cables to the yellow and white connectors as required for composite video and audio. To remove the module, release the snap-in latch and pull the module out of the frame.

Recommendations

For optimal signal quality, use good‑quality RCA cables and ensure connectors are fully seated. Install the module in a compatible Easy 45 frame or approved keystone holder and avoid excessive bending of cables near the connector.
