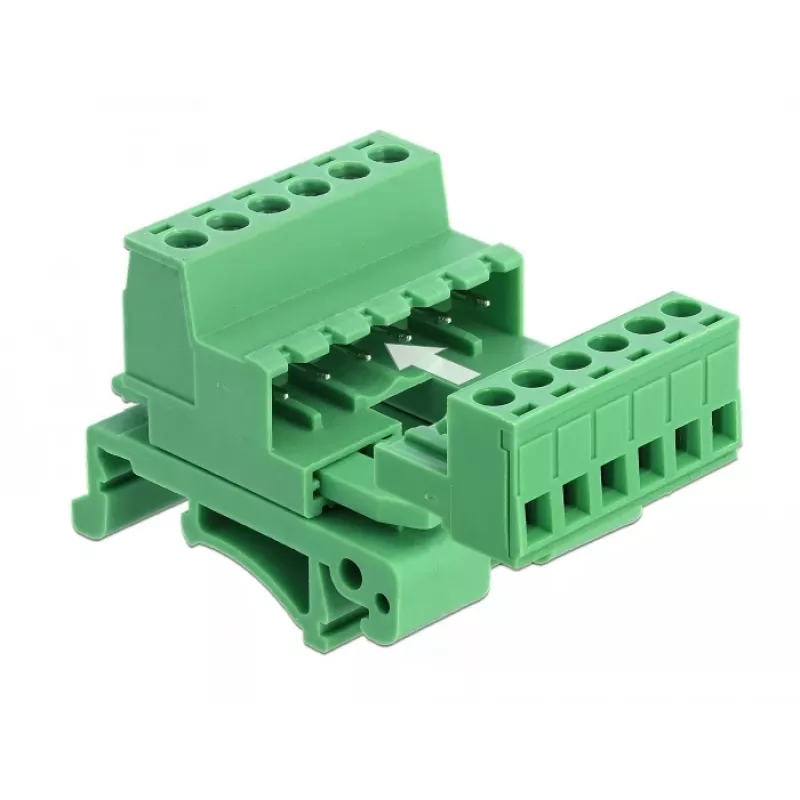

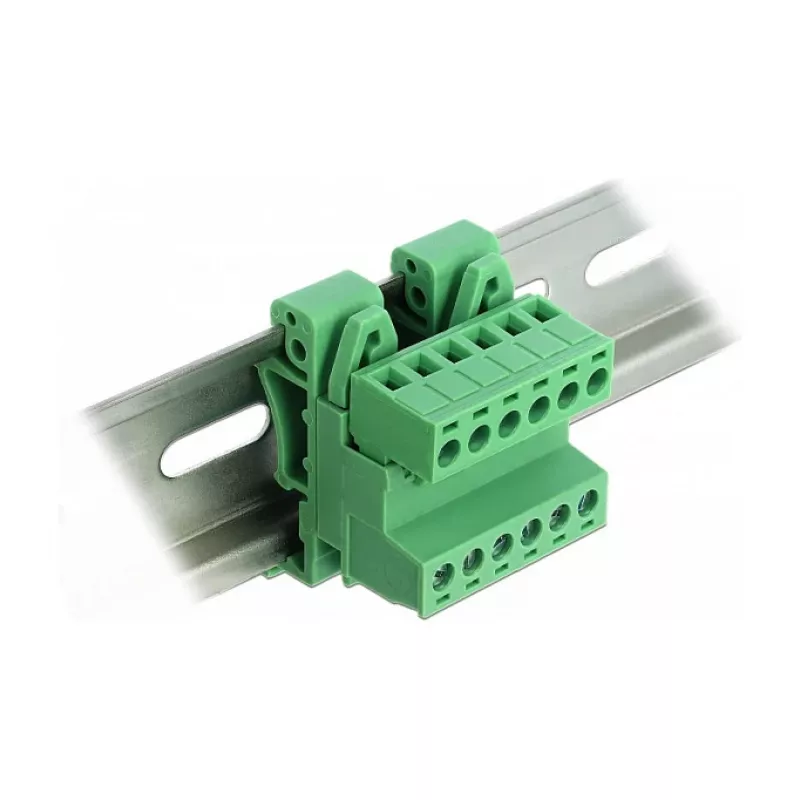

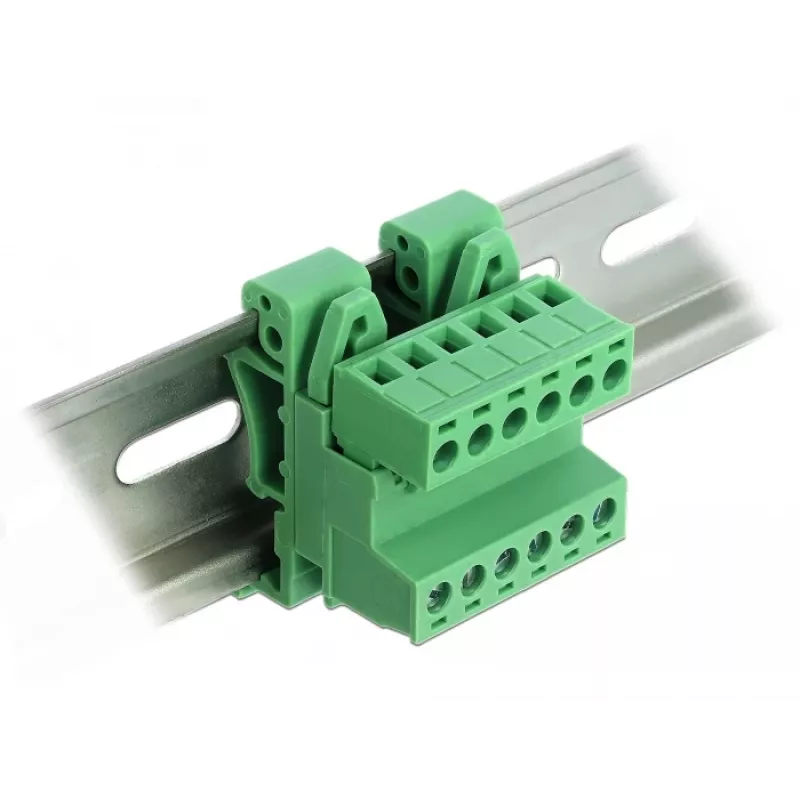

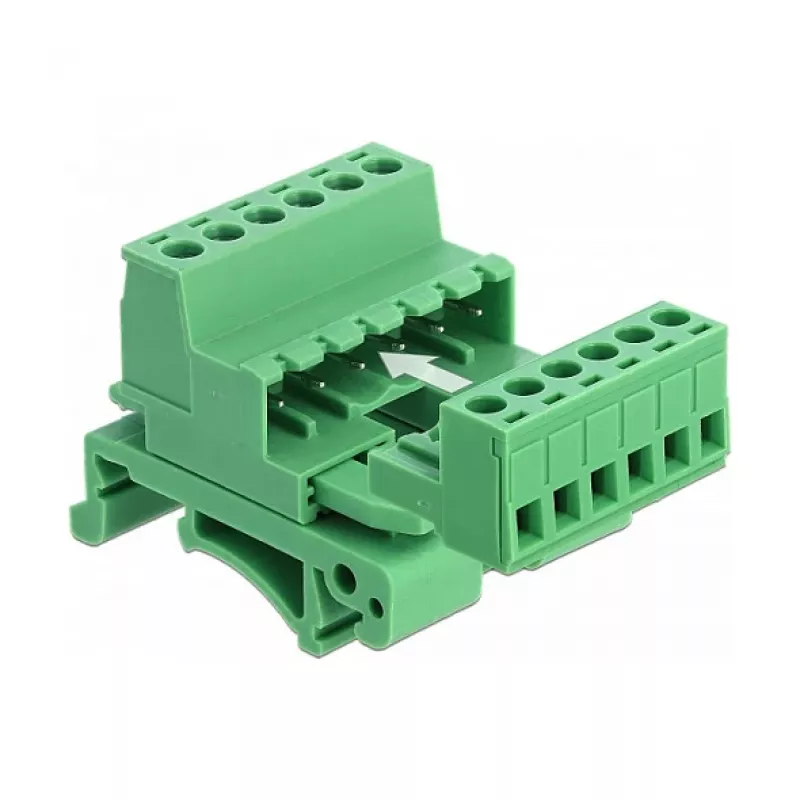

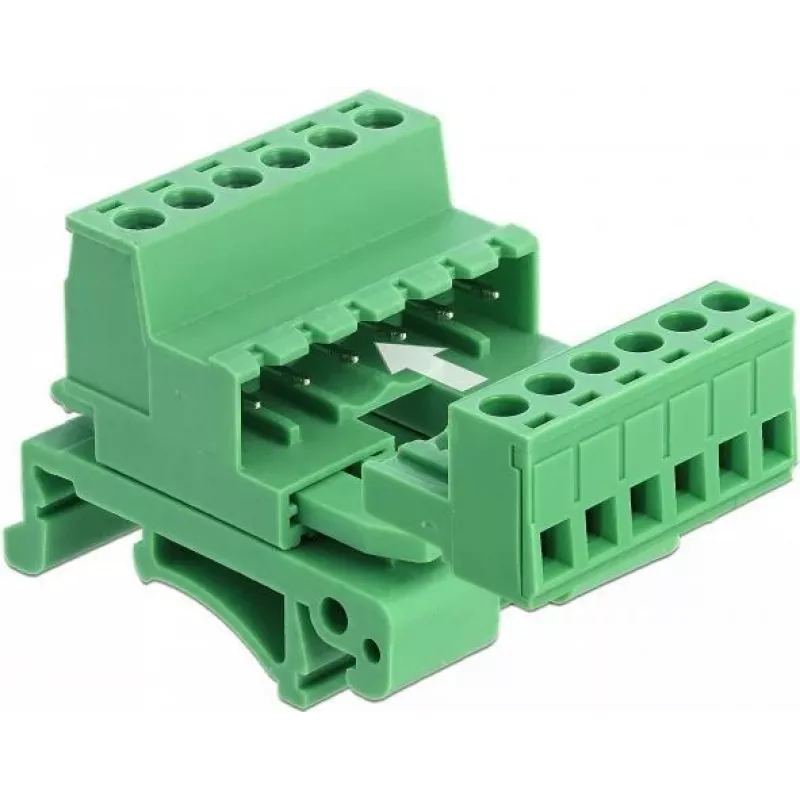

Delock klemmenblokset voor DIN-rail 6-polig met 5,08 mm rastermaat haaks

This terminal block set offers a reliable connection solution for DIN rail mounting with a 6-pin configuration and 5.08 mm pitch. The angled orientation simplifies wiring in tight spaces, while the green PA66 housing provides durability and clear identification.

Highlights

• 6-pin terminal block set for DIN rail mounting
• 5.08 mm pin pitch with angled connector orientation
• Rated for 12 A and 300 V
• Accepts 28 - 12 AWG wire
• Includes 5 male and 5 female connectors

In daily use

Designed for industrial control panels and automation systems, this set simplifies field wiring. The screw terminals with M2.5 screws and 0.4 Nm torque ensure secure connections, while the wide operating temperature range (-40 °C to 105 °C) suits harsh environments.

Full specifications

• Product type: Terminal block set
• Mounting type: DIN rail (Hutschiene)
• Number of poles: 6 pin
• Pin pitch: 5.08 mm
• Connector orientation: Angled
• Current rating: 12 A
• Voltage rating: 300 V
• Wire gauge (solid/stranded): 28 - 12 AWG
• Wire stripping length: 7 mm
• Housing material: PA66 (Polyamide 66)
• Contact material: Brass, tin-plated
• Operating temperature: -40 °C to 105 °C
• Screw type: M2.5
• Torque: 0.4 Nm
• Insulation resistance: > 500 MΩ
• Withstanding voltage: AC 2000 V / 1 min
• Colour: Green
• Set contents: 5x male, 5x female connectors

Final note

A practical choice for secure and organized DIN rail terminations in industrial settings.
